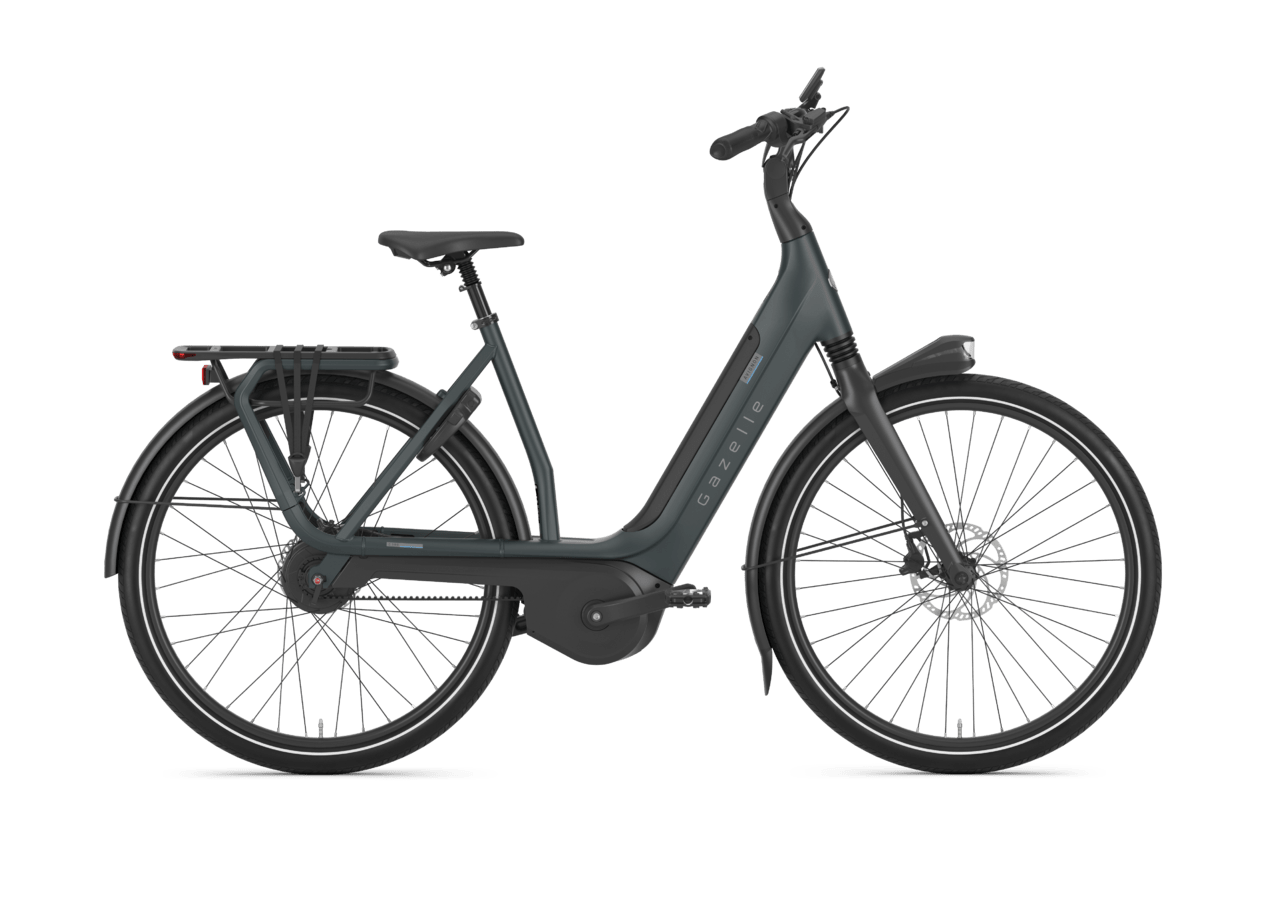

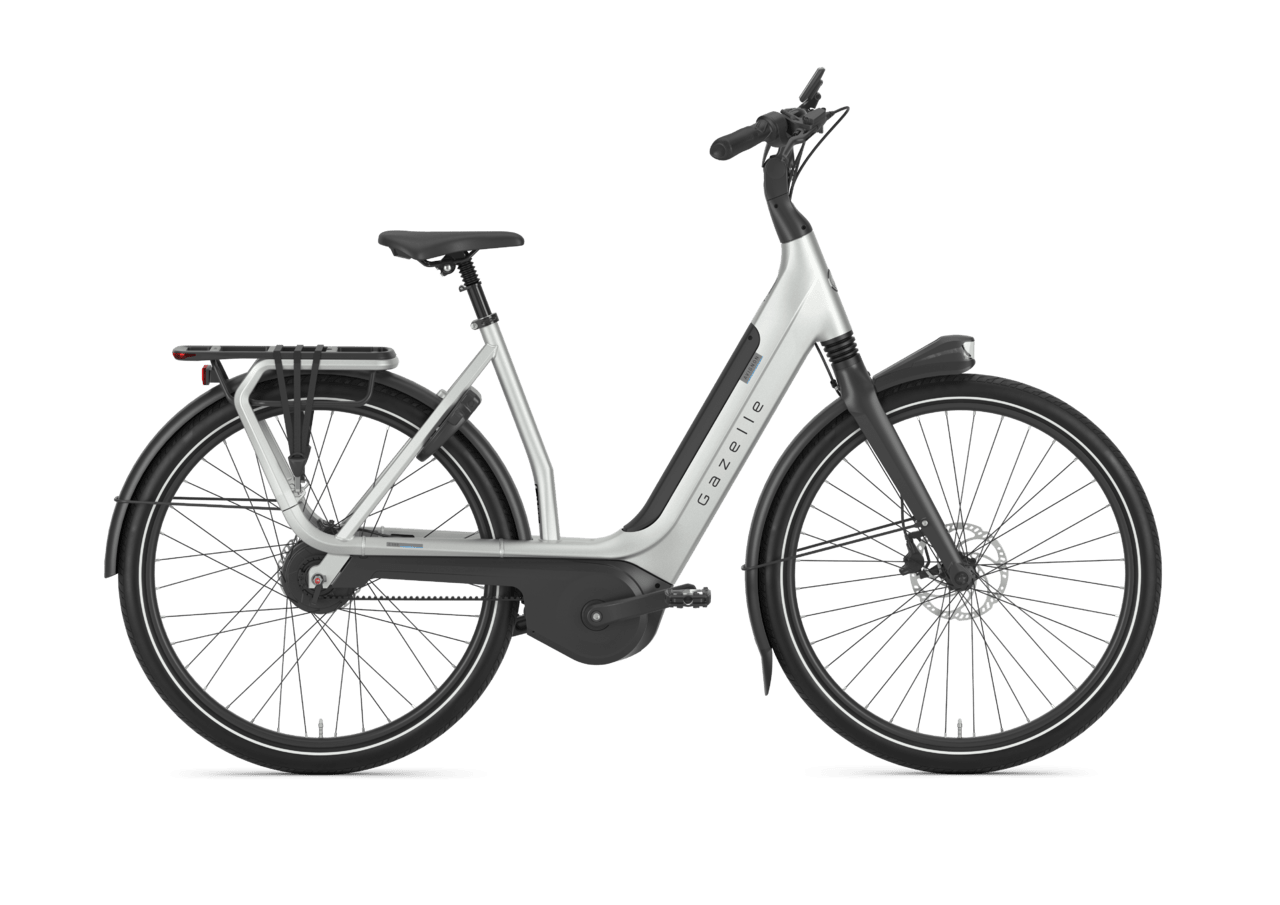

Gazelle, Avignon C380
Avignon C380
"Gazelle's most comfortable ebike"
Ride relaxed and upright with the Gazelle Avignon C380 and enjoy its many other comfortable features. Choosing this bike is an easy decision.
Gazelle Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory, where we work everyday to create the perfect Gazelle for you. |
Efficient, integrated power source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike. |
|
Discover new places with Bosch's quiet yet powerful motor The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist. |
|
Always in the right gear Enviolo's robust, stepless shifting gear hub lets you switch between gears without going through the intermediate gears — whether you are pedaling or stationary. The drive system uses a Gates CDX belt. It quietly does its job and is low maintenance. Nice and convenient! |
|
Integrated LED lighting The daytime running lights on the Avignon C380 HMB do their job, day and night. The powerful 70 lux front light is integrated into the mudguard. And with cut-outs in the carrier for the rear light, you are easily visible not only from behind but also from the sides. |
|
Always in control The Avignon C380 HMB has extra-wide tires for enhanced stability and comfort. The Magura disc brakes guarantee excellent braking power that is easy to control in all conditions. With the large brake levers, that goes without saying; you are always in control. |
|
Powerful, mid-drive motor The Avignon C380 HMB features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. And for longer rides, this Avignon boasts a battery capacity of 625 Wh to extend your range. |
Battery Features
Watt-Hours |
625 Wh |
Capacity |
16.7 Ah |
Battery Charging Time |
4h 54m (4A) |
Battery Position |
Integrated in the frame |
Brand |
Bosch |
Model |
Intube |
Voltage |
36V |
Eco |
177 km |
Tour |
104.6 km |
Auto |
80.4 km |
Turbo |
72.4 km |
Bike Specification
Color Options |
Teal Gray Matte Pebble Gray Matte |
Fork Suspension |
Mono Integrated |
System Model |
Performance Line |
Motor |
Bosch Smart System Performance Line |
Engine Position |
Mid |
Maximum Speed of Ebike |
25 kph 20 mph |
Maximum Torque |
75 N-m |
Weight |
28.6 kgs |
Maximum Total Weight |
130 kg |
Cycling Position |
Upright |
Frame |
Stable aluminium frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh) |
Frame Material |
Aluminum |
Cockpit Cable |
Integrated |
Frame Shape |
Low-Step |
Frame Size |
46, 53, 57 |
Fork |
Aluminium, binnenbalhoofd vering, lichtgewicht |
Front Wheel |
46 |
Rear Wheel |
22 |
Front and Rear Rim |
Ryde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance |
Front Hub |
Shimano |
Rear Hub |
Enviolo Trekking Manual, continuously variable gears |
Wheel Size |
28" |
Wheels Tire Front Etrto |
55-622 |
Front and Rear Tire |
Scalato Mondano |
Brand Shifters |
Enviolo |
Number of Gears |
Stepless |
Front Chainwheel |
46 |
Gear Type |
Hub |
Drivetrain |
Belt |
Front Brake Type |
Disc Brake |
Brake System Code |
SE |
Front Brake Brand |
Magura |
Primary Rear Brake Model |
MT-C4 |
Front Brake |
Magurt MT-C4, 180mm |
Rear Brake |
Magura MT-C4, 160mm |
Rear Brake Lever |
MaguraCT4 |
Handlebar |
Gazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort |
Stem |
Adjustable |
Cockpit Handlebar Grip Brand |
Gazelle |
Saddle |
Selle Royal Essenza Plus Gel |
Front Light |
Gazelle Fendervision |
Front Light Lux |
70 |
Rear Light |
Spanninga Commuter Glow |
Front and Rear Light Energy Source |
Battery |
Display |
Bosch Intuvia 100, Removable |
Ebike Walk Assist |
Yes |
Type of Display |
LCD |
Lock |
Abus |
Kickstand |
Ursus Mooi |
Rear Carrie |
Aluminum |
Maximum Load of Rear Carrier |
27 kg |
