Gazelle, Arroyo C5 Elite
Arroyo C5 Elite
"Comfort and sport in one bike"
Touring is a pleasure with the Gazelle Arroyo C5 HMB Elite. You can get on and off easily, sit upright comfortably, and have a good view of your surroundings. Thanks to the powerful motor, you can stop and go wherever you want.
Gazelle Craftsmanship
|
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you. |
|

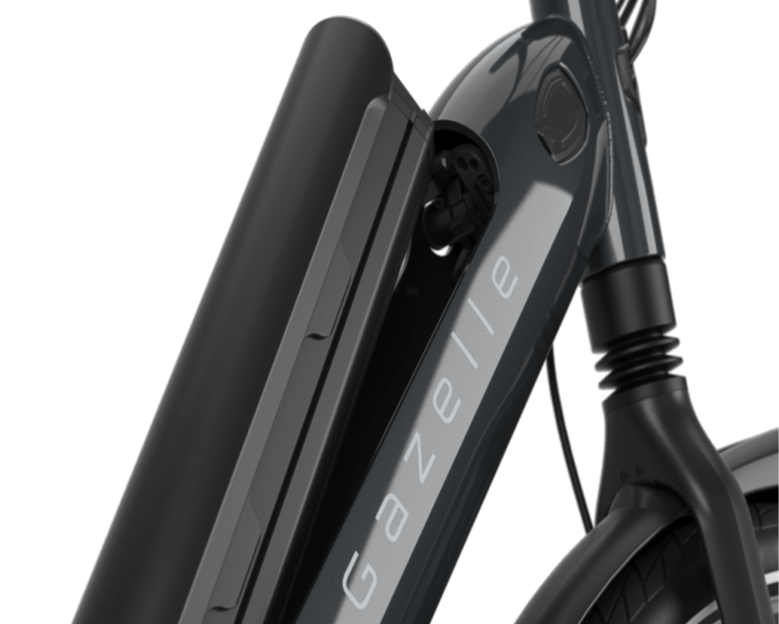

Efficient, integrated power source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike. |
 |
 |
Discover new places with Bosch's quiet yet powerful motor The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist. |
|
Powerful, mid-drive motor The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame, lowering the center of gravity to improve stability, while providing a sleek look. |
 |
 |

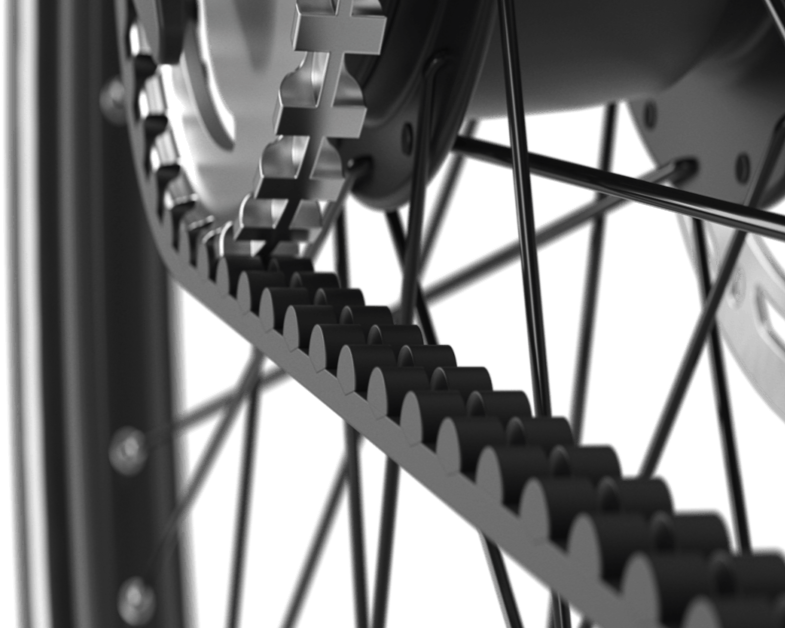

Belt drive: quiet and low maintenance A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet. |
|

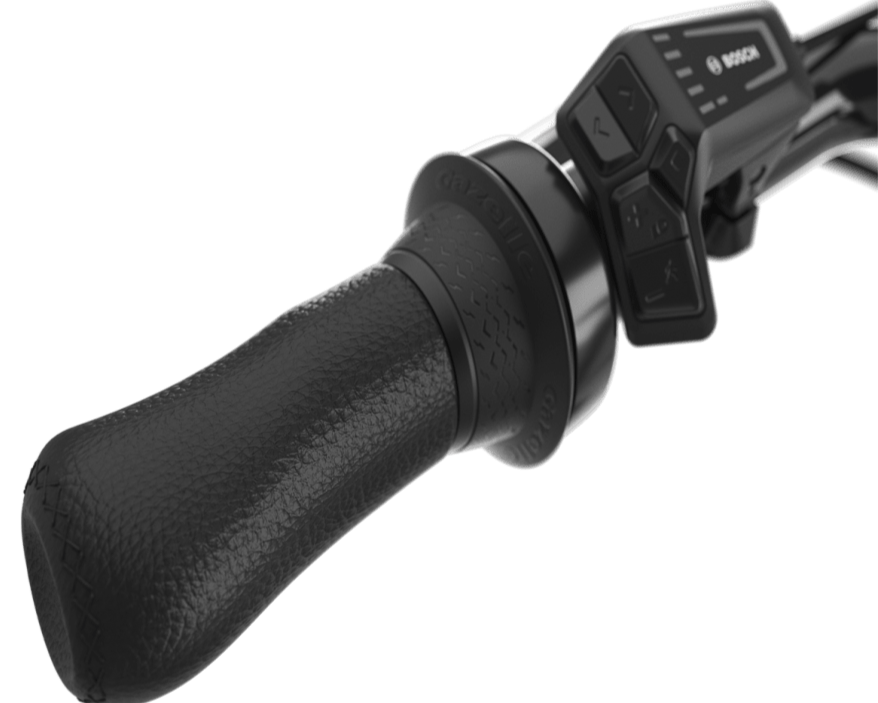

Luxurious finish, more comfort Details make the difference. The Arroyo C5 HMB Elite has delightful details including leather handlebar grips that fit nicely in the hand and also give the ebike a luxurious touch. The gel seat also improves the comfort level and with attractive appearance. This saddle absorbs bumps and vibrations, easing the impact of the road, even on longer rides. |
 |
 |

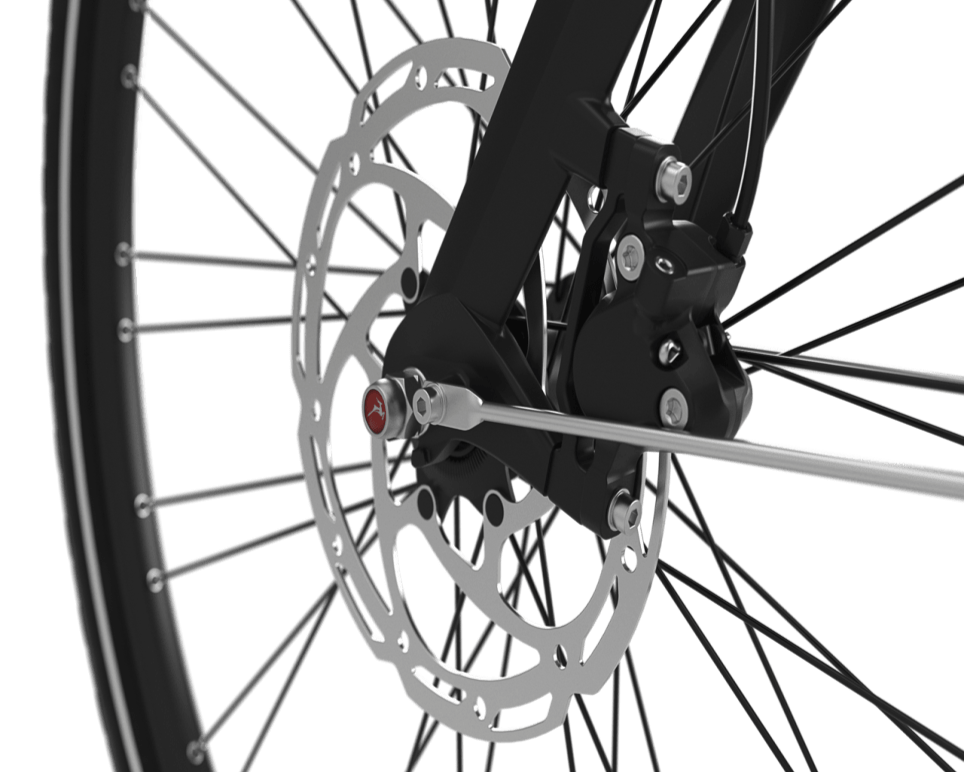

Powerful and controlled braking If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining. |
Battery Features
|
Watt-Hours |
500 Wh |
|
Capacity |
13.4 Ah |
|
Battery Charging Time |
7h 30m (2A) |
|
Battery Position |
Integrated in the frame |
|
Brand |
Bosch |
|
Model |
Intube |
|
Voltage |
36V |
|
Eco |
128.7 km |
|
Tour |
80.4 km |
|
Auto |
56.3 km |
|
Turbo |
48.2 km |
Bike Specification
|
Color Options |
Anthracite Grey Gloss Petrol Blue Gloss |
|
Fork Suspension |
Mono Integrated |
|
System Model |
Performance Line |
|
Motor |
Bosch Smart System Performance Line |
|
Engine Position |
Mid |
|
Maximum Speed of Ebike |
25 kph 20 mph |
|
Maximum Torque |
75 N-m |
|
Weight |
24.4 kgs |
|
Maximum Total Weight |
130 kg |
|
Cycling Position |
Upright |
|
Frame |
Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables. |
|
Frame Material |
Aluminum |
|
Frame Shape |
Low-Step |
|
Frame Size |
46, 53, 57 |
|
Fork Description |
Binnenbalhoofd vering, Aluminum |
|
Front Wheel |
46, Gates |
|
Rear Wheel |
34, Gates |
|
Front and Rear Rim |
Rodi Viper, Double-walled aluminium for extra strong and efficient cycling performance |
|
Front Hub |
Shimano |
|
Rear Hub |
Coasterbrake, Shimano Nexus 5 |
|
Wheel Size |
28" |
|
Wheels Tire Front Etrto |
47-622 |
|
Front and Rear Tire |
Schwalbe Energizer Active Plus |
|
Brand Shifters |
Shimano |
|
Number of Gears |
5 |
|
Front Chainwheel |
46 |
|
Gear Type |
Hub |
|
Drivetrain |
Belt |
|
Front Brake Type |
Hydraulic Disc Brake |
|
Brake System Code |
S5 |
|
Front Brake Brand |
Tektro |
|
Primary Rear Brake Model |
HD-T280 |
|
Front Brake |
Tektro HD-T280, 180mm |
|
Rear Brake |
Tektro HD-T280, 160mm |
|
Rear Brake Lever |
Tektro |
|
Handlebar |
Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort |
|
Stem |
Adjustable |
|
Cockpit Handlebar Grip Brand |
Gazelle |
|
Saddle |
Selle Royal Essenza Plus |
|
Front Light |
Gazelle Fendervision |
|
Front Light Lux |
50 |
|
Rear Light |
Spanninga Brasa |
|
Front and Rear Light Energy Source |
Battery |
|
Display |
Bosch Intuvia 100, Removable |
|
Ebike Walk Assist |
Yes |
|
Type of Display |
LCDc |
|
Lock |
AXA |
|
Kickstand |
Ursus Mooi |
|
Luggage Rack |
Aluminum MIK HD System Carrier |
|
Maximum Load of Rear Carrier |
27 kg |
Display
Purion (for C7 and C8) and Intuvia 100 (for C5) are the displays for Arroyo E-Bikes.
Powerful and Controlled Braking
If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
Belt drive: quiet and low maintenance
A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet.

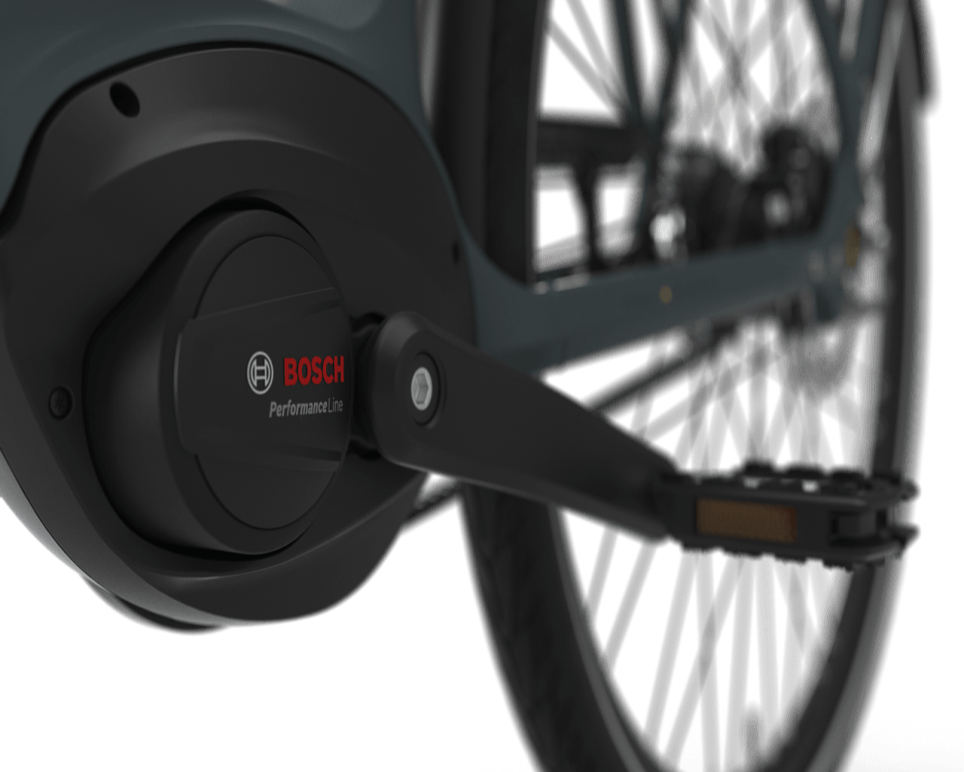

Bosch Performance Line Mid-drive Motor
The Arroyo E-Bikes feature a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Integrated Bosch Lithium Ion Battery
Their intelligent 500 Wh battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.
Frequently Asked Questions About Gazelle Arroyo E-Bikes
The top speed of Gazelle Arroyo E-Bikes is 32 kph (20 mph).
The Arroyo E-Bikes use the 47-622 (28x1.75) Schwalbe Energizer Active Plus tire, which is designed to mitigate the risks of punctured tires. This is a reliable for both asphalt and off-road use.
The weight limit for Arroyo E-Bikes is roughly 200 lbs.
Arroyo E-Bikes will be a worthy companion for your daily adventures since it is designed with a good frame and a high-quality hydraulic disc brakes, which can give you confidence on the road.
