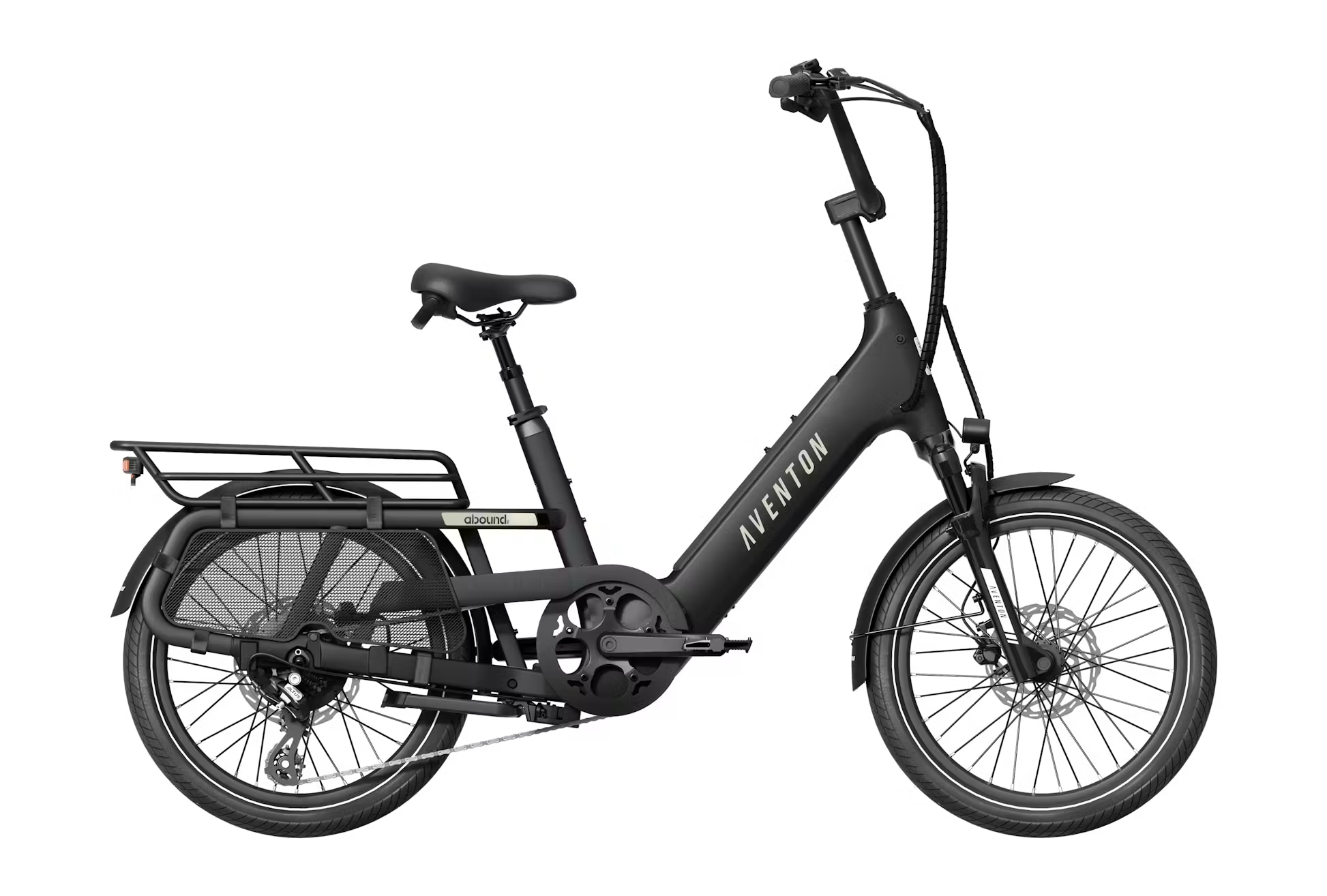

Aventon, Abound SR Cargo Electric Bike
DESCRIPTION
Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.
It’s SRsly fun.

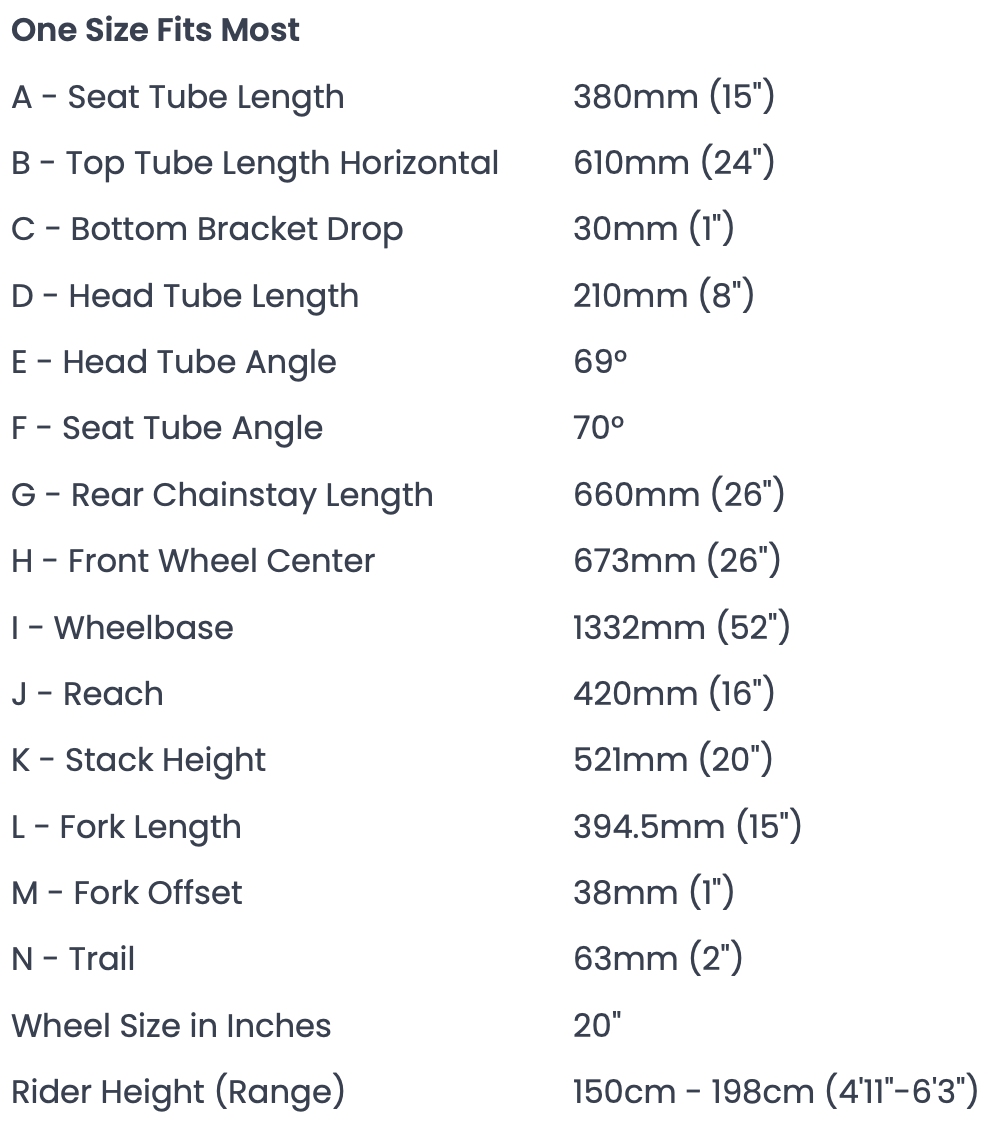

Product Specifications

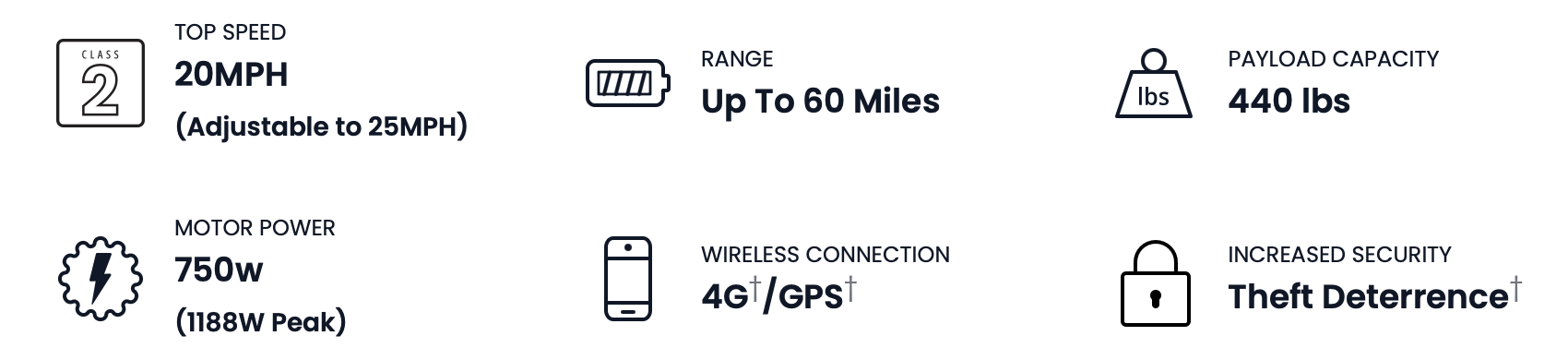

Class 2 Speed with Throttle
Class 2 Speed with Throttle
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
36 kg bike (200 kg limit)
40 kg bike (200 kg limit)

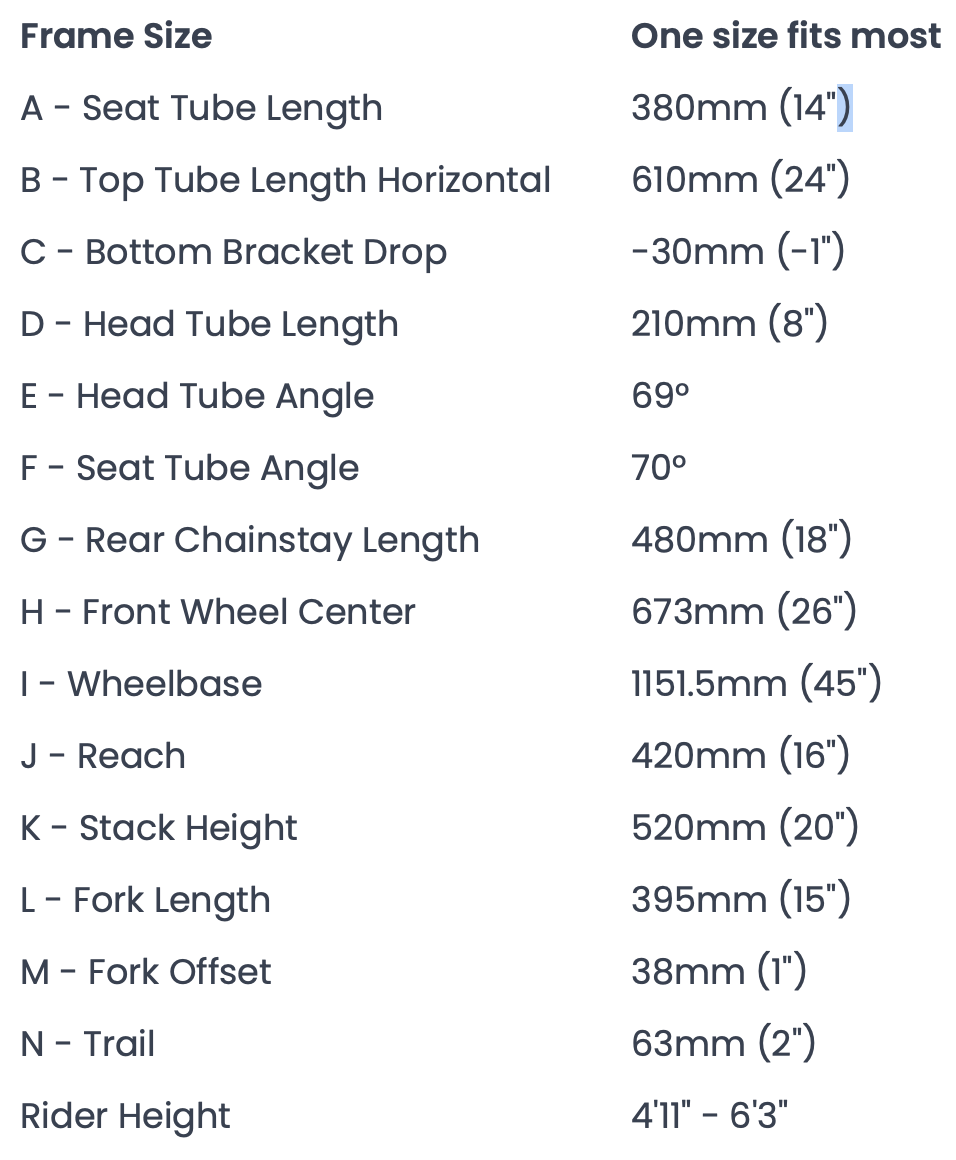

4'11" to 6'3"
4'11" to 6'3"
97 km
97 km
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
FORKThreaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
20 x 3.0 urban tire with reflective sidewalls
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
Aventon BC147
Aventon BC147
Front and Rear Lights Integrated w/ Turn Signals
Front and Rear Lights Integrated w/ Turn Signals
Tektro HD-E3520 hydraulic disc brakes
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Shimano Altus RD-M310 8 Speed
Shimano Altus RD-M310 8 Speed
Shimano 8 Speed SL-M315-8R
Shimano 8 Speed Trigger SL-M315-8R
8 speed 122 Link, 52 tooth
7/8 speed 154L, 52 tooth
Shimano CS-HG200-8 8 speed Cassette, 12-32T
12-32T / 8 Speed Shimano CS HG200-8
Aventon by SelleRoyal
Aventon Saddle w/ grab handle by Selle Royal
30.9mm Aventon Suspension Seatpost with 50mm travel
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
BMX Style, 31.8mm bar clamp, 680mm width with Lock-on ergonomic grips
BMX Style Aluminum 31.8mm, 720mm, Aventon Ergonomic Comfort lock on grips

Torque Sensor
The torque sensor recognizes your pedaling output and matches it, amplifying your momentum. This provides a more natural riding experience, conserves battery life, and extends riding range.
Dropper Seatpost
Abound’s new quick-adjusting dropper seatpost is comfort on command. By squeezing the lever beneath the seat, you can easily glide the seat up or down, giving you ultimate control and comfort over your riding position.
Storage Bag
The storage bag lets you zip up and stash away the personal items you might need to bring along for the long haul around town.
Integrated Lights w/ Turn Signal Functionality
Integrated front and rear lights allow you to see and be seen on the road, while the all-new turn signal functionality will indicate your next move to motorist and other cyclists.
Pedal Assist & Throttle
Throttle on demand and four levels of pedal assist will maximize your efforts and minimize the amount of energy you use. Tow around town with a top speed of 20 mph and up to 50 miles in range.
FAQs
About Aventon Abound Cargo E-Bike
A Class 2 E-Bike has a top speed of 20 mph and throttle-assisted. Aventon Abound is a Class 2 e-bike, which sets them apart from most cargo bike options.
A cargo e-bike is an e-bike with a cargo space situated in the rear end. It has a high hauling capacity meant for boarding passengers or loading groceries.
The Abound's hauling capacity allows you to safely bring 1-2 kids with the seat accessory for the rear cargo.
