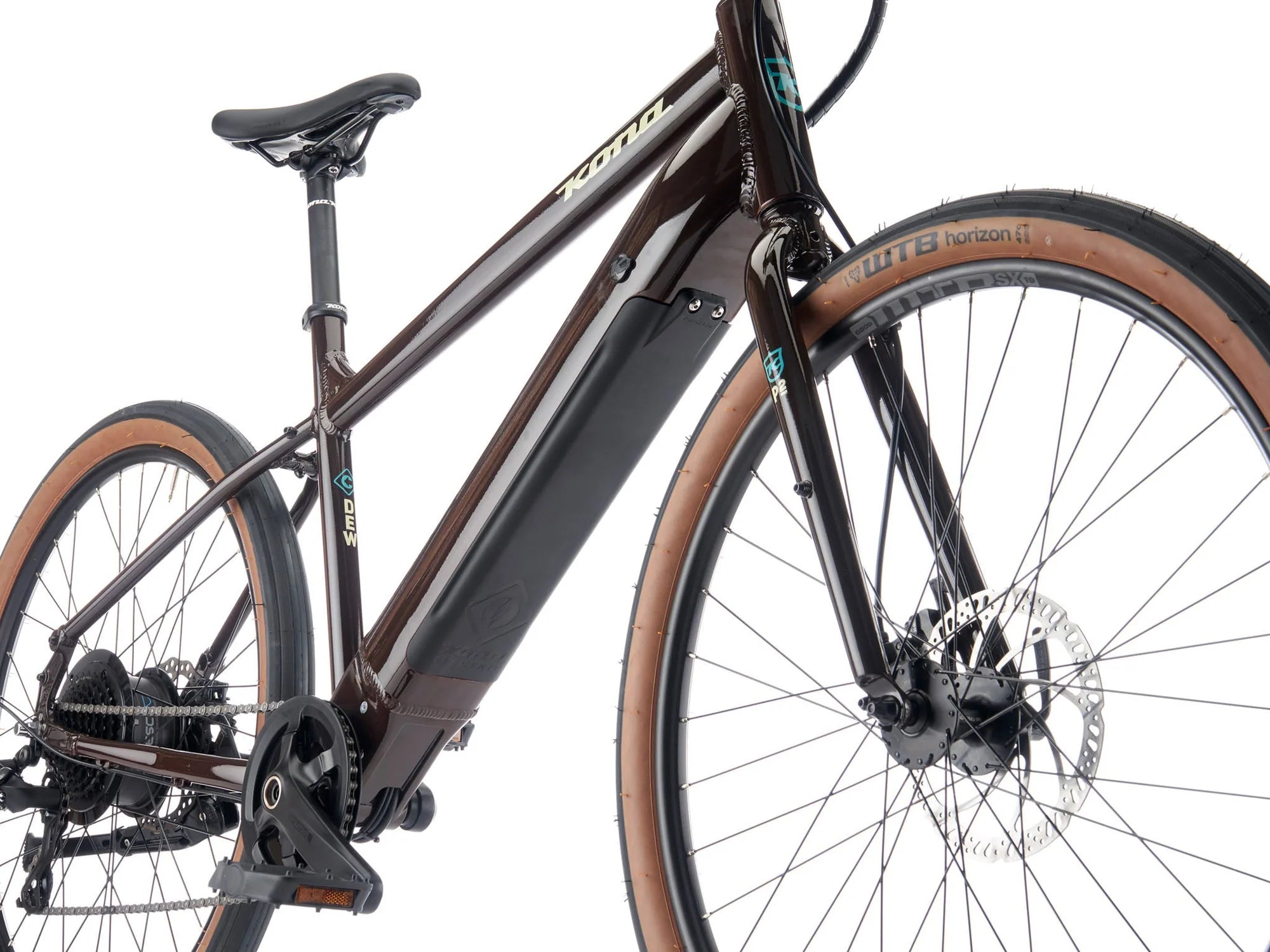

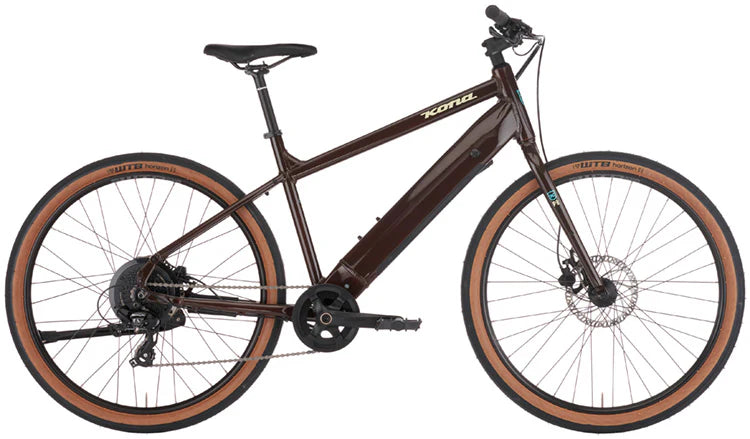

Kona Dew HD Electric Bike – Everyday Freedom, Powered
The Kona Dew HD is designed to make every ride easier, faster, and more enjoyable. Whether you're commuting to work, cruising through the city, running errands, or exploring new routes, this versatile electric bike delivers smooth pedal assistance exactly when you need it.

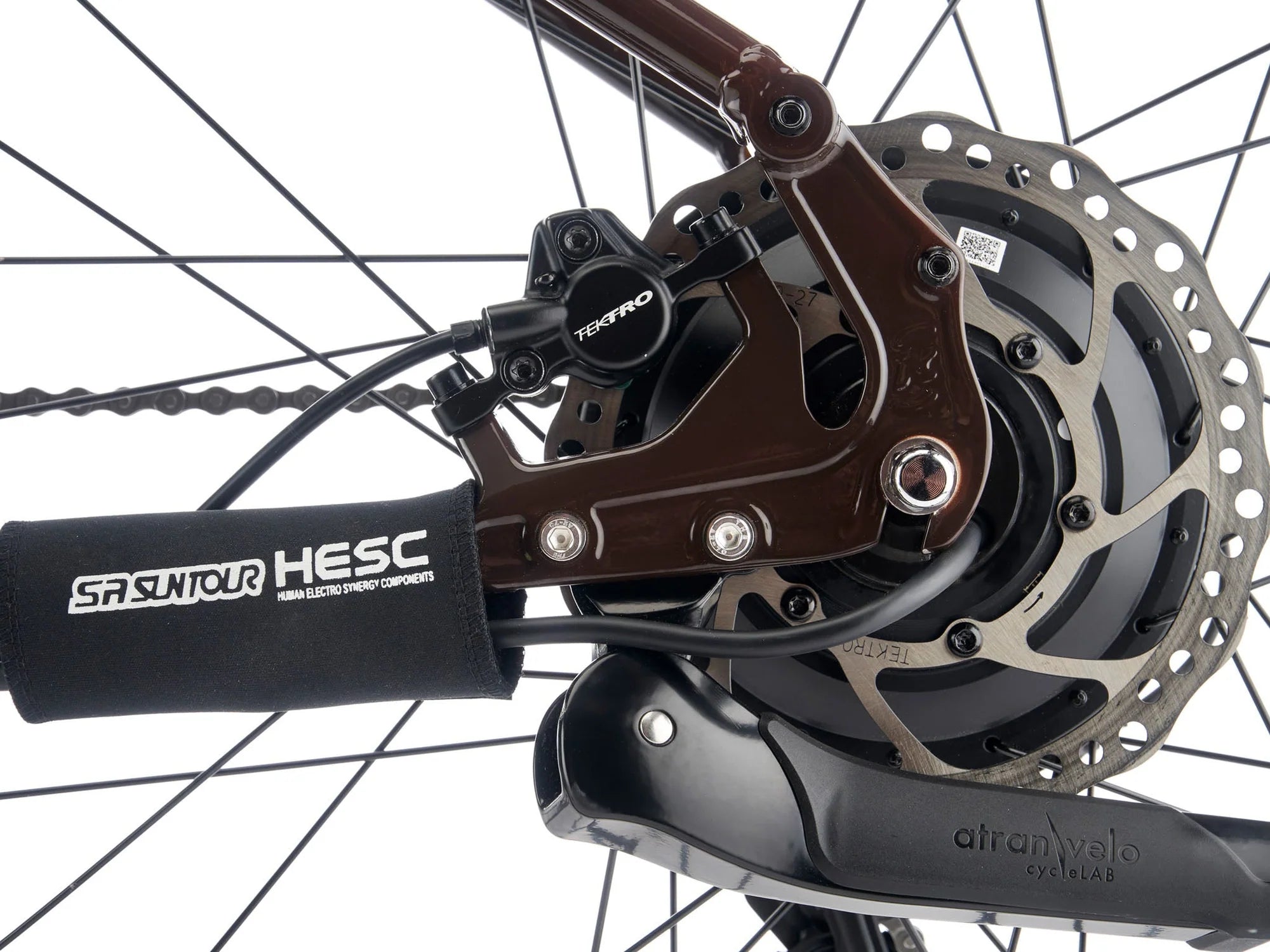

Powered by the reliable SR Suntour R250 HP hub-drive motor and a fully integrated 418Wh battery, the Dew HD helps flatten hills, extend your rides, and reduce the effort of everyday cycling. Its comfortable upright geometry, responsive handling, and practical design make it an ideal choice for riders looking for a dependable and affordable e-bike.
Built on Kona’s proven Dew platform, the Dew HD combines decades of commuter-bike expertise with modern electric assistance. Hydraulic disc brakes with large 180mm rotors provide confident stopping power in all conditions, while integrated rack and fender mounts make it easy to carry groceries, gear, or daily essentials.
Why You'll Love the Kona Dew HD
- Smooth and natural pedal-assist electric power
- SR Suntour R250 HP hub-drive motor with 60Nm of torque
- Integrated 418Wh battery for dependable daily range
- Powerful hydraulic disc brakes with 180mm rotors
- Comfortable, upright riding position
- Rack and fender compatible for commuting and utility use
- Lightweight aluminum frame with proven Kona geometry
- Ideal for city riding, commuting, fitness, and recreational adventures
DEW-HD FEATURES
Kona's commuting experience
SR Suntour OLED Display
Effortless control right at your fingertips.Toggle through assist modes and monitor your battery life on the fly with the crisp, intuitive SR Suntour OLED system.Built simple, so you can focus on the journey.
WTB Horizon Comp 650x47c
Effortless urban cruising meets plush comfort. Floating over rough pavement and gravel is a breeze with the high-volume WTB Horizon Comp 650x47c tires. Your daily route just got a whole lot smoother.

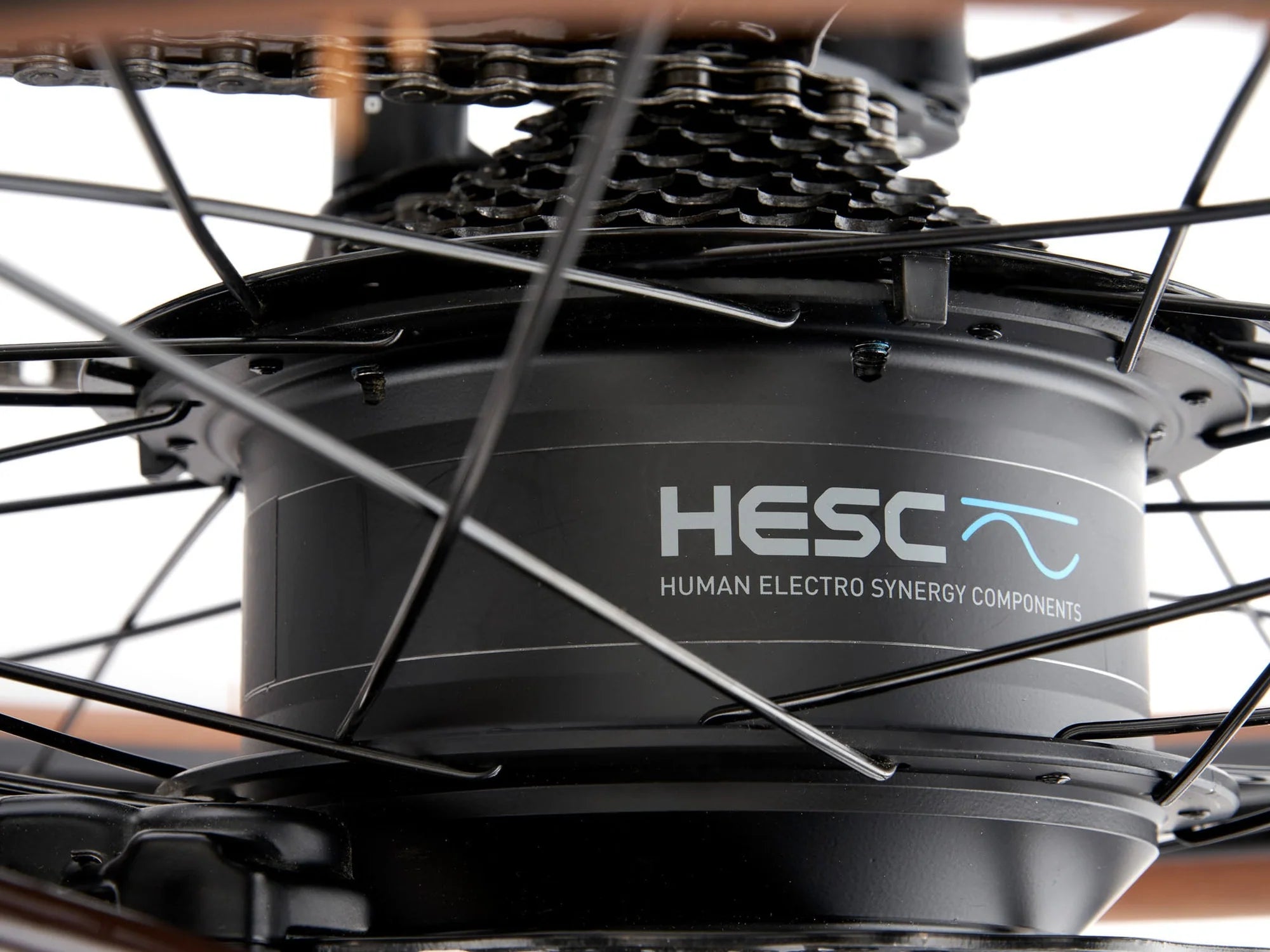

SR Suntour HD 20MPH
Power, performance, and a fast 20 MPH top speed. The SR Suntour HD drive unit packs plenty of punch to keep you ahead of traffic and rolling smooth. Elevate your everyday ride without breaking a sweat.

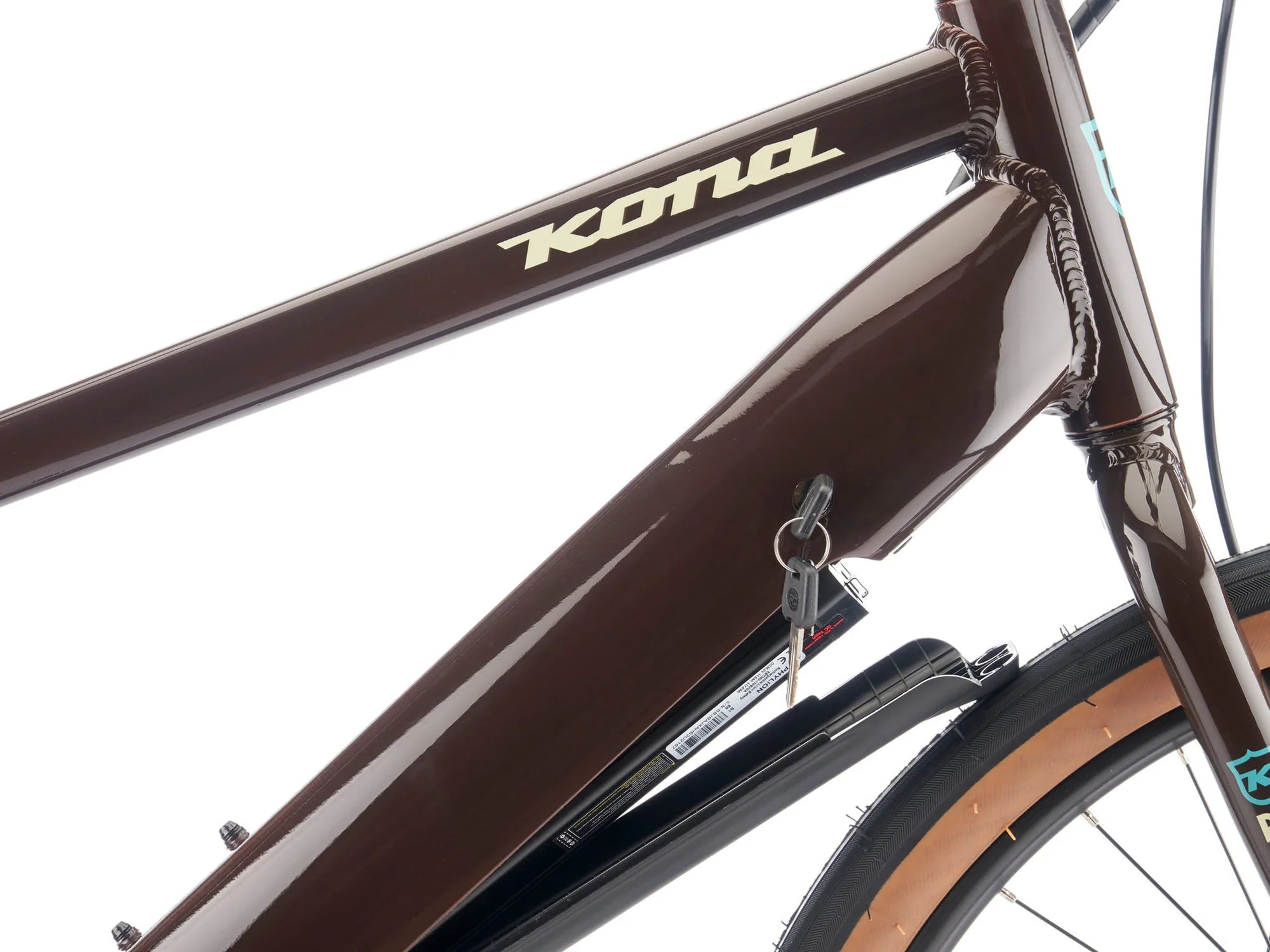

Phylion 418Wh
Stealthy style meets daily dependability. Tucked neatly inside the frame, the Phylion 418Wh battery keeps your bike’s lines incredibly clean while powering your daily adventures. Ride further with sleek, integrated performance.

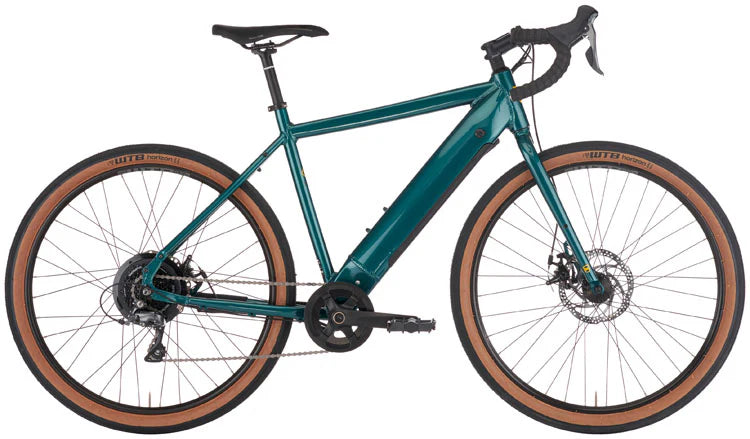

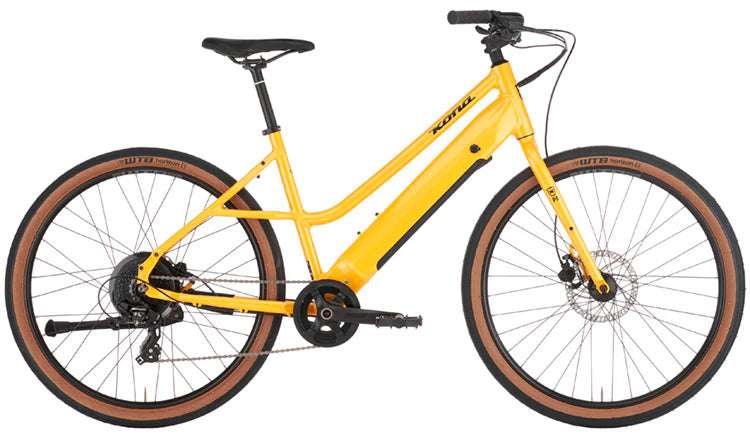

EXPLORE THE ANATOMY OF KONA DEW-HD, COCO-HD, ROVE HD
SPECS SHEET
SR Suntour HD 20MPH
Phylion 418Wh
Kona 6061 Aluminum Butted
DEW HD: S, M, L, XL
COCO HD: S, M, L
ROVE HD: 48, 50, 52, 54, 56, 58
Kona Project Two Aluminum Disc
Suntour
Kona JS2
KMC Z8.3
Cassette
- Dew HD: Shimano Altus 11-32t 8spd
- Coco HD: Shimano Altus 11-32t 8spd
- Rove HD: Shimano Clairs 11-32t 8spd
---
Shifters Shimano Altus
- Dew HD: Shimano Altus
- Coco HD: Shimano Altus
- Rove HD: Shimano Clairs
Brake Calipers
- Dew HD: Tektro HDM275 Hydraulic
- Coco HD: Tektro HDM275 Hydraulic
- Rove HD: Tektro Spyre-C Mechanical
---
Front & Rear Brake Rotor: All Tektro TR180 180mm
---
Brake Levers
- Dew HD: Tektro HDM275 Hydraulic
- Coco HD: Tektro HDM275 Hydraulic
- Rove HD: Tektro Spyre-C Mechanical
Feimin FP-H863
- Dew HD: Kona Aluminum Riser
- Coco HD: Kona Handplant
- Rove HD: Kona Road
- Dew HD: Kona Commuter
- Coco HD: Kona Commuter
- Rove HD: Kona Road
- Dew HD: Kona Contrrol
- Coco HD: Kona Commuter
- Rove HD: Kona Road Deluxe
- Dew HD: Kona Commuter 27.2mm
- Coco HD:Kona Commuter 27.2mm
- Rove HD: Kona Thumb w/Offset 27.2mm
Kona Clamp
- Dew HD: Kona Key Grip Slip on
- Coco HD: Kona Key Grip Slip on
- Rove HD: Kona Cork Tape
Shimano 100x9mm
SR Suntour HD 20MPH
Stainless Black 14g/13g
WTB SX19
F: WTB Horizon Comp 650x47c
R: WTB Horizon Comp 650x47c
SR Suntour OLED Display
Phylion 2A
SR Suntour
SIZING & SELECTION

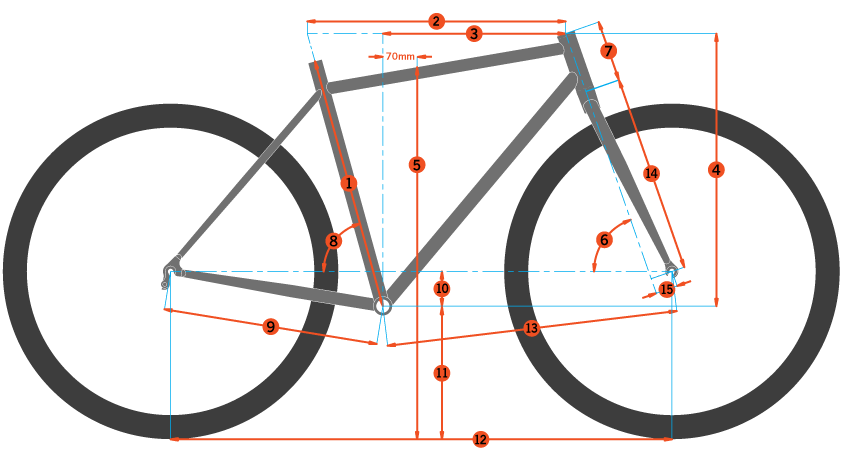

Refer to the bicycle geometry chart below
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 550 | 597 | 636 | 686 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 568 | 606 | 643 | 681 |
| 5 | Standover | 685 | 720 | 756 | 797 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 145 | 185 | 225 | 265 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1082 | 1121 | 1150 | 1190 |
| 13 | Front Center | 639 | 677 | 707 | 747 |
| 14 | Fork Length | 409 | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
| Size | S | M | L | |
| 1 | ST Length | 420 | 470 | 520 |
| 2 | TT Length | 553 | 597 | 636 |
| 3 | Reach | 395 | 423 | 439 |
| 4 | Stack | 591 | 606 | 643 |
| 5 | Standover | 584 | 584 | 591 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 170 | 185 | 225 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 |
| 9 | CS Length | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 |
| 12 | Wheelbase | 1088 | 1121 | 1150 |
| 13 | Front Center | 644 | 677 | 707 |
| 14 | Fork Length | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 |
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 520 | 531 | 546 | 562 | 578 | 597 |
| 3 | Reach | 372 | 378 | 383 | 388 | 392 | 400 |
| 4 | Stack | 551 | 551 | 567 | 586 | 607 | 626 |
| 5 | Standover | 734 | 753 | 773 | 793 | 813 | 833 |
| 6 | HT Angle | 70.5 | 70.5 | 71.0 | 71.0 | 71.5 | 71.5 |
| 7 | HT Length | 125 | 125 | 140 | 160 | 180 | 200 |
| 8 | ST Angle | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 72.5 |
| 9 | CS Length | 450 | 450 | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1045 | 1051 | 1057 | 1068 | 1074 | 1088 |
| 13 | Front Center | 602 | 609 | 613 | 625 | 631 | 645 |
| 14 | Fork Length | 409 | 409 | 409 | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
FAQ
Have a question ? We are here to help.
All you need to know about your City eBike
What is an Electric City Bike?
A Electric City Bike is characterized by tires that let you travel swiftly, a saddle that supports comfort, frame that is angled to support upright posture, and equipped with fenders, lights, and racks that is essential in day-to-day commuting
Can Electric City Bikes be used for hilly terrains?
Yes, especially because of the electric assist. It makes riding uphill easier, but this may also require more power and may affect your range.
Can I use my Electric City Bike when raining?
Yes, they are built to survive light rain. However, it is important to avoid too much exposure when it comes to electric bikes — high-pressure water, submerging in water, improper storage, and extreme temperatures. Those factors, just like heavier rain, may affect your electric bike along the way.
Is it okay to carry groceries in a Electric City Bike ?
Most City Electric Bikes are made to fit an urban type of living, which is why they are almost always designed with front or rear racks that are capable of carrying groceries. With the right accessories, you can even carry or haul more than just groceries. Check our accessories here.
Are Electric City Bikes suitable for beginners?
Yes. The electric assist in pedaling allows beginners to ease into cycling, which can help improve the confidence of the rider.
Is Electric City Bike faster than standard city bike?
Yes. An electric bike can go up to 32 kph, while a standard bike usually have maximum top speed of 19 kph
