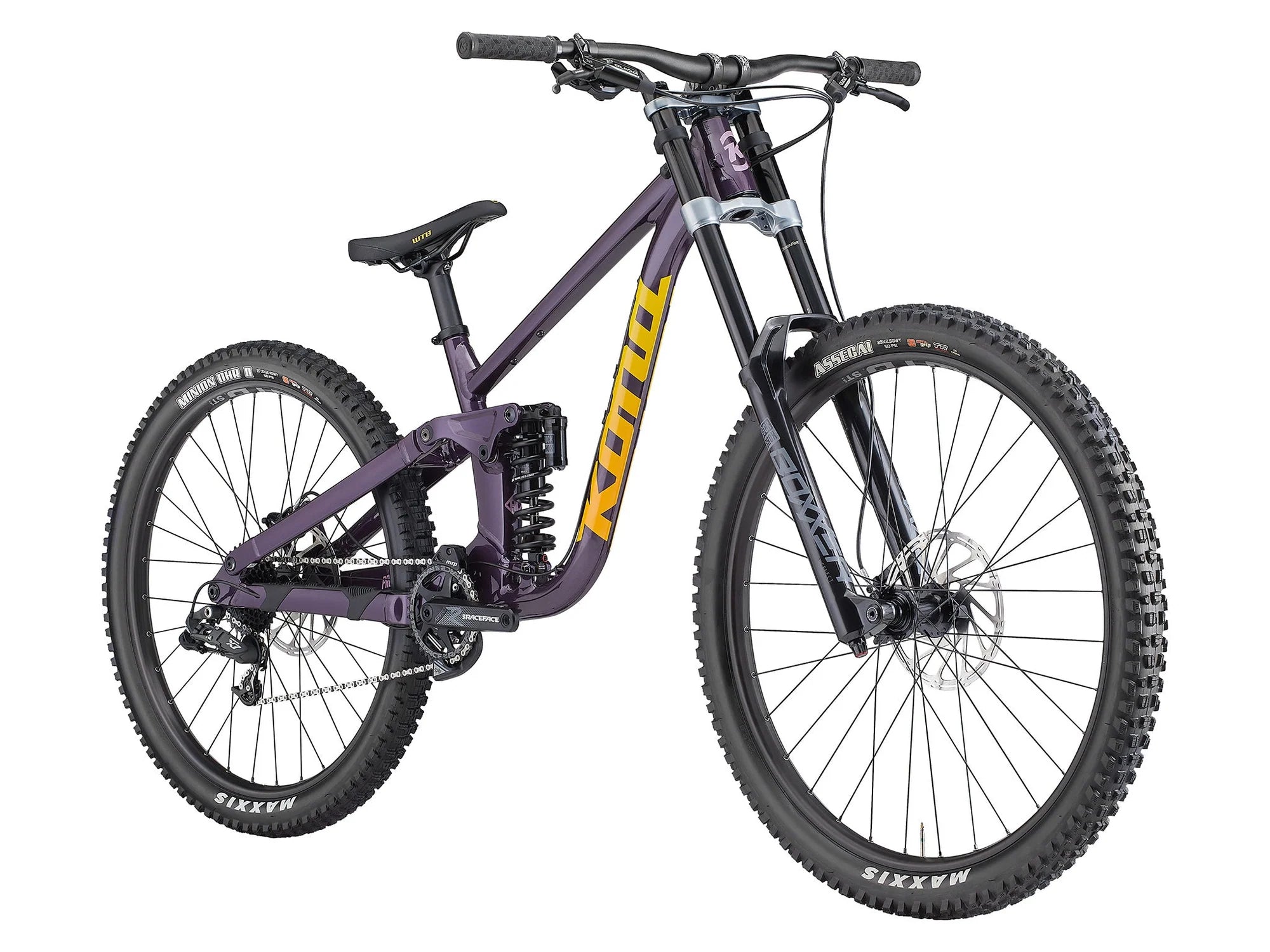

KONA, Process X DH, Non-electric MTB

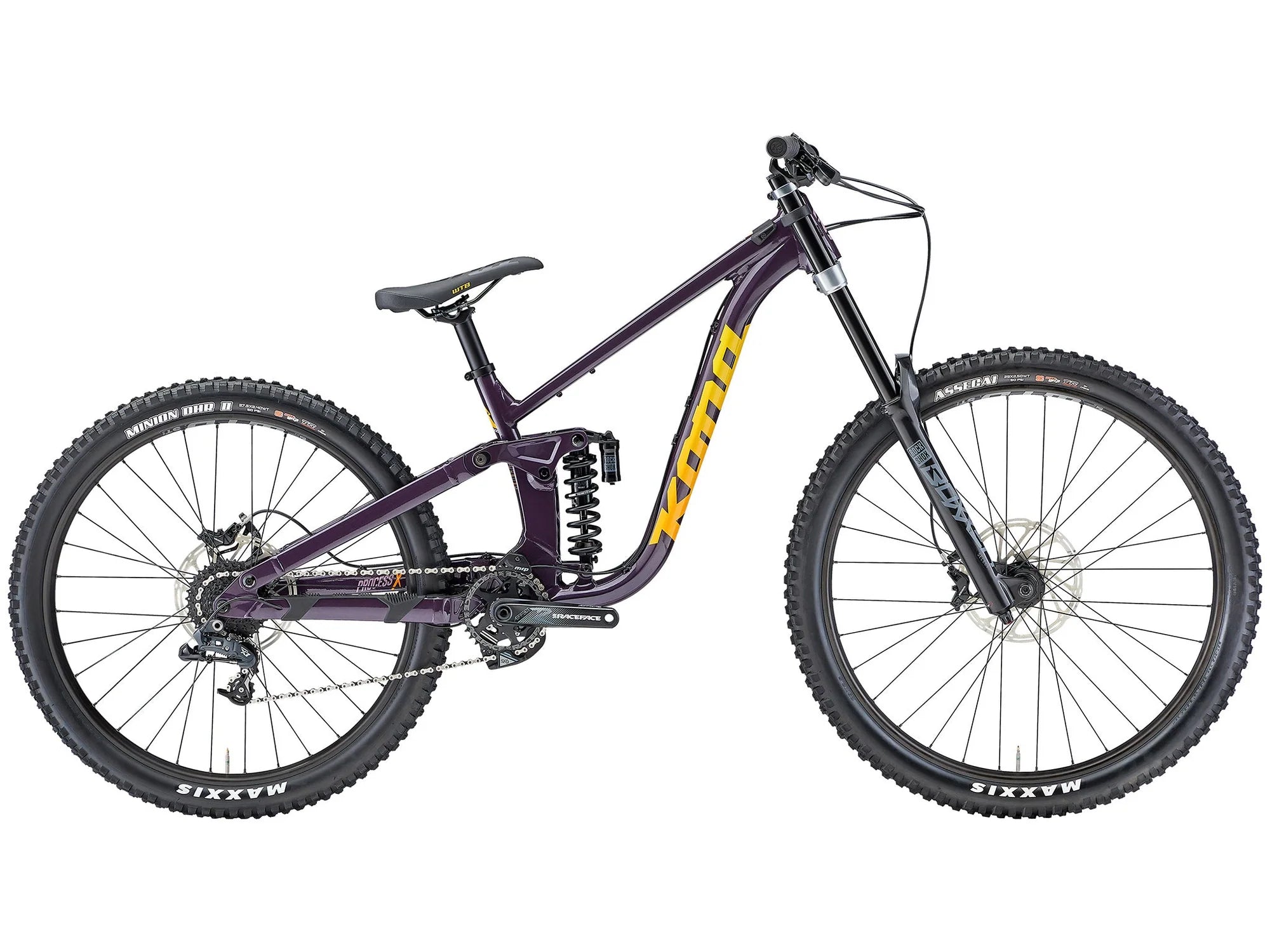

Kona Process X DH – Built to Push the Limits
The Kona Process X DH is made for riders who live for speed, style, and big mountain terrain. Whether you're charging steep downhill lines, hitting the bike park, or boosting off every side hit you can find, this aluminum beast is built to handle it all with confidence and control.
Designed for aggressive downhill riding, the Process X DH blends stability and playfulness in perfect balance. It’s solid and composed when smashing through rough terrain and high-speed sections, yet still agile enough to whip, jump, and style every feature on the trail.
From bike park laps to full-send descents, this bike is built for riders who want to push harder, ride faster, and have more fun every time they drop in.
Why You'll Love the Kona Process X DH
- Aggressive downhill design built for bike park and freeride riding
- Stable and confidence-inspiring at high speeds and rough terrain
- Playful rear end for whips, jumps, and stylish air control
- Built to handle big hits and technical downhill lines
- Strong aluminum frame designed for durability and control
- Perfect balance of stability and playfulness for advanced riders
- Ideal for bike park laps, downhill racing, and freeride progression
Key Specs
Category: Downhill / Bike Park / Freeride MTB

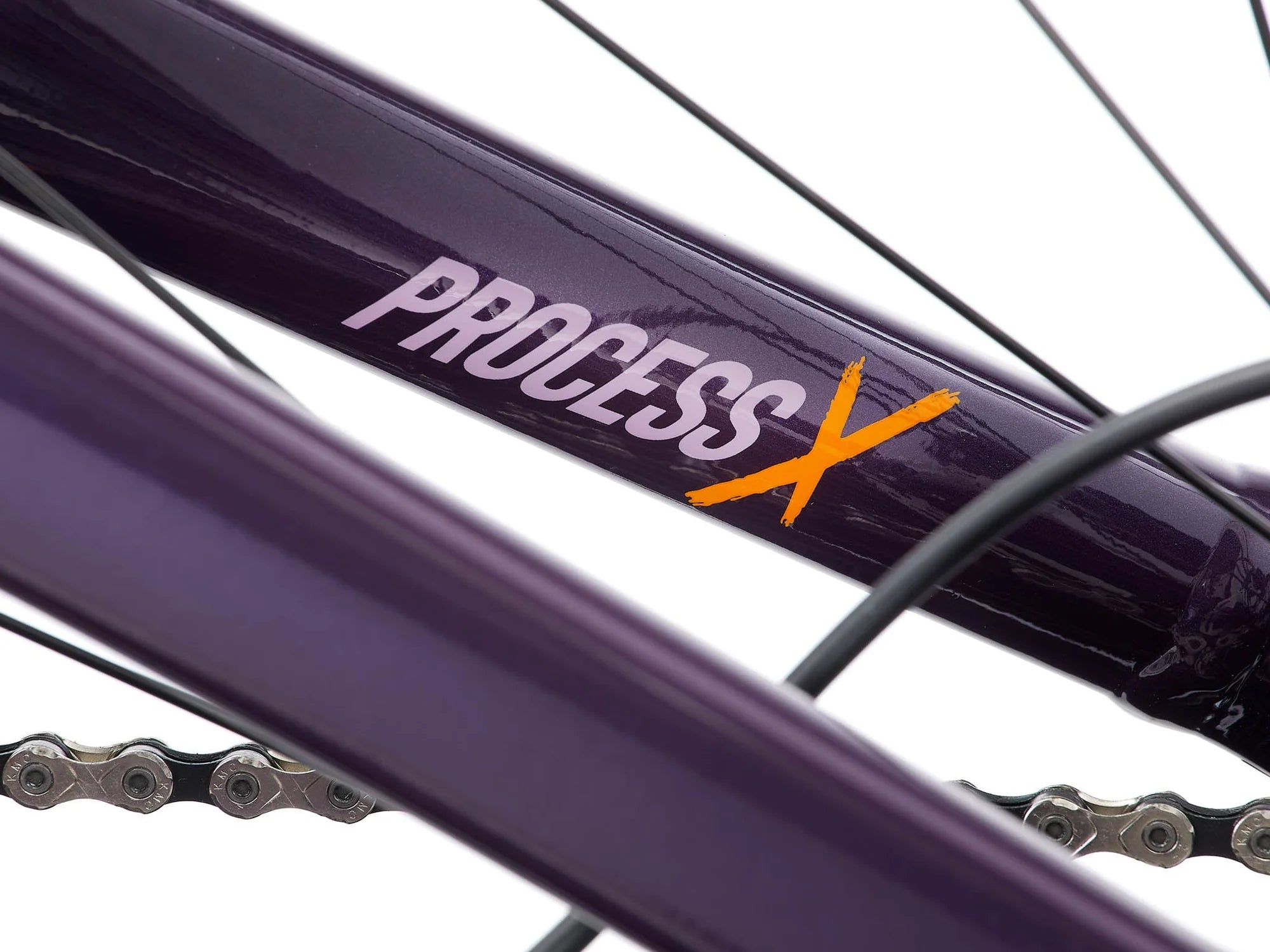

Frame: Aluminum Process X DH Frame
Fork: Long-travel dual crown suspension fork (DH spec)
Rear Suspension: High-performance downhill shock
Brakes: Hydraulic disc brakes (DH-grade stopping power)
Rotors: Oversized rotors for heat control and stopping power
Drivetrain: Single-ring downhill drivetrain setup
Tires: Wide downhill tires (max grip + durability)
Wheel Size: 27.5” or MX (depending on build year/spec)
Use: Bike park, downhill trails, freeride terrain
PROCESS X DH FEATURES
Kona's commuting experience

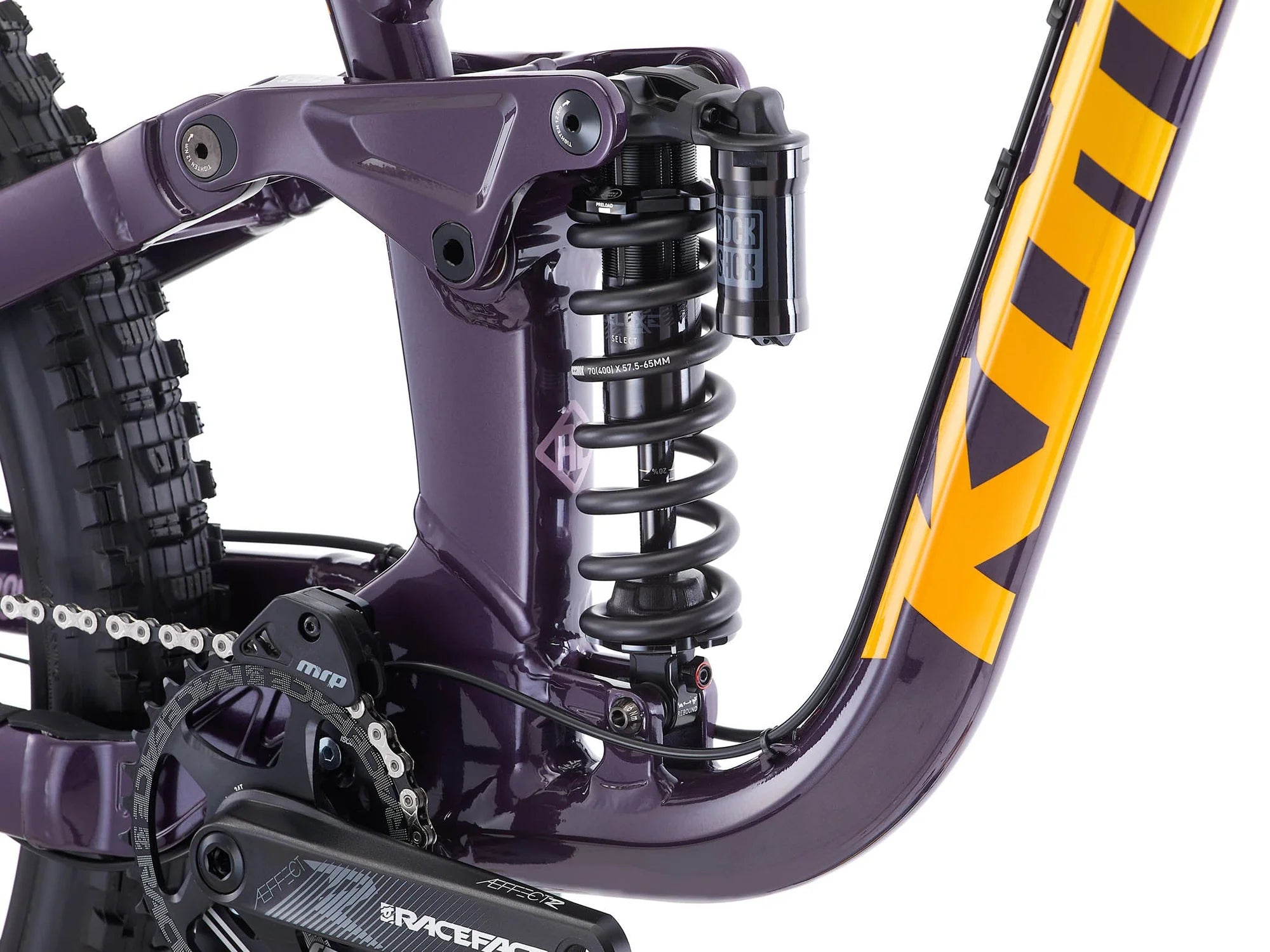

RockShox Super Deluxe Coil Trunnion
No air, no compromise. Experience consistent, fade-free damping performance on long, punishing downhill runs. The Super Deluxe Coil combines rugged durability with highly tunable adjustments for the ultimate gravity setup.

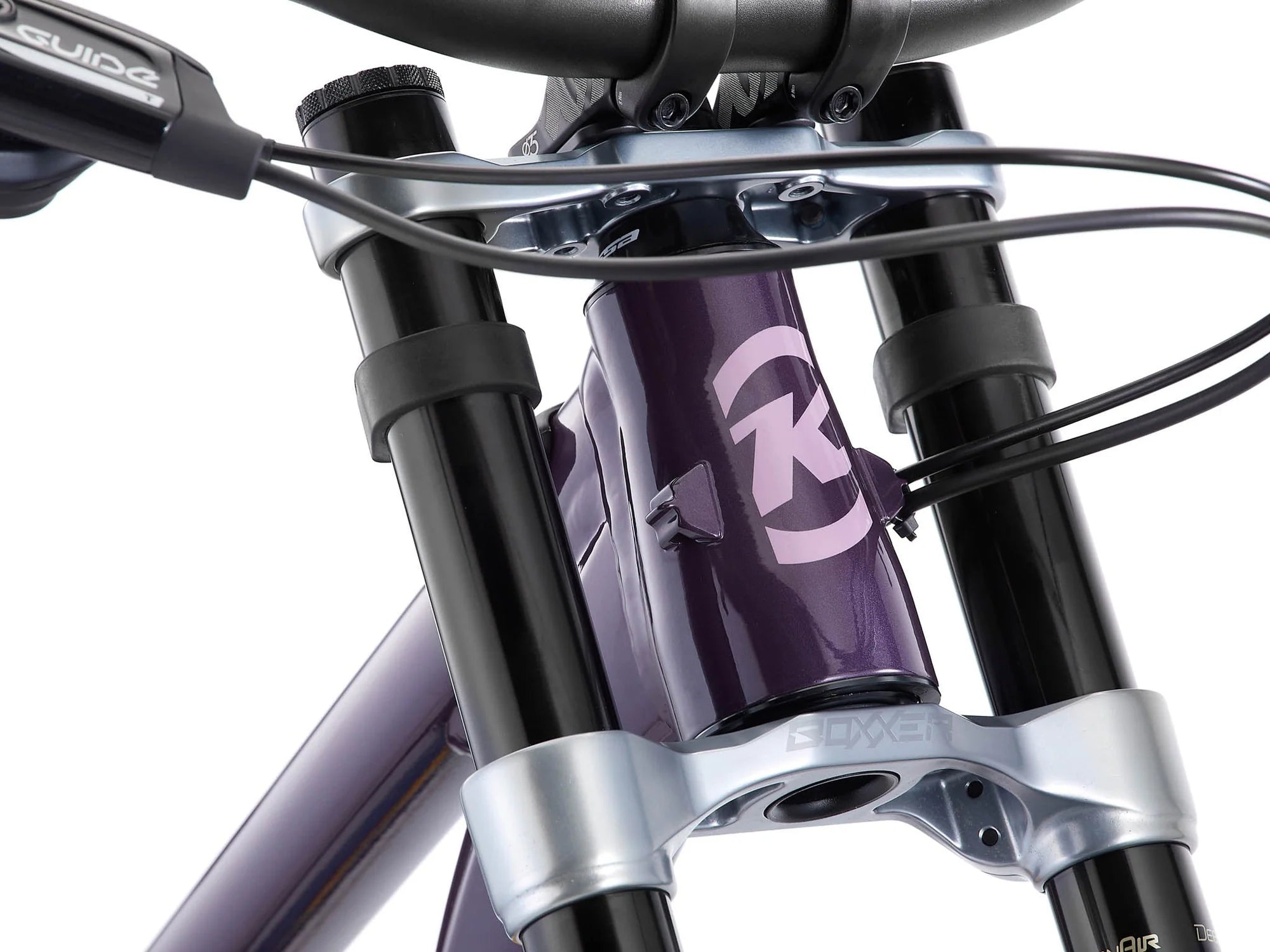

RockShox Boxxer Select DebonAir 190mm
Built for the biggest drops and fastest park lines. Pairing a supple, highly tunable DebonAir spring with a rock-solid chassis, this 190mm monster ensures your front tire stays glued to the dirt when things get steep.
SRAM Guide T
Quad-piston power on demand. The SRAM Guide T caliper packs a serious punch with its lightweight, 4-piston design, offering crisp braking control and steady modulation when trails get steep and fast. Hit your lines with total confidence.

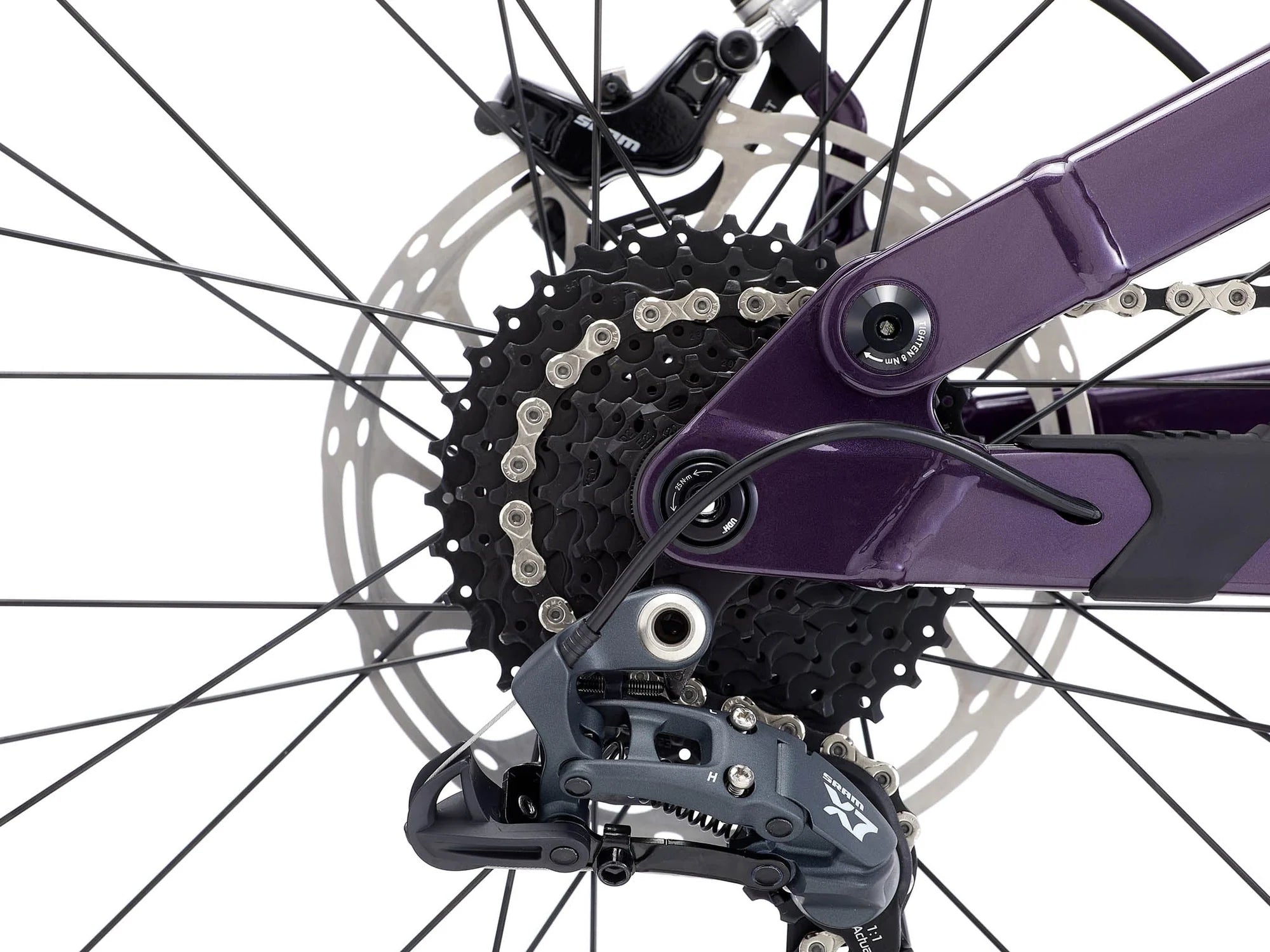

SRAM PG920 11-34t 9spd
Tough, reliable, and ready to shred. The SRAM PG-920 9-speed cassette utilizes PowerGlide II technology for crisp, positive shifting even when you’re pushing hard. Perfect for bombproof gravity and trail setups.
Vee Tire Crown Gem 20x2.6"
Big trail confidence for growing riders. The Vee Tire Crown Gem 20x2.6" packs massive volume and aggressive knobs to give young shredders maximum grip and stability in any corner. Let the dirt flying begin!
EXPLORE THE ANATOMY OF KONA PROCESS X DH
SPECS SHEET

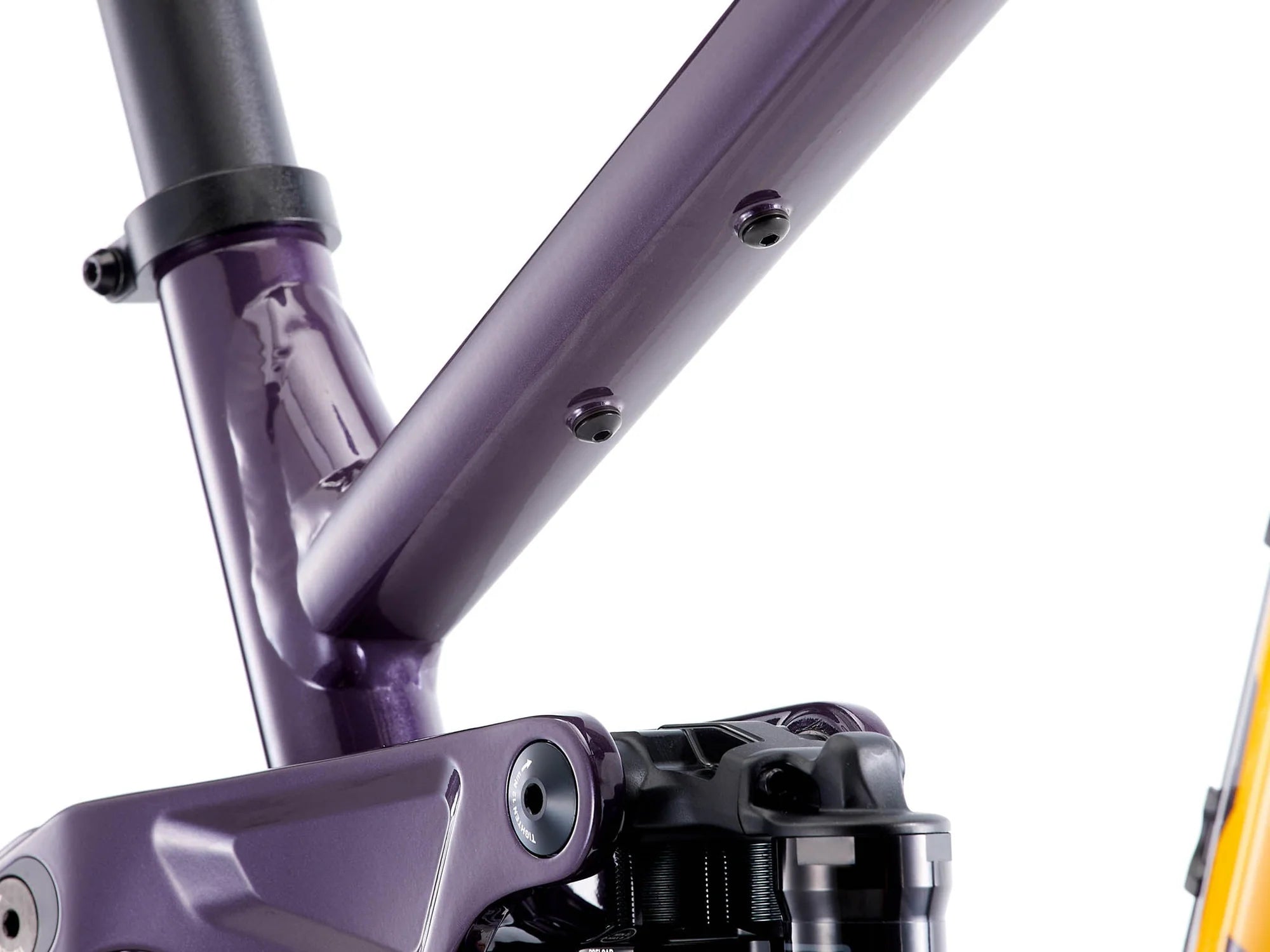

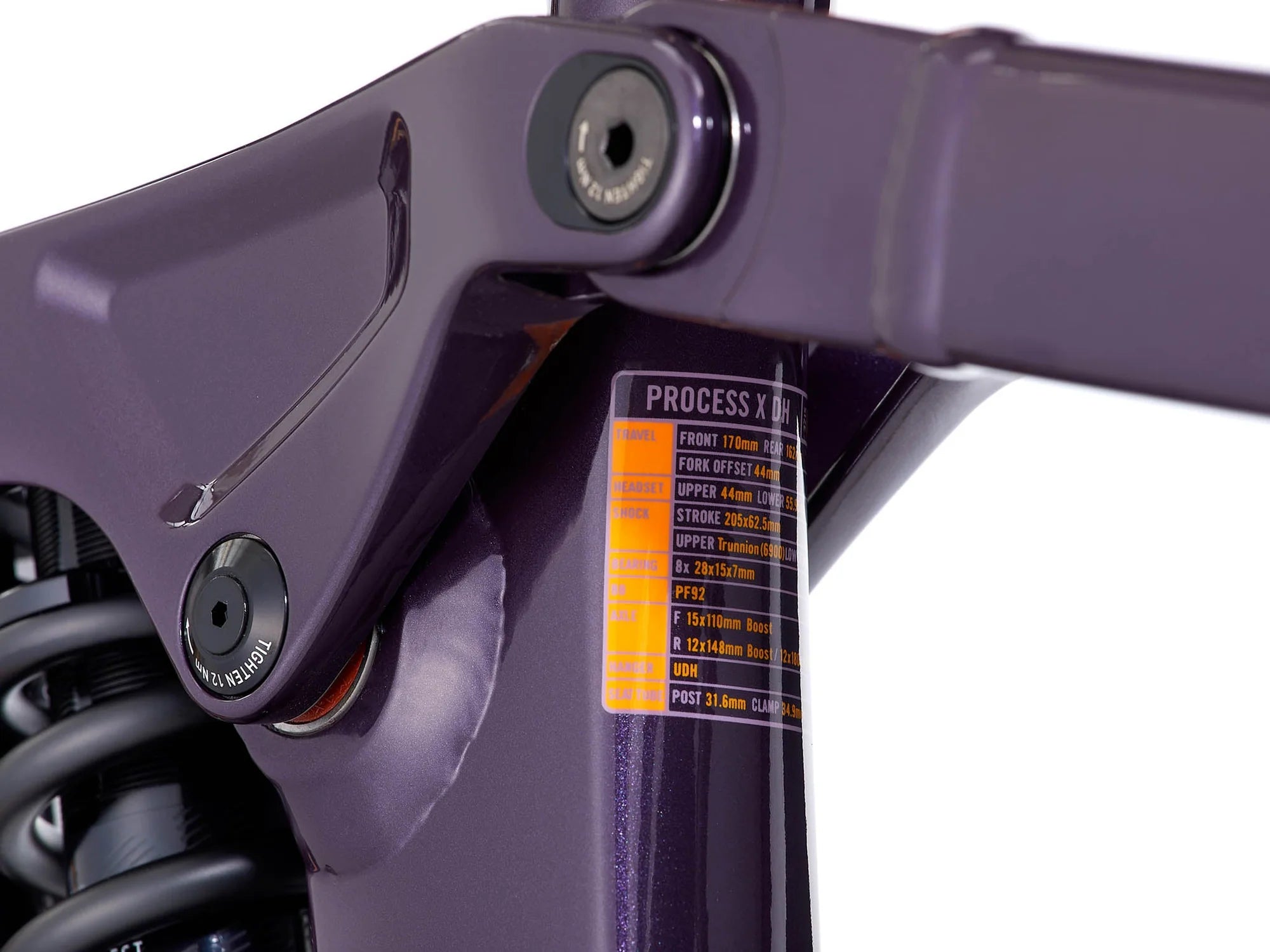

Kona 6061 Aluminum Butted 162mm Travel
S, M, L, XL

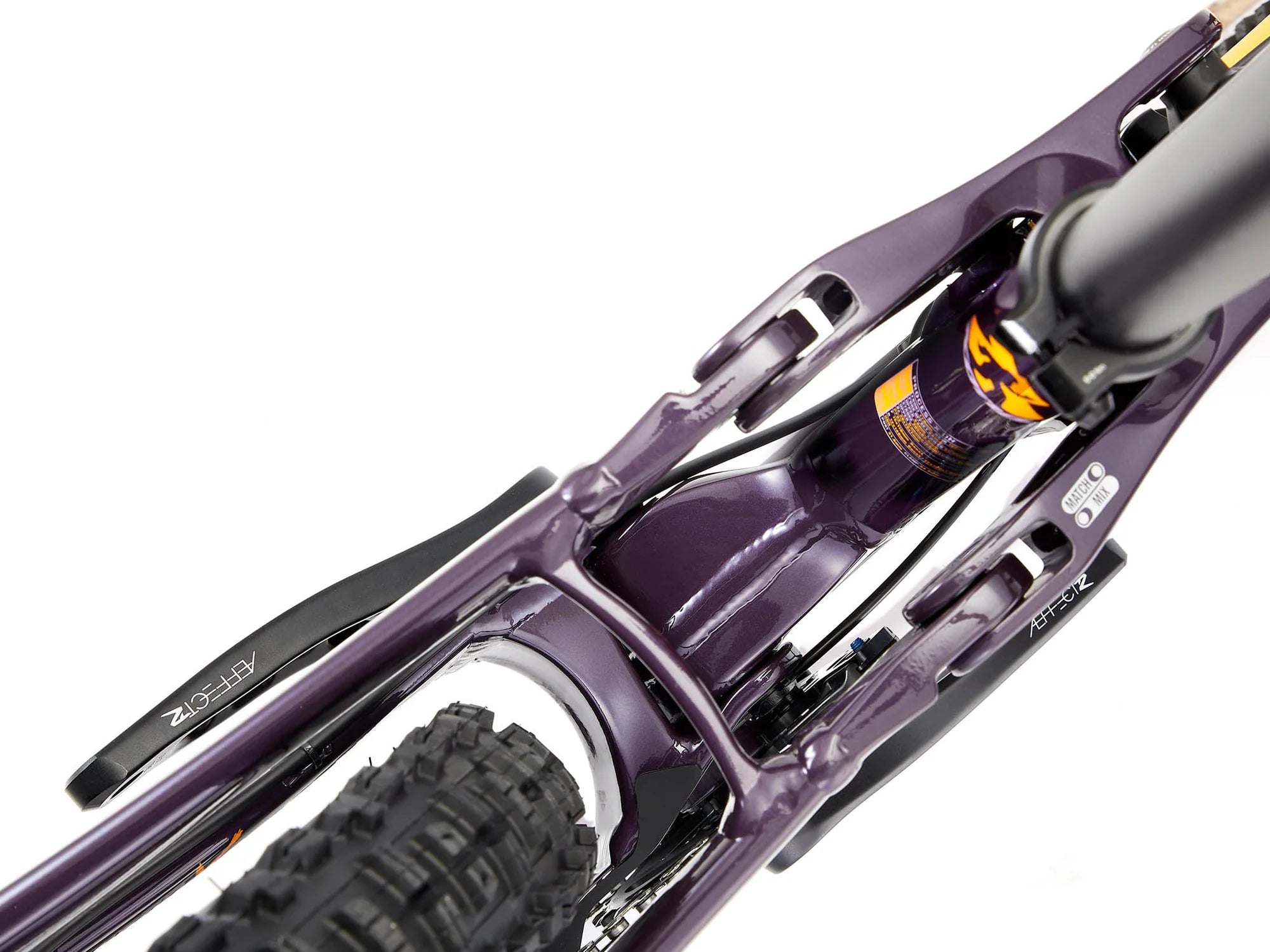

RockShox Super Deluxe Coil Trunnion

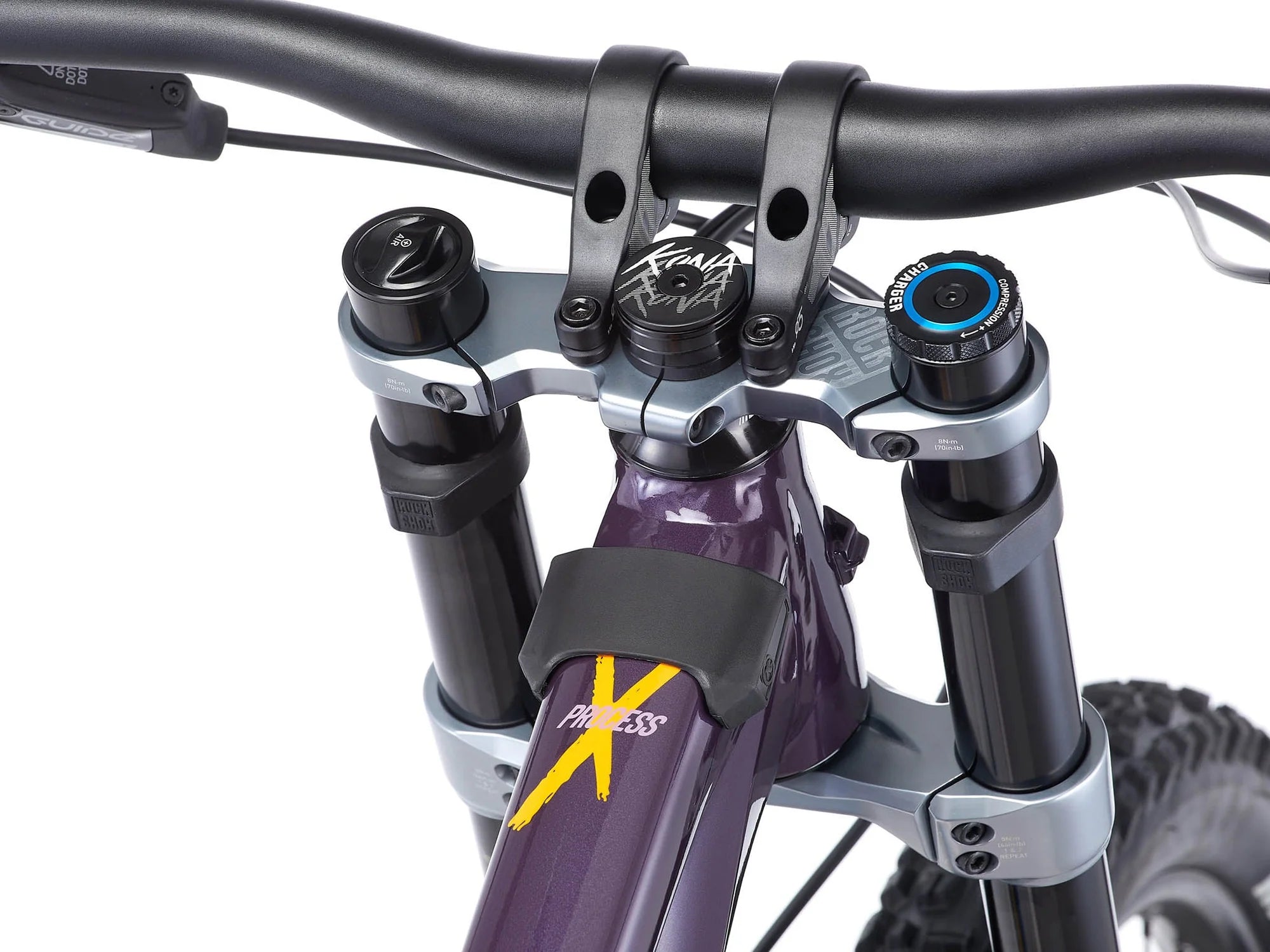

RockShox Boxxer Select DebonAir 190mm

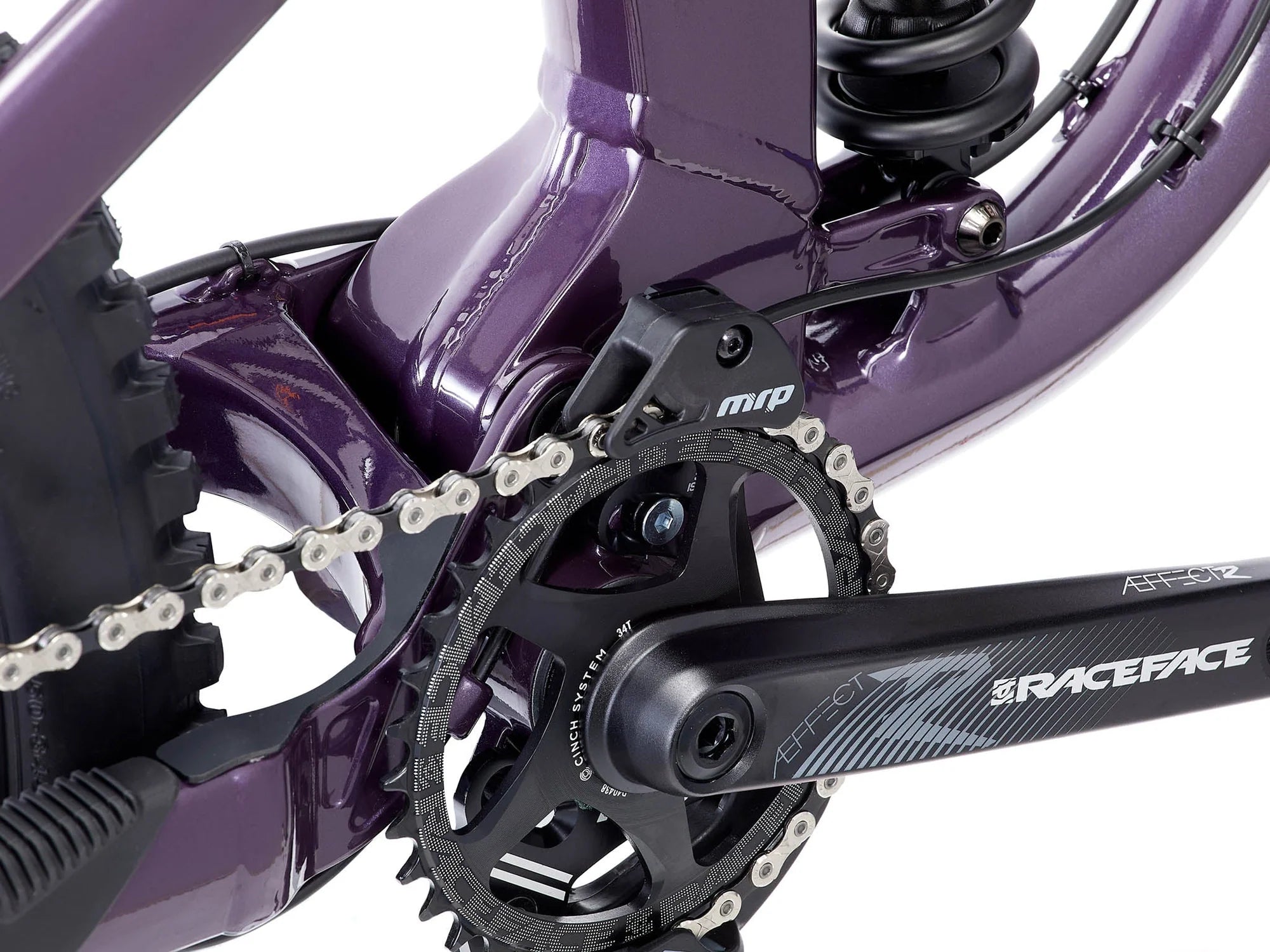

CRANKARMS: Race Face Aeffect R
CHAINRINGS: 34tB/BRace Face PF92
PEDALS: n/a
CHAIN: KMC X9
CASSETTE: SRAM PG920 11-34t 9spd
CHAINGUIDE: MRP
F/D: n/a
R/D: SRAM X7
SHIFTERS: SRAM X5

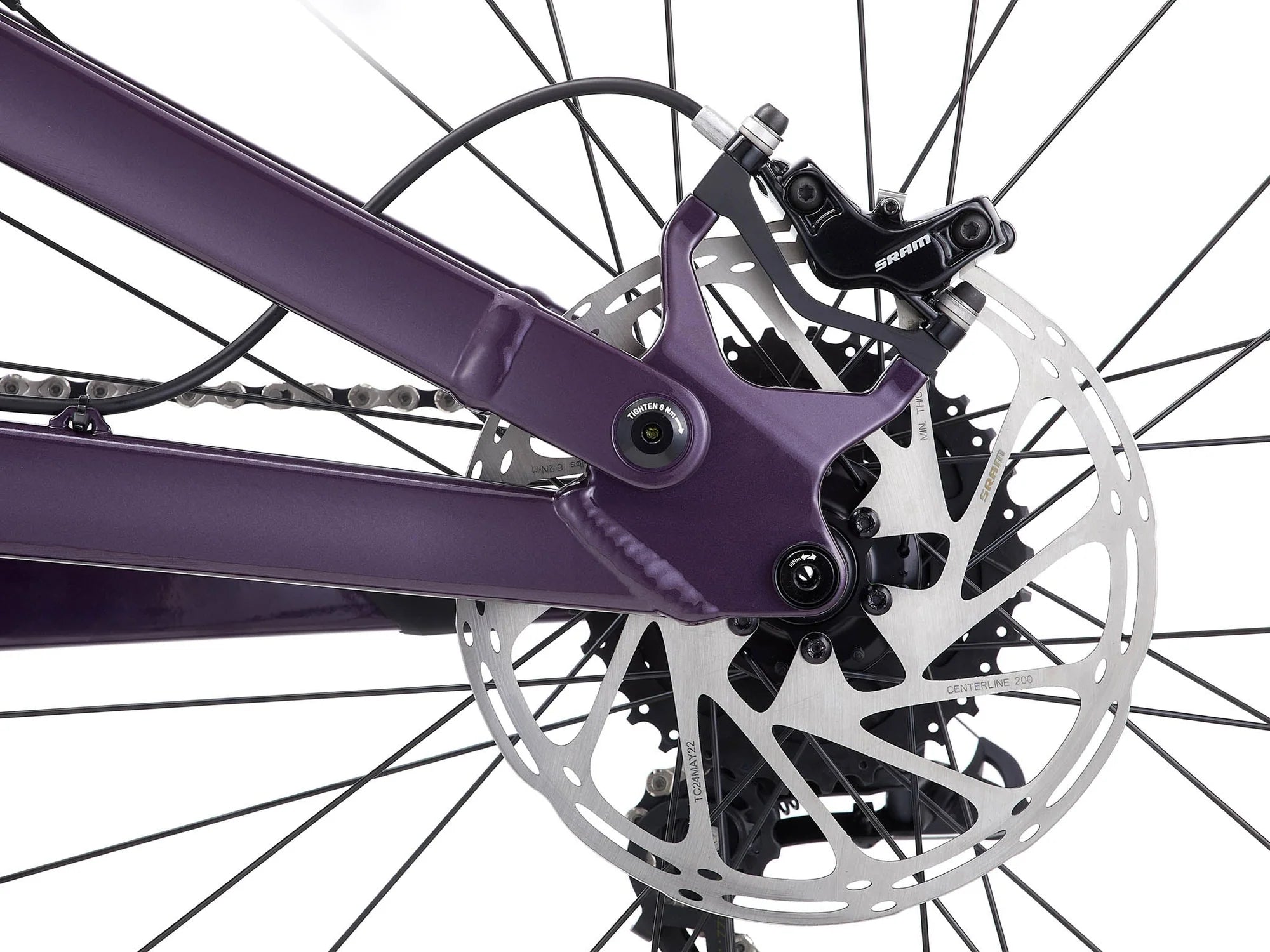

Brake Calipers SRAM Guide T
Front Brake Rotor SRAM Centerline 200mm
Rear Brake Rotor SRAM Centerline 200mm
Brake Levers SRAM Guide T
FSA Orbit 1.5 EP ZS
Kona XC/BC 35
WTB Volt
Race Face Chester
Kona OB 31.6mm
Kona Clamp
Kona Key Grip
Formula 110x20mm
Formula 148x12mm
Stainless Black 14g
WTB ST i30 TCS 2.0
F: Maxxis Assegai DH 29x2.5" WT
R: Maxxis Minion DHR II DH 27.5x2.4" WT
Sizing & Selection
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 569 | 594 | 623 | 662 |
| 3 | Reach | 440 | 465 | 490 | 525 |
| 4 | Stack | 632 | 632 | 637 | 641 |
| 5 | Standover | 700 | 700 | 710 | 720 |
| 6 | HT Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| 7 | HT Length | 110 | 110 | 115 | 120 |
| 8 | ST Angle | 77.9 | 77.9 | 77.8 | 77.8 |
| 9 | CS Length | 440 | 440 | 440 | 440 |
| 10 | BB Drop | 20 | 20 | 20 | 20 |
| 11 | BB Height | 345 | 345 | 345 | 345 |
| 12 | Wheelbase | 1221 | 1246 | 1276 | 1316 |
| 13 | Front Center | 783 | 808 | 838 | 878 |
| 14 | Fork Length | 585 | 585 | 585 | 585 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Frequently Asked Questions
What you need to know about your Kona Process X HD
What frame material does the Process X DH use?
The bike features a robust Kona 6061 Aluminum Butted frame with 162mm of rear wheel travel. This makes it incredibly durable for high-impact park riding, crashes, and shuttle runs compared to carbon alternatives.
What kind of drivetrain does it have?
To keep things durable and simple for bike park use, Kona runs a specialized SRAM 9-speed DH drivetrain (combining a SRAM X7 rear derailleur, X5 shifter, and a tight 11-34t cassette). It is paired with an MRP chainguide and bash guardto prevent chain drops and protect your chainring from rocks.
Does it come with a dropper post?
No. True to its pure downhill pedigree, the Process X DH comes with a rigid Kona OB 31.6mm seatpost. This is a dedicated gravity bike, meaning it is meant for uplifts, shuttles, and chairlifts rather than pedaling uphill.
What brakes are installed?
It features SRAM Guide T hydraulic disc brakes paired with massive 200mm SRAM Centerline rotors on both the front and rear. This ensures consistent, powerful fade-free braking power when you are flying down steep terrain.
How do I choose the right size?
The Process X DH is available in sizes Small, Medium, Large, and Extra Large. Downhill bikes are highly dependent on "Reach" (how roomy the bike feels when standing on the pedals).
- Small: Best for riders ~5'0" to 5'4"
- Medium: Best for riders ~5'4" to 5'8"
- Large: Best for riders ~5'8" to 6'1"
- XL: Best for riders 6'1" and taller
