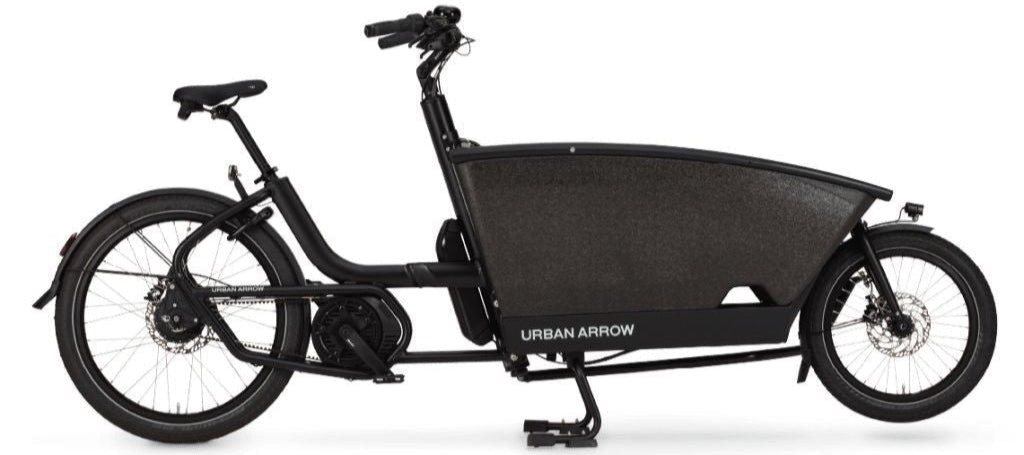

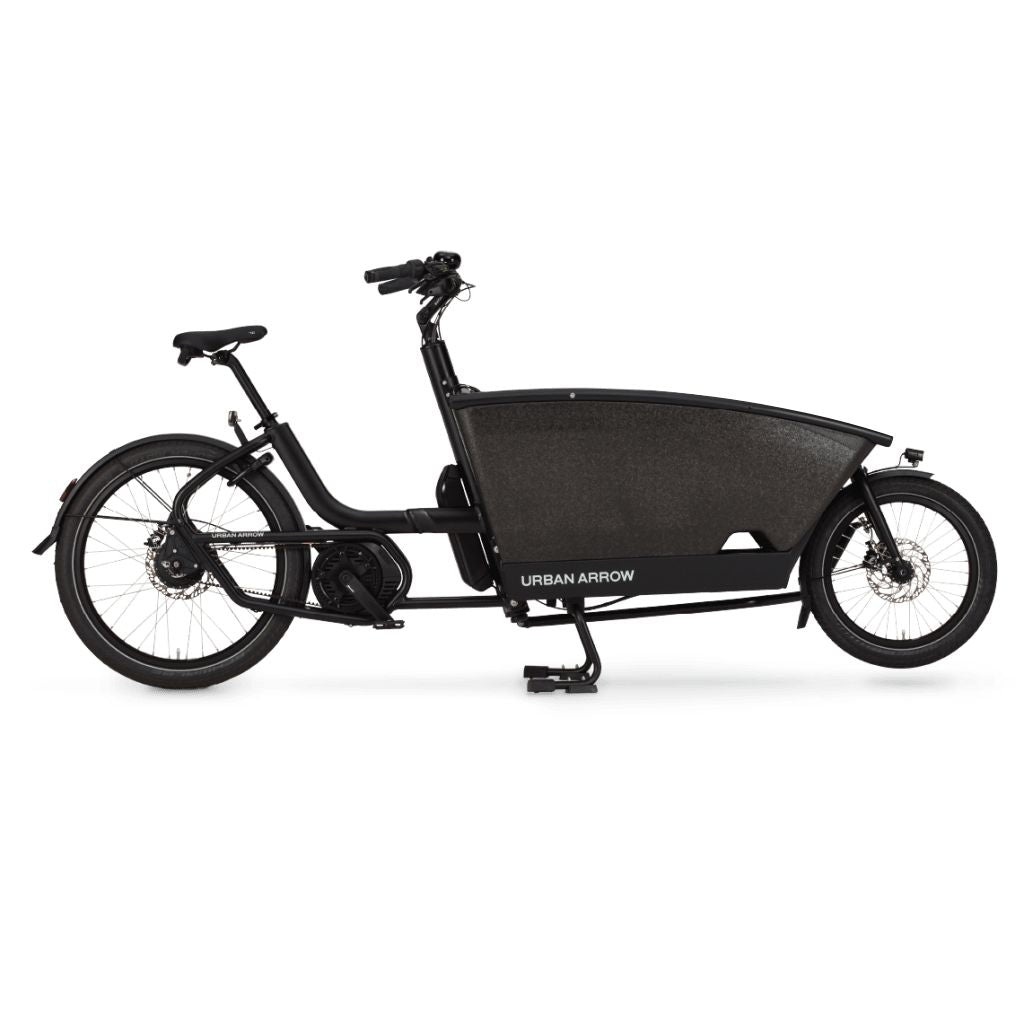

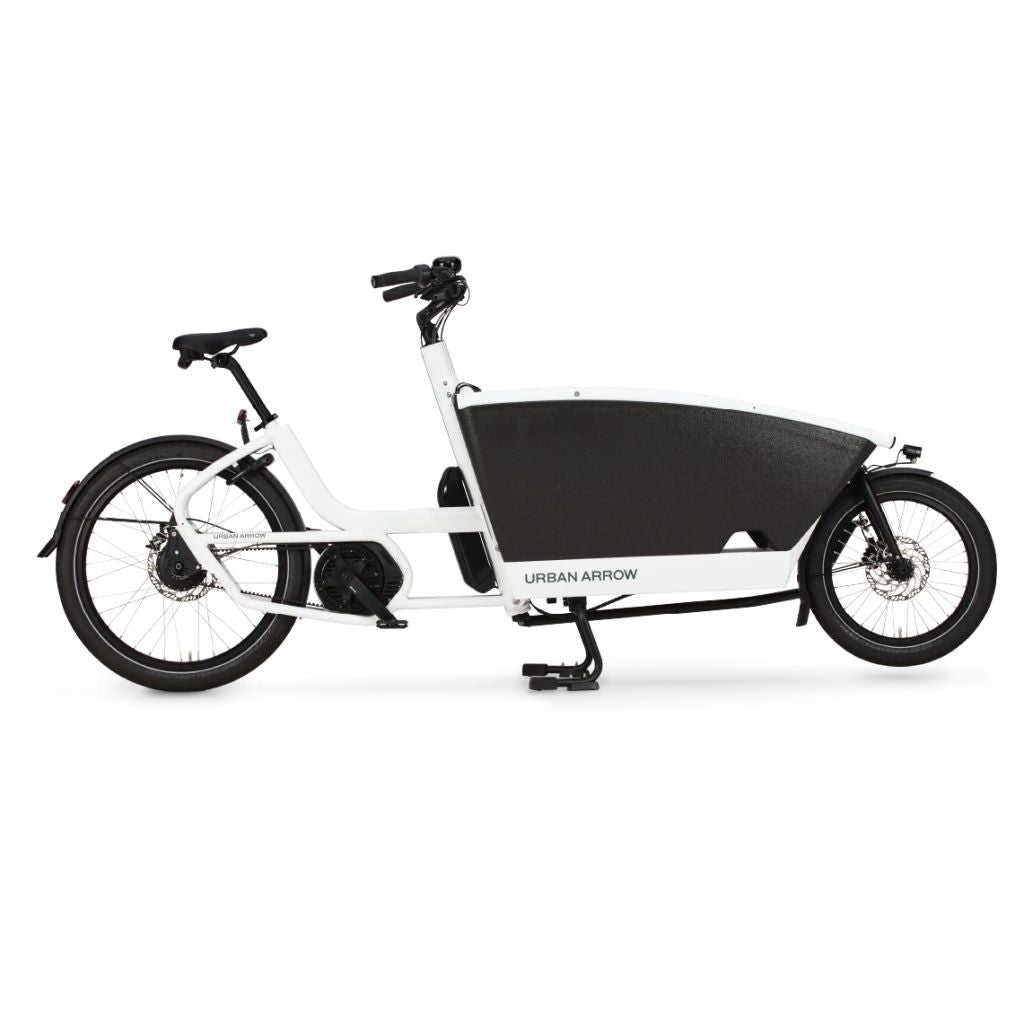

Urban Arrow, Family Cargo Line, Front Loading Electric Cargo Bike
DESCRIPTION
Urban Arrow Family — Even Rush Hour is Fun Hour
Take what matters for you anywhere with the Urban Arrow Family Cargo Line. This bike got both power and speed that can keep up with your hustle. Finally, ditch the car and bring the whole family along for the ride — get some fresh air, explore the woods, or see the sunset on the beach. It is built with a stepless gear shifting system, lightweight frame, and powerful motor that is capable of providing a smooth and stable ride.
Best Features:
- Bosch Motor and Battery - never go wrong with a reputable brand!
- Three-point Seatbelt - enjoyable and safer ride
- 125 kg Capacity - handle more with the frontload box

Iconic Features
The best parts of Family Cargo

Frontload Cargo Space
The Urban Arrow Family has a reliable cargo box made out of expanded polypropylene (EPP). You may safely haul up to 3 kids in it since it is equipped with 3-point seatbelts. This can also haul a total weight of 250 kg (incl. rider, bike, passengers, and luggages).
Kickstand
The kickstand equipped in Urban Arrow Family is designed with robustness that you can fully rely to it when loading and unloading passengers or groceries. This also come in handy for parking, so you may enjoy your time on any of your destination.
Long-Lasting Battery

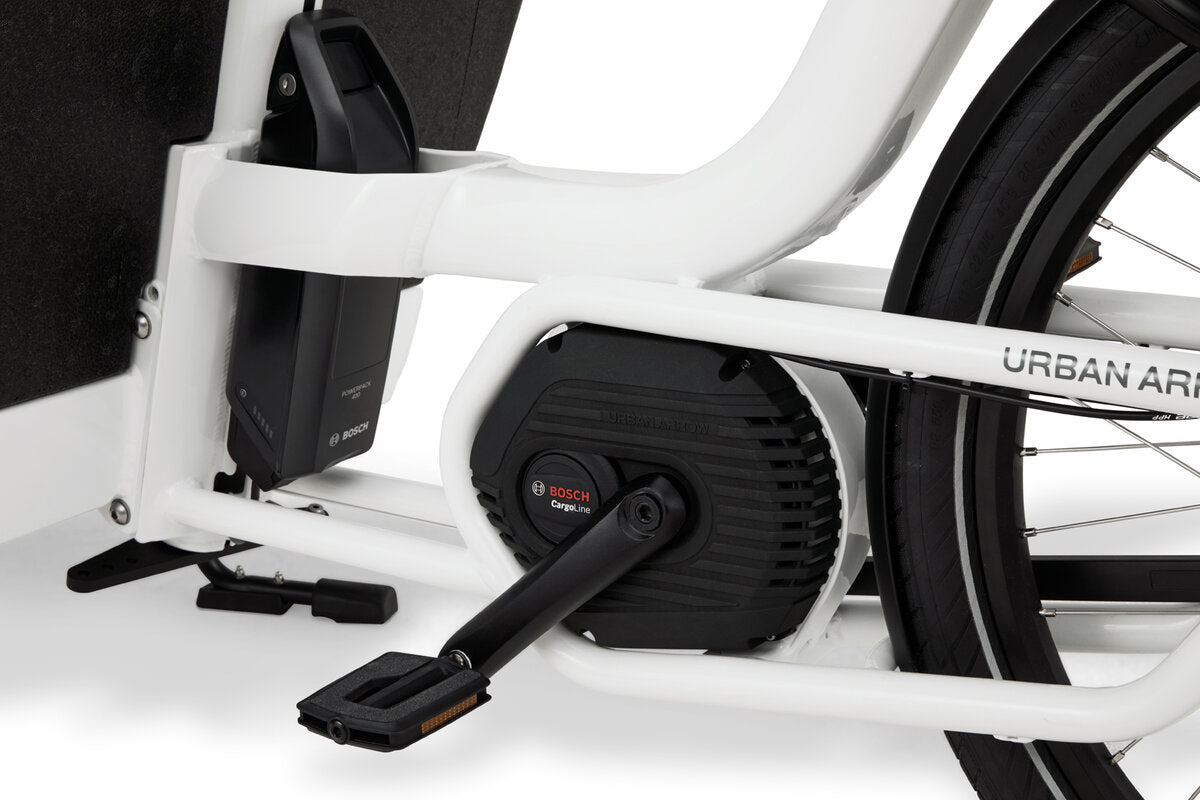

The Urban Arrow Family Cargo Line utilizes the Bosch PowerPack.
Bosch Smart System Cargo Line
The Cargo Line is now also part of the smart system. You benefit from advantages such as the continuous updating of the components via over-the-air updates or the customization of the riding modes via the eBike Flow app. The support of the Cargo Line remains as strong as ever: With its help, you can move heavy loads even up steep climbs.
Kiox 300
As a sporty companion on your tours, Kiox 300 shows you all the relevant information, and takes you reliably to the destination.
EXPLORE THE ANATOMY OF URBAN ARROW FAMILY CARGO
SPECS SHEET
Bosch Cargo Line Gen 4, 250W - max. 85 Nm
Battery Bosch
250 kg
Chain, KMC X1 Silver 100L
Bosch Intuvia
Rear tire: Schwalbe Big Ben Plus 55-559
Front tire: Schwalbe Big Ben Plus 55-406
Rear rim: Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G)
Front rim: Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Rear hub, internal gear Enviolo Cargo, 36H
UA4.2, aluminium
Color: Black or White
Material: EPP Foam
UA rigid fork
Eco, Tour, Sport, Turbo
Enviolo TR - Trekking
Rear brake: Magura Cme Lever right w banjo, 2200mm hose
Brake rotor rear: Magura MDR-C 203mm
Ergotec Moon cruiser 25,4 black
Selle Royal Rio Plus
Rear light: Spanninga Plateo XE 6V-36V
Front light: Lezyne Power E115, 1520mm cable
Satori Trident 31,6 400mm Black
TranzX JD-ST17-2 black 1-1/8 25,4 110mm
Miranda Delta 0 , ISIS
Family Cargo Line in Action
a closer look on how it blends into your life

Ditch The Car — Bring Everyone Along

Safely Hit The Road

Shared Rides to Shared Stories
ALL URBAN ARROW
COMPARISON SHEET
Find which Family Model is suitable for your needs
Bosch Cargo Line Gen 4, 250W - max. 85 Nm
Bosch Cargo Line Gen 4 BES3, 250W - max 85 Nm
Battery Bosch
Bosch PowerPack 545W
250 kg
250 kg
Chain, KMC X1 Silver 100L
Gates Carbon Belt Drive CDX 120
Bosch Intuvia
Bosch LED Remote + KIOX 30
Rear tire: Schwalbe Big Ben Plus 55-559
Front tire: Schwalbe Big Ben Plus 55-406
Rear tire: Schwalbe Super Moto X 62-559
Front tire: Schwalbe Super Moto X 62-406
Rear rim: Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G)
Front rim: Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Rear rim: Ryde Andra 29 26"
Front rim: Ryde Andra 40 20"
Rear hub, internal gear Enviolo Cargo, 36H
Front hub, UA 110x15 Thru axle Cargo
UA4.2, aluminium
Color: Black or White
UA4.5, aluminium
Color: Black or Green
Material: EPP Foam
Material: EPP Foam
UA rigid fork
Suspension fork, Suntour Mobie34 CGO Boost, 20", 60mm
Eco, Tour, Sport, Turbo
Eco, Tour, Sport, Turbo
Enviolo TR - Trekking
Enviolo Twist Display pro
Rear brake: Magura Cme Lever right w banjo, 2200mm hose
Brake rotor rear: Magura MDR-C 203mm
Rear brake: Magura CMe, 8.S Pads
Brake rotor rear: Magura 203mm MDR-C
Adapter rear: Magura QM44 PM180-203
Front brake: Magura CMe, 8.S Pads
Brake rotor front: Magura 180mm MDR-C
Ergotec Moon cruiser 25,4 black
Ergotec Moon cruiser 31.8mm
Selle Royal Rio Plus
Selle Royal Rio Plus with handle
Rear light: Spanninga Plateo XE 6V-36V
Front light: Lezyne Power E115, 1520mm cable
Rear light: Spanninga Plateo XE 6V-36V
Front light: Lezyne Power E115
Satori Trident 31,6 400mm Black
UA seatpost with groove 31,6m
TranzX JD-ST17-2 black 1-1/8 25,4 110mm
Ergotec Integra Octopus
Miranda Delta 0 , ISIS
Miranda Delta 0 , Gen 4
A front-loader cargo, also known as 'bakfiet', is an e-bike with a cargo space between handlebar and the front wheel. This cargo bike has low center of gravity, which balances the bike and gives the rider ease in switching directions.
With a front-loader cargo e-bike, the rider can keep their eye on their cargo space, which weighs twice as much as a regular e-bike can carry.
The average range of the cargo bike is 50km , but it may vary depending on usage. You have the choice to double the range of your cargo bike with the double battery set option that the design allows.
The Family Cargo E-Bike from Urban Arrow can carry up to 4 children (3 in the front and 1 on the rear) or haul a total payload of 250 kg. The children or your luggages are totally safe since the cargo e-bike is equipped with a 3-point seatbelt and a high-quality cargo box made out of expanded polypropylene (EPP).
The Urban Arrow Family cargo bike is 110 cm tall.
The Urban Arrow Family cargo bike is 274 cm long.
The Urban Arrow Family cargo bike weighs 50 kg.
The rider of Urban Arrow cargo bike can weigh up to 125 kg.
An electric cargo bike is an eBike with a cargo space situated in either the rear or front end. It has a high hauling and carrying capacity meant for boarding passengers or loading groceries.
An electric cargo bike can have a total payload of 250kg or more. This includes the bike, the rider, and the cargo.
Yes. An electric cargo bike has the capacity to carry children in terms of weight. However, it is important to use the integrated safety features or accessories to ensure that your children is safety during the ride.
Not really, but a beginner can find it unusual at first. Although, the electric assist makes pedaling easier and it offsets the amount of weight. It is also designed to have low center of gravity, making it very stable. A few rides can help you learn how to handle a lengthier bike.
Absolutely! Smaller families can greatly benefit to an electric bike with an impeccable capacity that can carry 1-4 kids. It can make school trips, groceries, and leisure so much easier and cheaper. It is a very sustainable option that also serves a useful function.
An electric cargo bike is lengthier or heavier than standard design of hitch racks, so it may be difficult to load it on a car. However, you may be able to do it on special cases like loading it on a pick-up truck or a customized hitch rack.
