Gazelle, Medeo T10 LTD
Gazelle Medeo T10 LTD
"A multi-purpose, sporty model"
Commuting to work quickly, going to the city in style or relaxed riding on a rural bicycle route: The versatile and sporty Medeo T10 can be used for anything. Its clever weight distribution, wide tires and ergonomic handlebar grips offer all the riding comfort you could want, and on top of that the powerful motor always provides a nice helping hand when you need it.
Gazelle Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory, where we work everyday to create the perfect Gazelle for you.

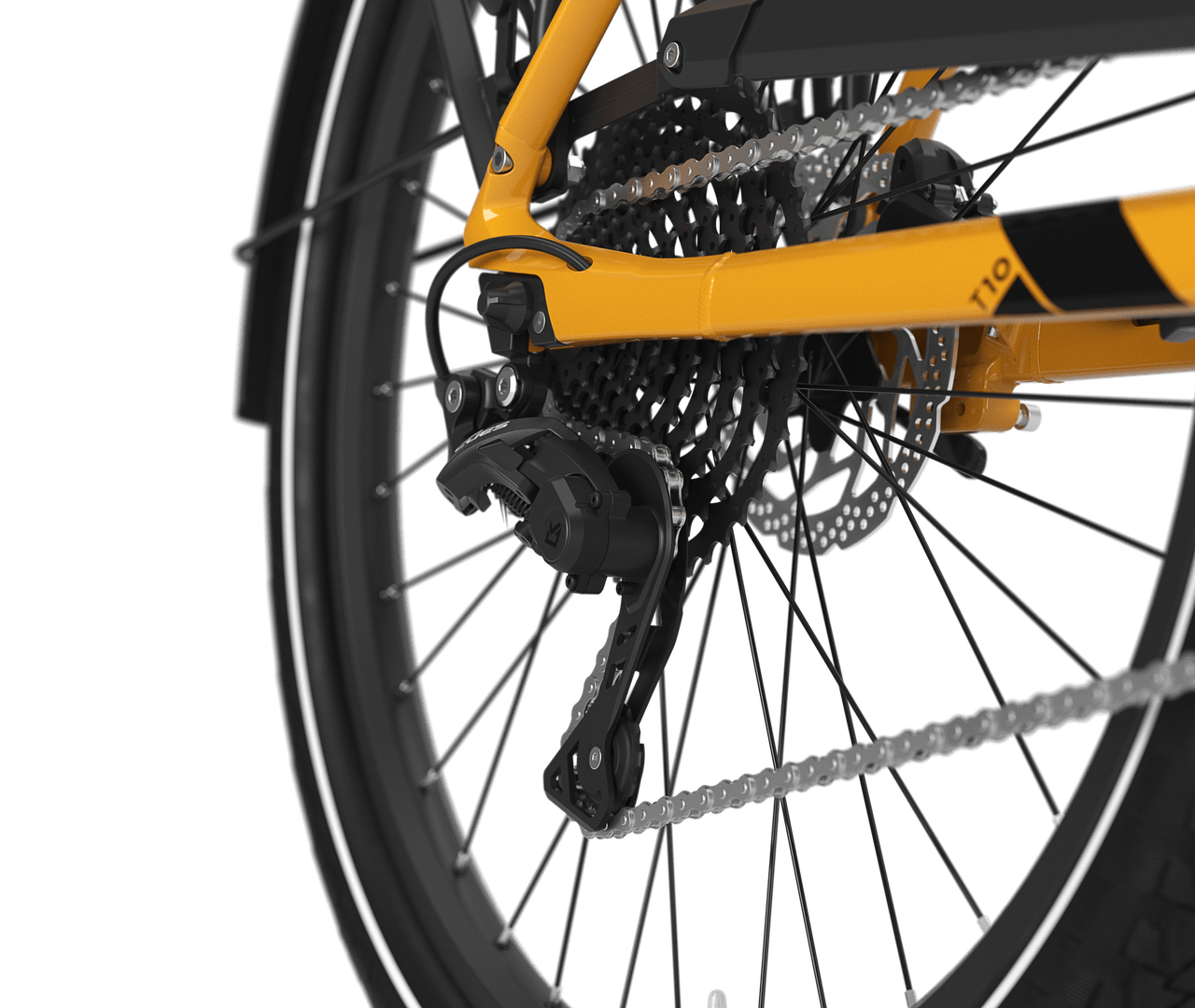

Choose your optimum gearWith the tried-and-tested Shimano derailleur gearing system, you can choose the gear that feels right for you, at any time. Shimano guarantees reliable shifting performance and years of flawless operation. You have 10 gears at your disposal that are easy to operate from the handlebars. The chain is specially reinforced for e-bikes and is designed to cope with the forces generated when shifting gears under load. |
 |
 |
Less jarring on bumpy roadsIn terms of comfort, the Medeo T10 LTD is a great choice. The e-bike has wide, anti-puncture tyres that make it a little bit easier to ride over bumps in the road surface. In addition, the bike has a front suspension fork. A cobbled path will feel like cycling on a smooth tarmacked road. With such great riding comfort, you'll also get off the bike fresher and fitter after your commute or a long ride. |
Hit the road with confidenceWhen you look at it, you may not immediately notice that the Medeo T10 LTD is an e-bike. The mid-drive motor is integrated into the frame design and the battery is housed in the robust down tube. Not only does this give the bike a nice appearance, it also ensures good handling. How? The low position of the motor and battery, in the centre of the bike, lowers the centre of gravity. You therefore experience more stability and better road holding. |
|
|
|

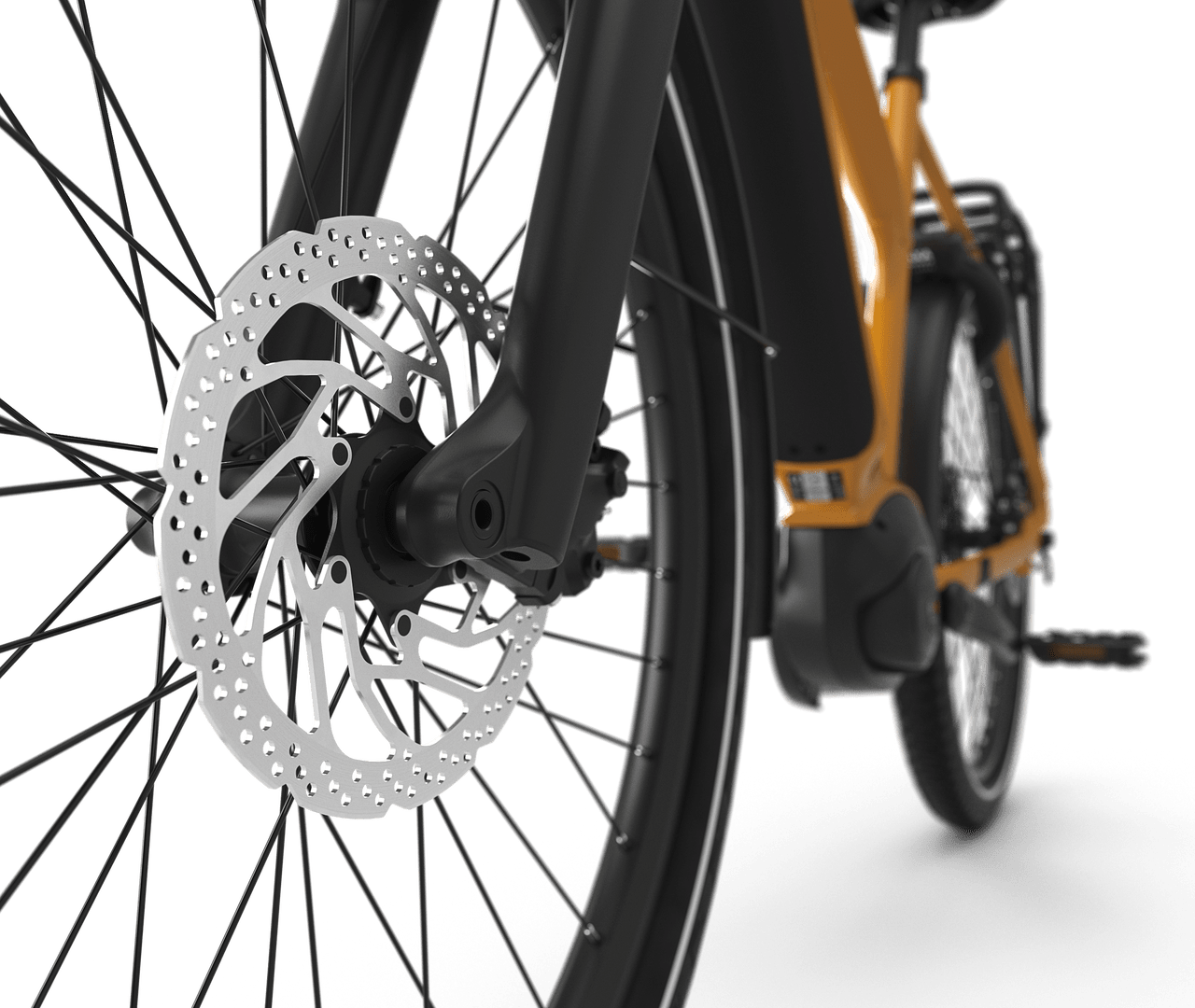

Stop safely every timeWith an advanced e-bike like the Medeo T10 LTD, you want to be able to brake safely without even thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times — even when it's raining or the roads are wet. |
Battery Features
|
Watt-Hours |
500 Wh |
|
Capacity |
13.4 Ah |
|
Battery Charging Time |
7 h 30 m (2 A) 4 h30 m ( 4 A |
|
Battery Position |
Integrated in the frame |
|
Brand |
Bosch |
|
Model |
Intube |
|
Voltage |
36V |
|
Eco |
128 km |
|
Tour |
80 km |
|
Sport |
56 km |
|
Turbo |
48 km |
Bike Specification
|
Color Options |
Pine green gloss, turmeric yellow gloss |
|
Fork Suspension |
Telescope Spiral Spring |
|
System Model |
Performance Line |
|
Motor |
Bosch Smart System Performance Line |
|
Weight |
25 kgs |
|
Maximum Total Weight |
130 kg |
|
Cycling Position |
Sportive |
|
Frame |
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame. |
|
Frame Material |
Aluminum |
|
Cable |
Integrated |
|
Frame Shape |
High-Step, Mid-Step |
|
Frame Size |
45, 50, 55 |
|
Fork |
SR Suntour MOBIE A32 DS |
|
Fork Lockout |
Yes |
|
Front and Rear Wheel |
38 |
|
Front and Rear Rim |
Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance |
|
Front Hub |
Shimano |
|
Wheel Size |
28” |
|
Wheels Tire Front Etrto |
62-584 |
|
Front and Rear Tire |
Continental Contact Plus |
|
Brand Shifters |
Shimano |
|
Front Chainwheel |
38 |
|
Cassette Range |
11-48 |
|
Gear Type |
Derailleur, 10 |
|
Rear Derailleur |
Shimano Cues RD-U6000 |
|
Drivetrain |
Chain |
|
Front Brake Type |
Hydraulic Disc Brake |
|
Brake System Code |
S10 |
|
Front Brake Brand |
Shimano |
|
Primary Rear Brake Model |
BR-MT200 |
|
Front and Rear Brake |
Front: Shimano BR-MT200, 180mm |
|
Rear Brake Lever |
BLMT200 |
|
Handlebar |
Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp |
|
Stem |
Adjustable |
|
Cockpit Handlebar Grip Brand |
Herrmans |
|
Saddle |
DDK |
|
Front Light |
AXA Compactline 35 |
|
Front Light Lux |
35 |
|
Rear Light |
AXA Blueline |
|
Front and Rear Light Energy Source |
Battery |
|
Display |
Bosch Purion 200 |
|
Ebike Walk Assist |
Yes |
|
Type of Display |
LCD |
|
Lock |
AXA |
|
Kickstand |
Ursus Mooi |
|
Luggage Rack |
Aluminum MIK System Carrier |
|
Maximum Load of Rear Carrier |
26 kg |
High-Performing Motor
The Bosch motor gives natural and silent assistance. With this, you can handle practically any terrain and arrive comfortably to your destination.

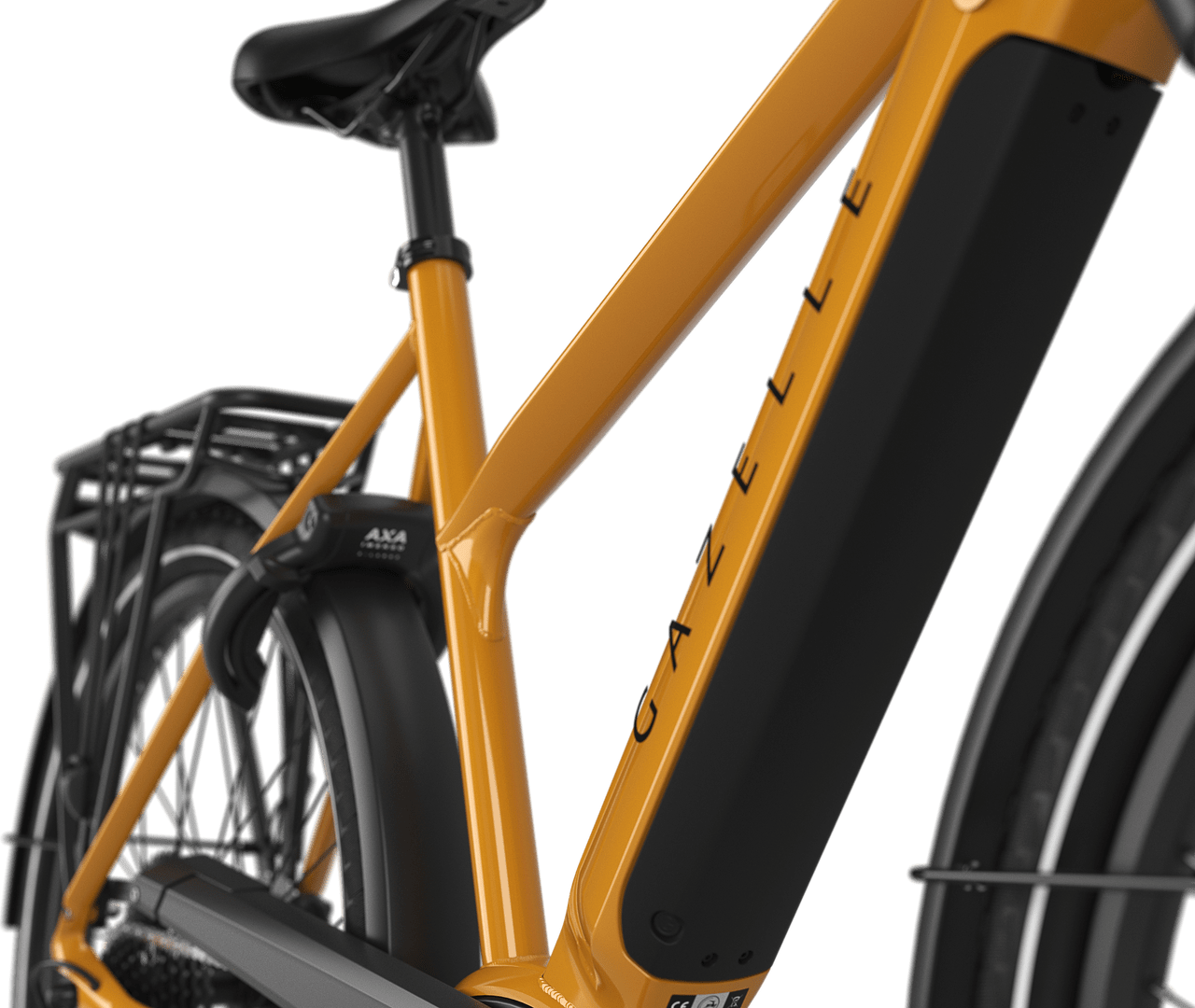

Efficient, integrated power source
Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.
Stable Aluminum Frame
Medeo Family of e-bikes have various options to choose from. They come in high, mid, and low-step variants that will fit your every need.

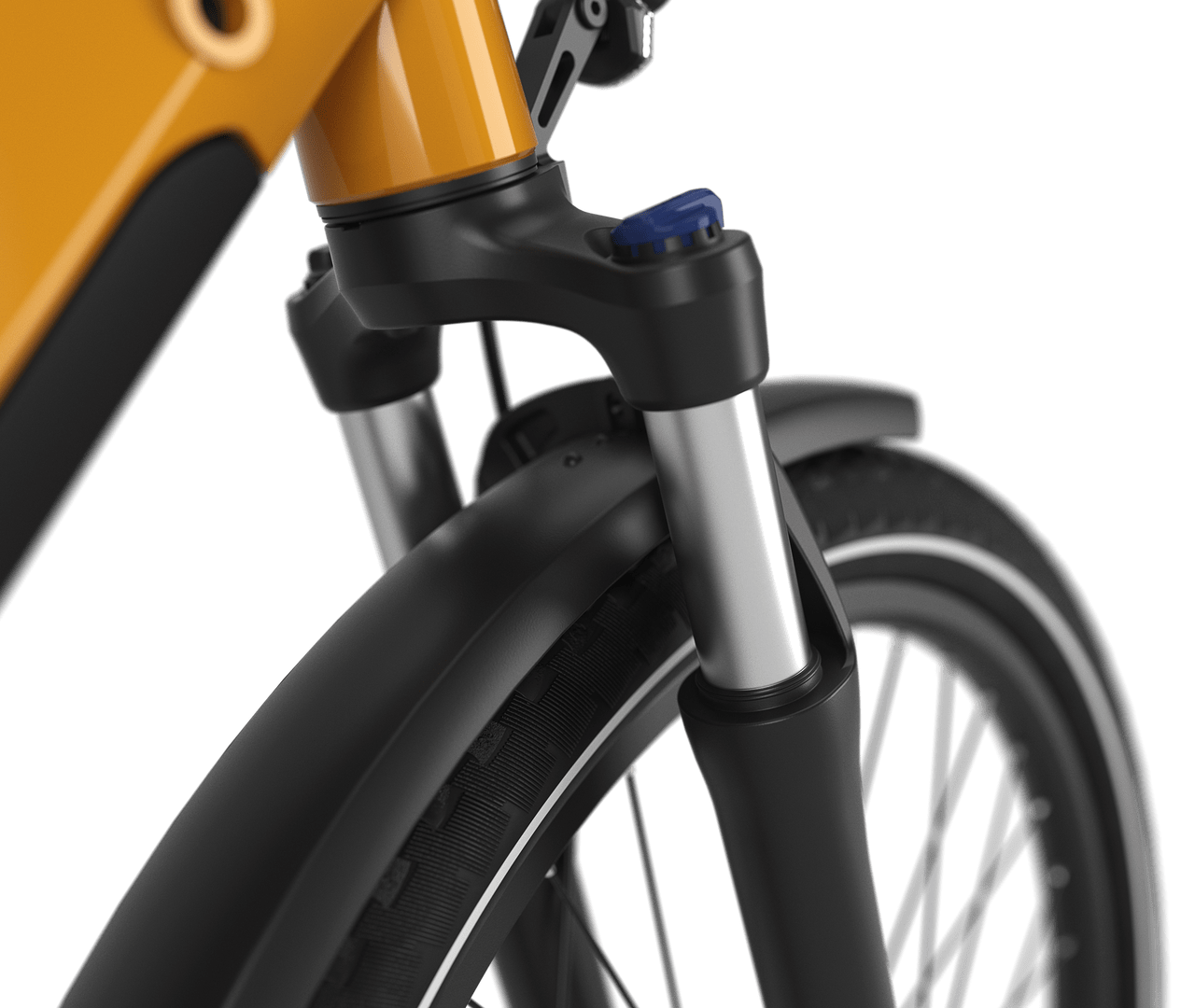

Beautifully Styled Front Fork
Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.
Frequently Asked Questions About Gazelle Medeo E-Bikes
The Gazelle E-Bike Family from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The E-Bikes from the Medeo Family use the 62-584 (27.5x2.4) for T9 and 50-622 (29x2.0) for T10+ from Continental and Schwalbe tires. These brands are upholding the highest industry standards due to their reliable products.
The Medeo family of E-Bikes brings quality and performance on the road. These bikes are both comfortable and sporty, perfect for tackling any terrain.
Gazelle recommends to follow these steps to get the correct bike size for you:
- Stand and position your feet 20 cm apart
- Using a measuring tape, begin measuring from your inseam to the the floor.
- Get the total length and multiply it by 0.68
The answer will be the bike size mostly compatible with you.
