Gazelle, Medeo T9 HMB
Medeo T9 HMB
"Lightweight ebike with a sporty look"
Are you looking for an elegant ebike with sporty DNA? Then take a look at the Medeo T9 HMB: convenient assistance, nine-speed derailleur, powerful disk brakes and great riding comfort.
Gazelle Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you. |
Modern and efficient energy source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. The Medeo T9 has a 545 Wh battery. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. This is handy, as it allows you to charge the battery anywhere. |
![]() |
![]() |
The wind is always at your back with a Bosch Active Line Plus motor The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination. |
Easy on, easy off The Medeo T9's updated, reengineered frame is a return to the orginal spirit of this sporty yet accessible ebike. The new, slightly beefier frame offers an easy access low step design with improved stiffness and stability, while lowering the center of gravity for a balanced ride feel. |
![]() |
![]() |
Smooth and silent support Bosch’s updated Smart System Active Line Plus motor offers smooth and silent support with up to 50 Nm of torque for the Medeo T9, and expanded functionality to enhance the ride experience. This includes the popular adaptive Auto Mode, which delivers a customized, optimized ride based on unique rider inputs measured by the ebike system in real time. |
Hit the road with confidence We developed the Medeo T9 with accessibility in mind. To enhance this even further with this next generation, we have specced smaller wheels (27.5") and our widest tires to date, 62mm Continental Contact Plus tires. In addition, we have added a new XS frame size offer smaller riders (4'9 - 5'2) a chance to experience the joy of Gazelle. |
![]() |
![]() |

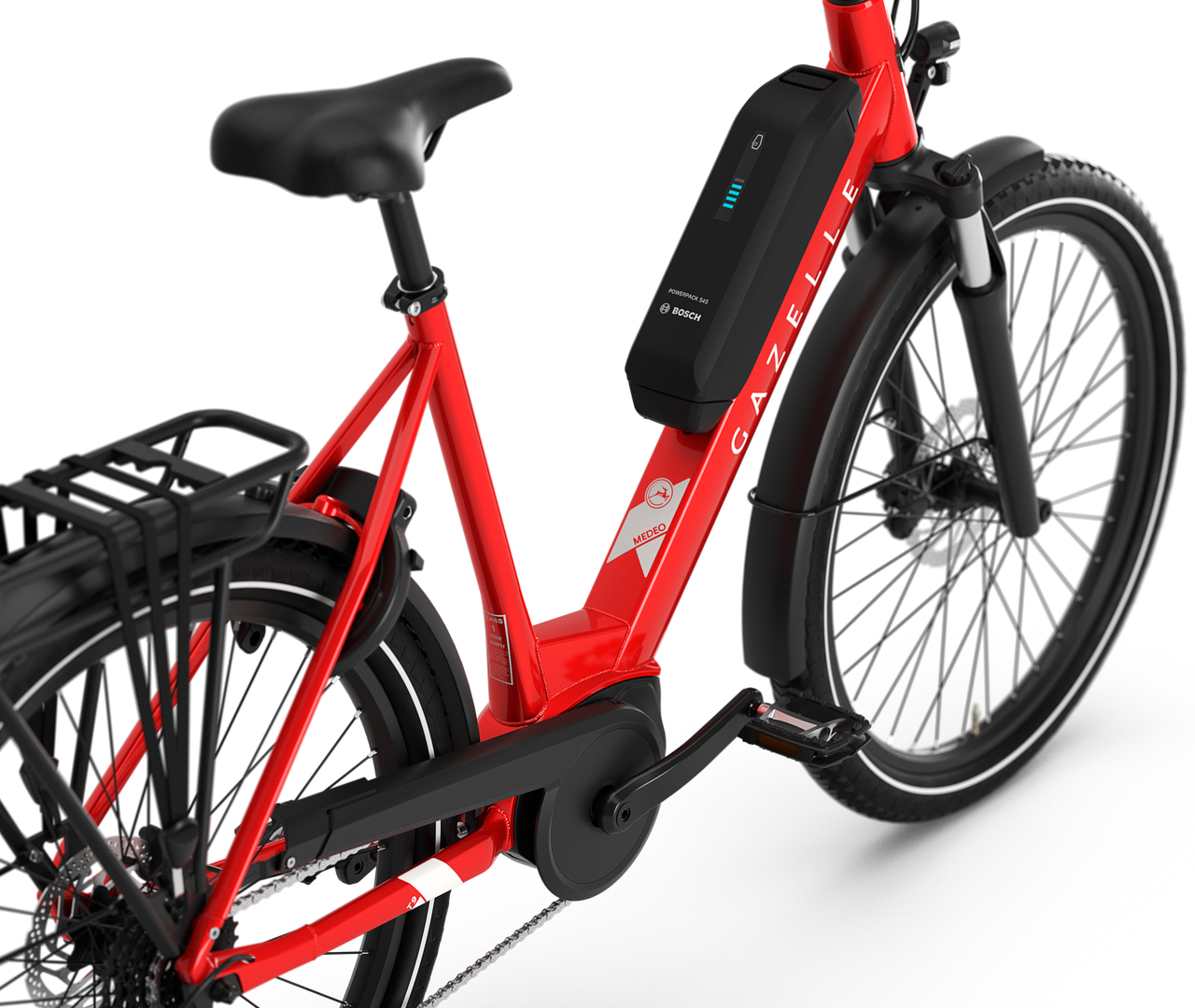

Expand your possibilities With the new edition Medeo T9, we have moved the battery from the rear rack to the down tube. The on-tube battery placement frees up space on the rear rack, allowing us to spec an MIK HD rack and a larger 545 Wh capacity battery, offering extra range to power bigger and bolder rides. |
Battery Features
Watt-Hours |
545 Wh |
Capacity |
15.1 Ah |
Battery Position |
On the frame |
Brand |
Bosch |
Model |
Ontube |
Voltage |
36V |
Eco |
152.8 km |
Tour |
96.5 km |
Auto |
72.4 |
Turbo |
64.3 |
Bike Specification
Color Options |
Ink Blue Gloss Champion Red Gloss Thunder Grey Gloss |
Fork Suspension |
Telescope Spiral Spring |
System Model |
Active Line Plus |
Motor |
Bosch Smart System Active Line Plus |
Engine Position |
Mid |
Maximum Speed |
25 kph 20 mph |
Maximum Torque of Engine |
50 N-m |
Maximum Total Weight |
130 kg |
Cycling Position |
Sportive |
Frame |
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame. |
Frame Material |
Aluminum |
Cockpit Cable |
Integrated |
Frame Shape |
High-Step, Low-Step |
Frame Size |
40, 45, 50, 55 |
Fork |
SR Suntour MOBIE A32 DS |
Fork Lockout |
Yes |
Front and Rear Rim |
Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance |
Front Hub |
Shimano |
Wheel Size |
27.5” |
Wheels Tire Front Etrto |
62-584 |
Front and Rear Tire |
Continental Contact Plus |
Brand Shifters |
Shimano |
Number of Gears |
9 |
Cassette Range |
11-36 |
Gear Type |
Derailleur |
Rear Derailleur |
Shimano Alivio M3100 |
Drivetrain |
Chain |
Front Brake Type |
Hydraulic Disc Brake |
Brake System Code |
S9 |
Front Brake Brand |
Shimano |
Primary Rear Brake Model |
BR-MT200 |
Front Brake |
Shimano BR-MT200, 180mm |
Rear Brake |
Shimano BR-MT200, 160mm |
Rear Brake Lever |
BLMT200 |
Handlebar |
Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp |
Stem |
Adjustable |
Cockpit Handlebar Grip Brand |
Herrmans |
Saddle |
DDK |
Front Light |
AXA Compactline 35 |
Front Light Lux |
35 |
Rear Light |
AXA Blueline |
Front and Rear Light Energy Source |
Battery |
Display |
Bosch Purion 200 |
Ebike Walk Assist |
Yes |
Type of Display |
LCD |
Kickstand |
Ursus Mooi |
Luggage Rack |
Aluminum MIK System Carrier |
Maximum Load of Rear Carrier |
25 kg |


High-Performing Motor
The Bosch motor gives natural and silent assistance. With this, you can handle practically any terrain and arrive comfortably to your destination.
Efficient, integrated power source
Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.
Stable Aluminum Frame
Medeo Family of e-bikes have various options to choose from. They come in high, mid, and low-step variants that will fit your every need.
Beautifully Styled Front Fork
Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.
Frequently Asked Questions About Gazelle Medeo E-Bikes
The Gazelle E-Bike Family from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The E-Bikes from the Medeo Family use the 62-584 (27.5x2.4) for T9 and 50-622 (29x2.0) for T10+ from Continental and Schwalbe tires. These brands are upholding the highest industry standards due to their reliable products.
The Medeo family of E-Bikes brings quality and performance on the road. These bikes are both comfortable and sporty, perfect for tackling any terrain.
