Gazelle, Medeo T9, Electric Bike
DESCRIPTION
"Lightweight ebike with a sporty look"
Are you looking for an elegant ebike with sporty DNA? Then take a look at the Medeo T9 HMB: convenient assistance, nine-speed derailleur, powerful disk brakes and great riding comfort.
|
|
Modern and efficient energy source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. The Medeo T9 has a 545 Wh battery. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. This is handy, as it allows you to charge the battery anywhere. |
 |

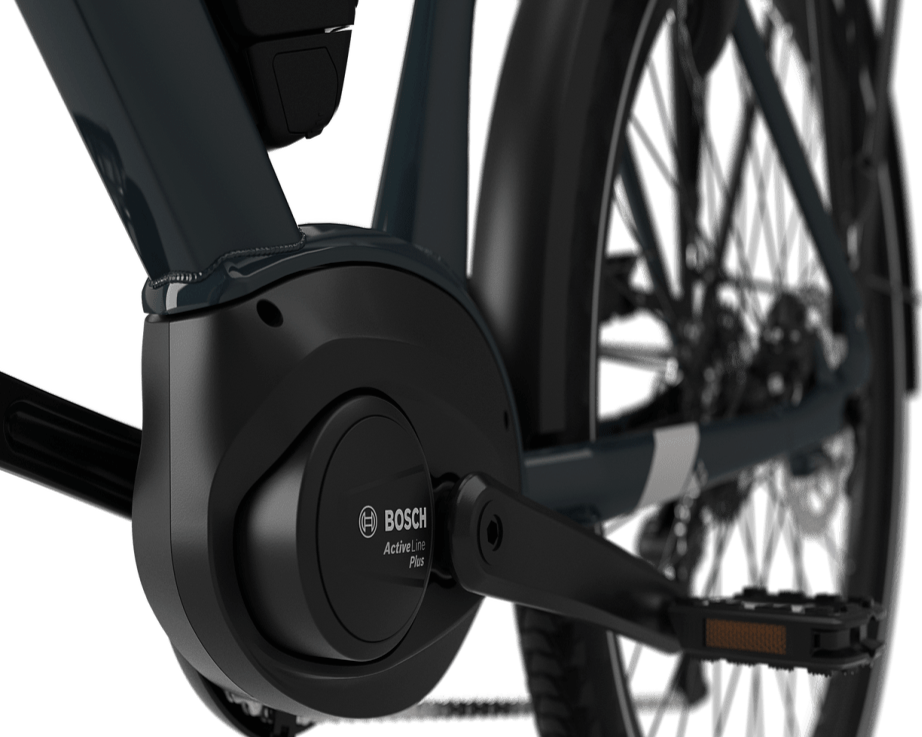

The wind is always at your back with a Bosch Active Line Plus motor The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination. |
|
|
Easy on, easy off The Medeo T9's updated, reengineered frame is a return to the orginal spirit of this sporty yet accessible ebike. The new, slightly beefier frame offers an easy access low step design with improved stiffness and stability, while lowering the center of gravity for a balanced ride feel. |
 |
Smooth and silent support Bosch’s updated Smart System Active Line Plus motor offers smooth and silent support with up to 50 Nm of torque for the Medeo T9, and expanded functionality to enhance the ride experience. This includes the popular adaptive Auto Mode, which delivers a customized, optimized ride based on unique rider inputs measured by the ebike system in real time. |
|
|
Hit the road with confidence We developed the Medeo T9 with accessibility in mind. To enhance this even further with this next generation, we have specced smaller wheels (27.5") and our widest tires to date, 62mm Continental Contact Plus tires. In addition, we have added a new XS frame size offer smaller riders (4'9 - 5'2) a chance to experience the joy of Gazelle. |
 |

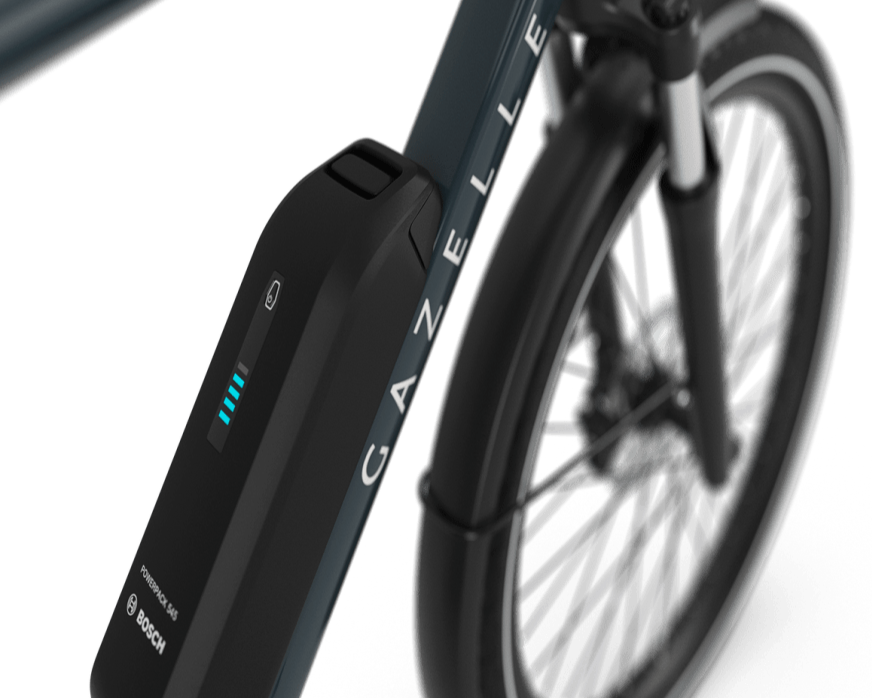

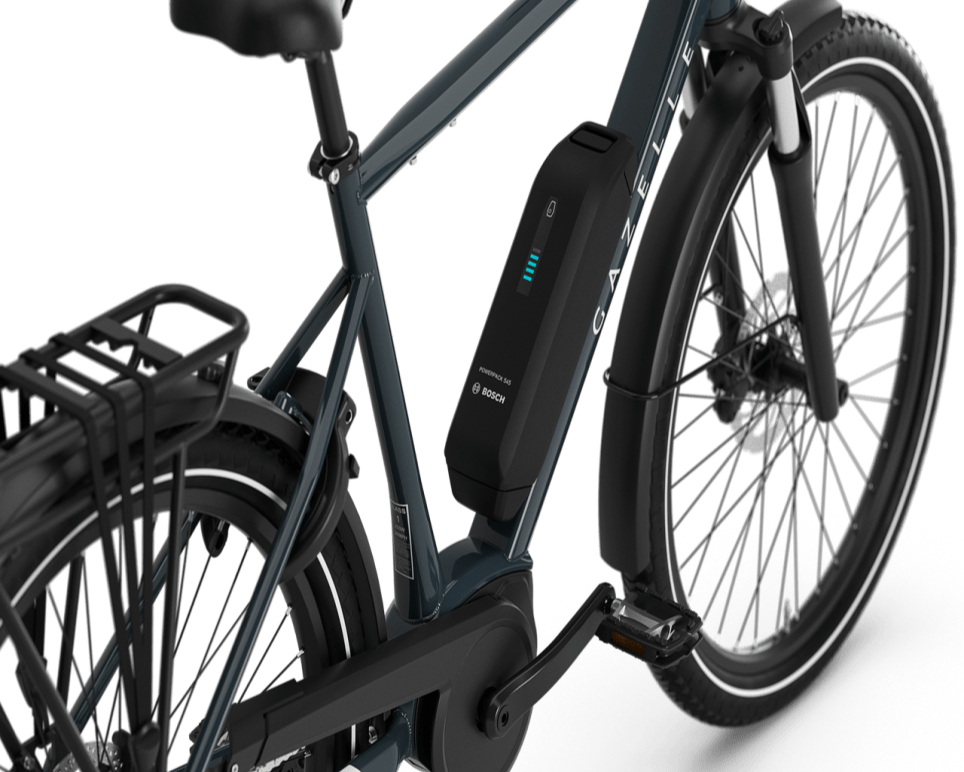

Expand your possibilities With the new edition Medeo T9, we have moved the battery from the rear rack to the down tube. The on-tube battery placement frees up space on the rear rack, allowing us to spec an MIK HD rack and a larger 545 Wh capacity battery, offering extra range to power bigger and bolder rides. |
Product Specifications of T9 Models
Find which Gazelle Medeo E-Bike is suitable for your needs.
Check Out Specs of T10 Models
Active Line Plus, Mid, 25 kph, 50 Nm
Smart System Active Line, Mid, 25 kph, 40 Nm
545 Wh, 15.1 Ah
400 Wh, 11.1 Ah
Bosch Purion 200
Bosch Purion 200
27.5"
27.5"
Ryde Big Bull, Double-walled Aluminum
Ryde Big Bull, Double-walled aluminum
Shimano
Shimano
62-584, Continental Contact Plus
62-584, Continental Contact Plus
Aluminum, High-/Low-Step, Cockpit Cable Integration
Aluminum, Low-Step
SR Suntour MOBIE A32 DS, Aluminum, Telescope, Spiral Spring
SR Suntour MOBIE A32 DS, Aluminum, Telescope, Spiral Spring
Derailleur Type, 9 Gears
Derailleur Type, 9 Gears
Chain, Shimano Alivio M3100
Chain, Shimano Alivio M3100
Hydraulic Disc Brake, Shimano BR-MT200
Hydraulic Disc Brake, Shimano BR-MT200
Herrmans DD36, Stem Adjustable
Herrmans DD36, Stem Adjustable
DDK
DDK
AXA Compactline, 35 Lux
R: AXA Blueline
F: AXA Compactline 35, 35 Lux
R: AXA Blueline
ART**
ART**
Ursus Mooi
Ursus Mooi
55 lbs
55 lbs
Product Specifications of T10 Models
Find which Gazelle Medeo E-Bike is suitable for your needs.
Check Out Specs of T9 Models
Bosch Performance Line, Mid, 32 kph, 65 Nm
Bosch Smart System Performance Line, Mid, 32 kph, 75 Nm
500 Wh, 13.5 Ah
500 Wh, 13.4Ah
Bosch Purion
Bosch Purion 200
F: 38
R:
F: 38
R:
Mach1 ER-10, Double-walled Aluminum
Ryde Big Bull, Double-walled aluminum
Shimano
Shimano
47-622, Schwalbe Energizer Plus
62-584, Continental Contact Plus
Aluminum, High-/Mid-Step, Cockpit Cable Integration
Aluminum, High-/Mid-Step
SR Suntour NEX E25 HLO 50mm, Aluminum, Telescope, Spiral Spring
SR Suntour MOBIE A32 DS, Aluminum, Telescope, Spiral Spring
Derailleur Type, 10 Gears
Derailleur Type, 10 Gears
Chain, Shimano Deore
Chain, Shimano Cues RD-U6000
Hydraulic Disc Brake, Shimano BR-MT200
Hydraulic Disc Brake, Shimano BR-MT200
Herrmans DD36, Stem Adjustable
Herrmans DD36, Stem Adjustable
DDKsportive
DDK
F: AXA Compactline 35, 35 Lux
R: AXA Blueline
F: AXA Compactline 35, 35 Lux
R: AXA Blueline
Axa
Axa
Ursus Mooi
Ursus Mooi
55 lbs
59 lbs
Display
Bosch Purion (T10) and Purion 200 (T9, T9 City, and T10 LTD) are the displays for Medeo E-Bikes.
Powerful and Controlled Braking
If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
Various Frame Options
Gazelle Medeo E-Bikes have numerous models with different frame types, perfect for different preferences.
Bosch Mid-drive Motor
The Medeo E-Bikes feature a powerful Bosch mid-drive motor. Neither headwinds nor hills are a problem with this bike. With high torque you can handle any terrain, perfect for different cycling demands.
Integrated Bosch Lithium Ion Battery
Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. You can easily remove it from the bike with a key that also works on the café lock.
FAQs
About Gazelle Medeo E-Bikes
The Medeo E-Bikes from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The Medeo E-Bikes use the 62-584 (27.5x2.4) tires, which is designed to mitigate the risks of punctured tires. These tires are from brands that upholds the highest industry standards due to their reliable products.
The rear cargo's weight limit for Medeo E-Bikes ranges from 55 to 59 lbs.
Medeo E-Bikes will be a worthy companion for your daily adventures since it is designed with a good frame and a high-quality hydraulic disc brakes, which can give you confidence on the road.
Gazelle recommends to follow these steps to get the correct bike size for you:
- Stand and position your feet 20 cm apart
- Using a measuring tape, begin measuring from your inseam to the the floor.
- Get the total length and multiply it by 0.68
The answer will be the bike size mostly compatible with you.
