Gazelle, Ultimate C380 HMB

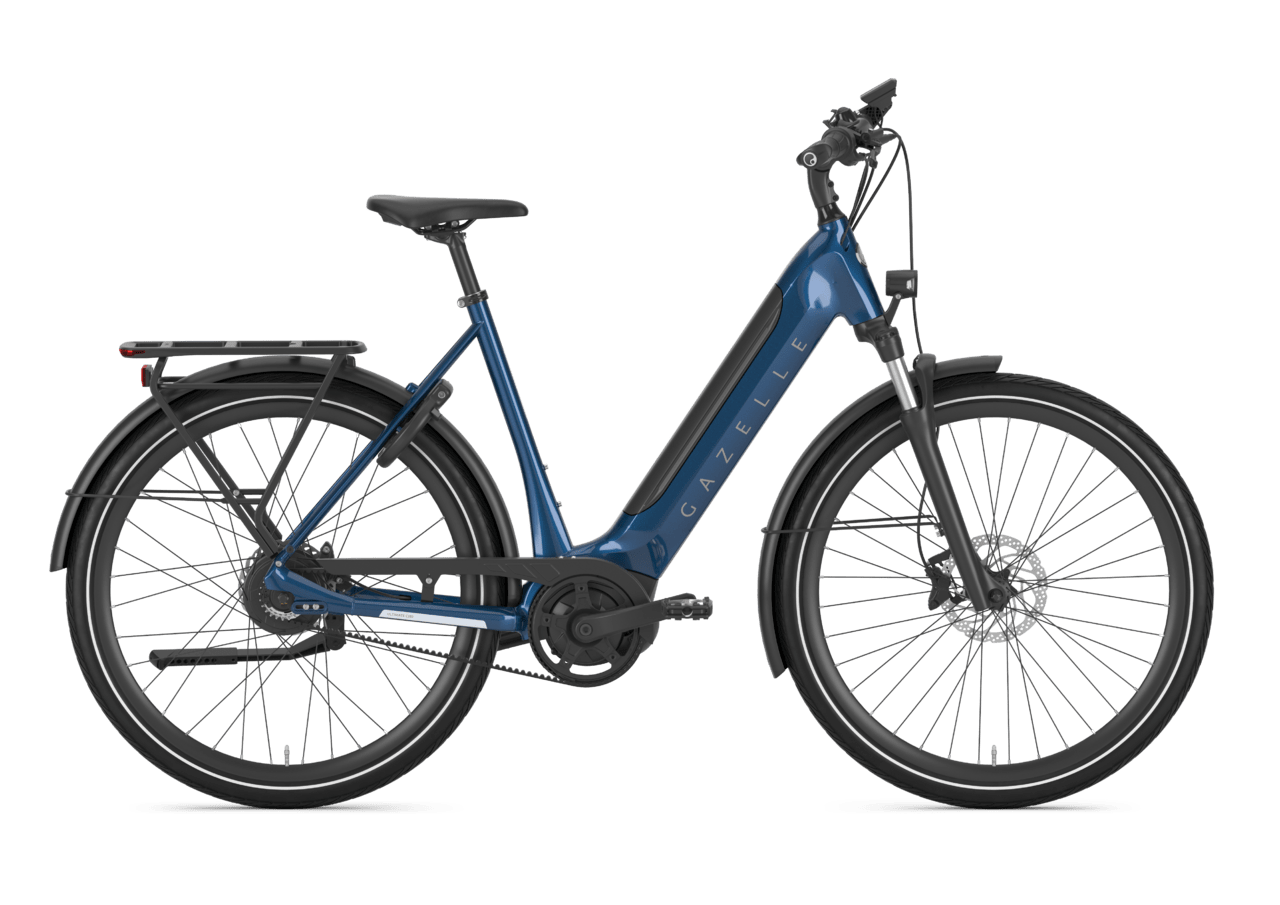

Ultimate C380 HMB
"A city bike and touring bike in one"
One plus one is three. The Ultimate C380 is the perfect combination of a comfortable touring bike and a sporty city bike. It provides an excellent ride, taking you from A to B in style, speed, and convenience.
Gazelle Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you. |
Efficient, integrated power source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere. |
|
The wind is always at your back with a Bosch Performance Line motor The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist. |
|
Change gears seamlessly, every time Enviolo's robust, stepless shifting gear hub lets you switch between gears effortless, whether you are pedaling, coasting, or standing still. So if you're waiting at a red light, you can easily downshift to the optimal gear to easily cross an intersection. Shifting is extra smooth in combination with a durable belt drive. |
|
Enjoy low maintenance durability The Ultimate C380 HMB has a Gates carbon belt drive rather than a standard chain, which has a number of benefits. You don't have to lubricate it, which means it doesn't attract dirt. The belt is also lighter than a chain and runs quietly, even when the ebike is fully loaded. And the belt's durability is unmatched: it lasts three to five times longer than a chain, making it a sustainable and enduring choice. |
|
Safe and controlled braking With an advanced ebike like the Ultimate C380 HMB, you want to be able to brake safely without thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the power and precision for controlled braking at all times and in all conditions, including when it's raining or the roads are wet. |
|
Support that always feels natural Whenever and wherever you cycle, you can enjoy a reassuring push from behind thanks to the Bosch mid-drive motor, especially when you're tackling a steep hill or loaded up with shopping. We've equipped the Ultimate C380 HMB with the next gen Performance Line mid-drive motor with 75 Nm of torque. Support is powerful yet still feels completely natural.
|
Battery Features
Watt-Hours |
625 Wh |
Capacity |
16.7 Ah |
Battery Charging Time |
4h 54m (4A) |
Battery Position |
Integrated in the frame |
Brand |
Bosch |
Model |
Intube |
Voltage |
36V |
Eco |
160.9 km |
Tour |
96.5 km |
Auto |
72.4 km |
Turbo |
64.3 km |
Bike Specification
Color Options |
Denim Blue Gloss Mallard Blue Gloss |
Fork Suspension |
Telescope, Spiral Spring |
System Model |
Performance Line |
Motor |
Bosch Smart System Performance Line |
Engine Position |
Mid |
Maximum Speed of Ebike |
25 kph 20 mph |
Maximum Torque |
75 N-m |
Weight |
25.6 kgs |
Maximum Total Weight |
130 kg |
Cycling Position |
Active |
Frame |
Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
Frame Material |
Aluminum |
Cockpit Cable |
Integrated |
Frame Shape |
Low-Step |
Frame Size |
46, 53, 57 |
Fork |
SR Suntour NVX30, Aluminum |
Fork Lockout |
Yes |
Front Wheel |
55, Gates |
Rear Wheel |
24, Gates |
Front and Rear Rim |
Dutch 19 Dutch 19, Double-walled aluminium for extra strong and efficient cycling performance |
Front Hub |
Shimano |
Rear Hub |
Enviolo Trekking Manual |
Wheel Size |
28" |
Wheels Tire Front Etrto |
50-622 |
Front and Rear Tire |
Schwalbe Energizer Plus |
Brand Shifters |
Enviolo |
Number of Gears |
Stepless |
Front Chainwheel |
55 |
Gear Type |
Hub |
Drivetrain |
Belt |
Front Brake Type |
Hydraulic Disc Brake |
Brake System Code |
SE |
Front Brake Brand |
Shimano |
Primary Rear Brake Model |
BR-MT410 |
Front Brake |
Shimano BR-MT420, 180mm |
Rear Brake |
Shimano BR-MT410, 160mm |
Rear Brake Lever |
BLMT420 |
Handlebar |
Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands |
Stem |
Adjustable |
Cockpit Handlebar Grip Brand |
Ergon |
Saddle |
Selle Royal Essenza Plus |
Front Light |
Herrmans MR8 |
Front Light Lux |
60 |
Rear Light |
Spanninga Commuter Glow |
Front and Rear Light Energy Source |
Battery |
Display |
Bosch Kiox 300, Removable |
Ebike Walk Assist |
Yes |
Type of Display |
LCDc |
Lock |
AXA |
Kickstand |
Ursus Mooi |
Luggage Rack |
Aluminum MIK System Carrier |
Maximum Load of Rear Carrier |
27 kg |
Stable Aluminum Frame
The headset is angled 70,5° and the saddle is angled 71,5° for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Efficient, integrated power source
Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.
Beautifully Styled Front Fork
Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.
High-Performing Motor
The Bosch motor gives natural and silent assistance. With this, you can handle practically any terrain and arrive comfortably to your destination.
Frequently Asked Questions About Gazelle Ultimate E-Bikes
The Ultimate E-Bike Family from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The E-Bikes from Ultimate Family use the 47-622 (28x1.75) and 50-622 (29x2.0) Schwalbe Energizer Plus tires. The 622mm tires are designed for 700c bike wheels, while Energizer Plus tires are highly reliable because they are durable, lightweight, have a high rotational speed, and have good traction.
The weight limit for Ultimate E-Bikes is roughly 200 lbs.
The Ultimate family of E-Bikes brings sophistication and luxury on the road. These bikes are both comfortable and sporty, perfect for tackling any terrain.
