Gazelle, Ultimate C8
Ultimate C8
"Comfortable city bike with a sporty look"
Interested in a comfortable ebike with sporty looks? With modern styling, a stiff and compliant frame, and low maintenance components, the Ultimate C8 HMB is your choice!
Gazelle Craftsmanship
|
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you. |
|

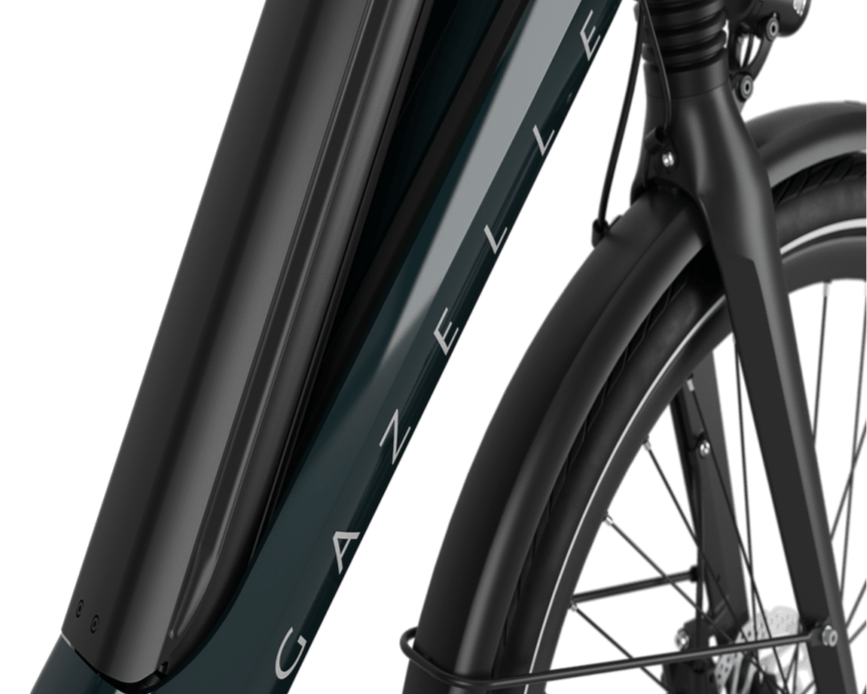

Efficient, integrated power source Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere. |
 |
 |

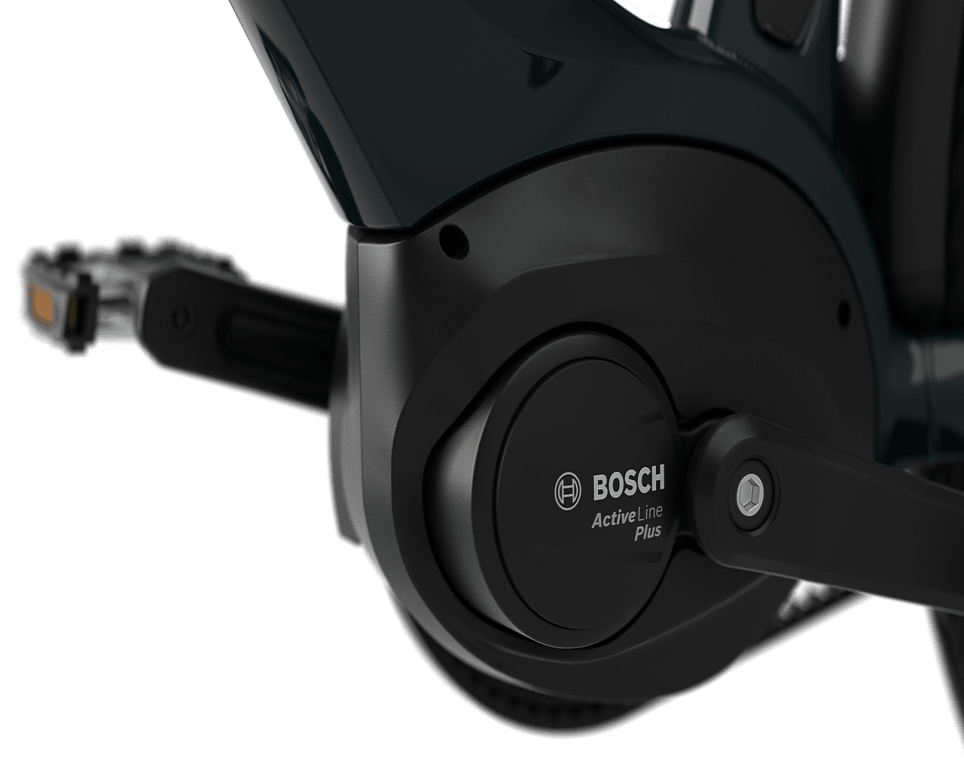

The wind is always at your back with a Bosch Active Line Plus motor The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination. |
|

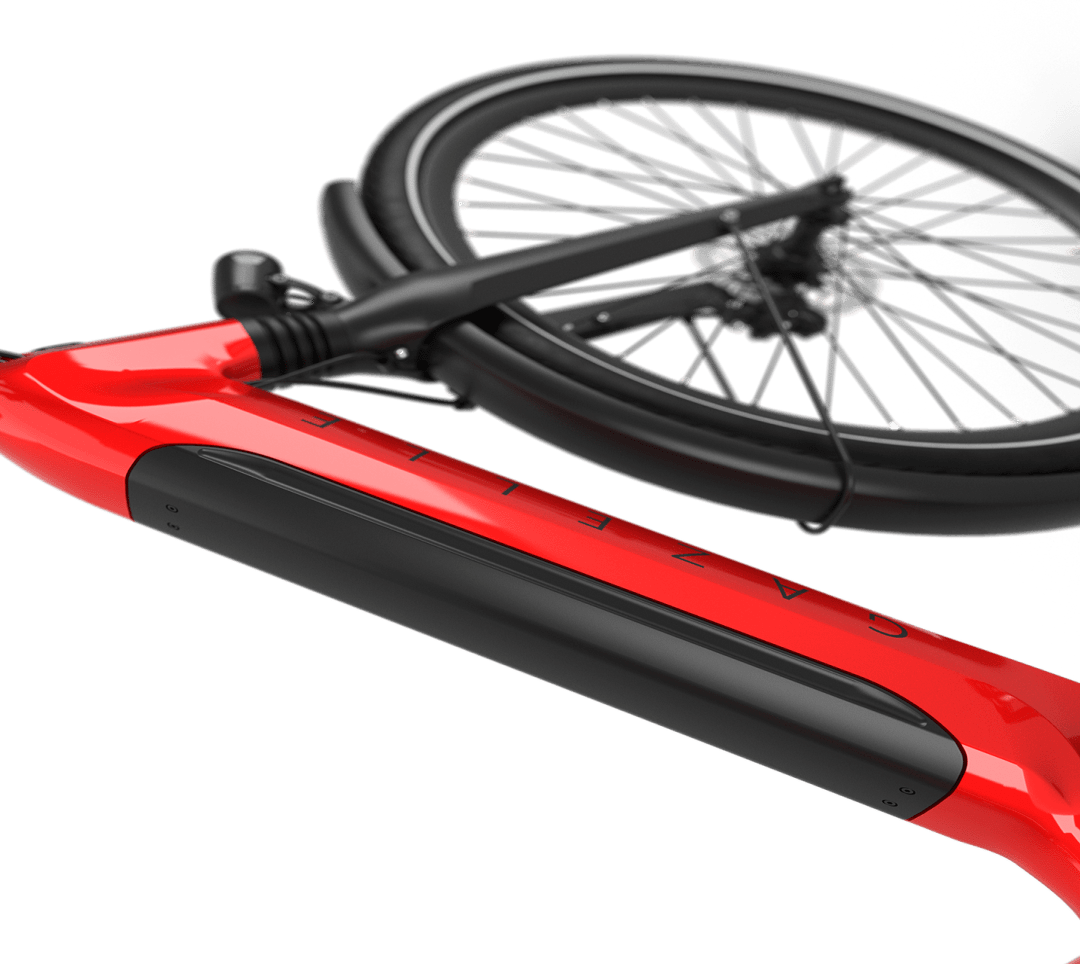

An award-winning frame The Ultimate is the pride of our Gazelle ebike family. Recognized for its winning design, the Ultimate is known for its stability as well as its sleekness. Combining sporty rigidity with a comfortable active geometry, the accessible low, step-through frame is easy to mount and dismount, and maintains a low center of gravity. The battery is hidden in the down tube, not only creating a modern look, but also providing a balanced ride feel so you can cycle with confidence in any situation. |
 |
 |

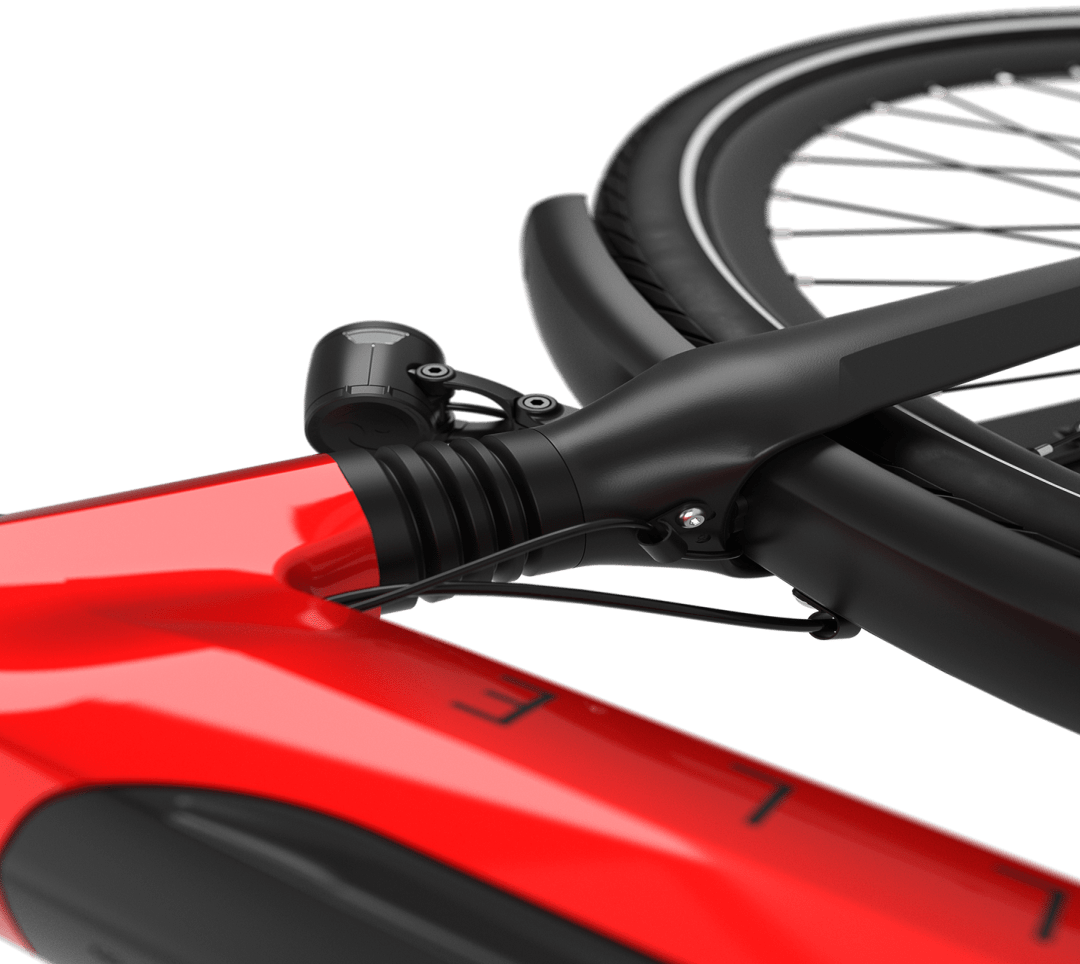

Hidden comfort At first glance, the Ultimate C8's beautifully styled front fork is a logical addition to its sleek design. Together, they create a distinctive and stylish look. But on closer inspection, you will notice something else: the accordion connection between the frame and fork. Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort. |
|

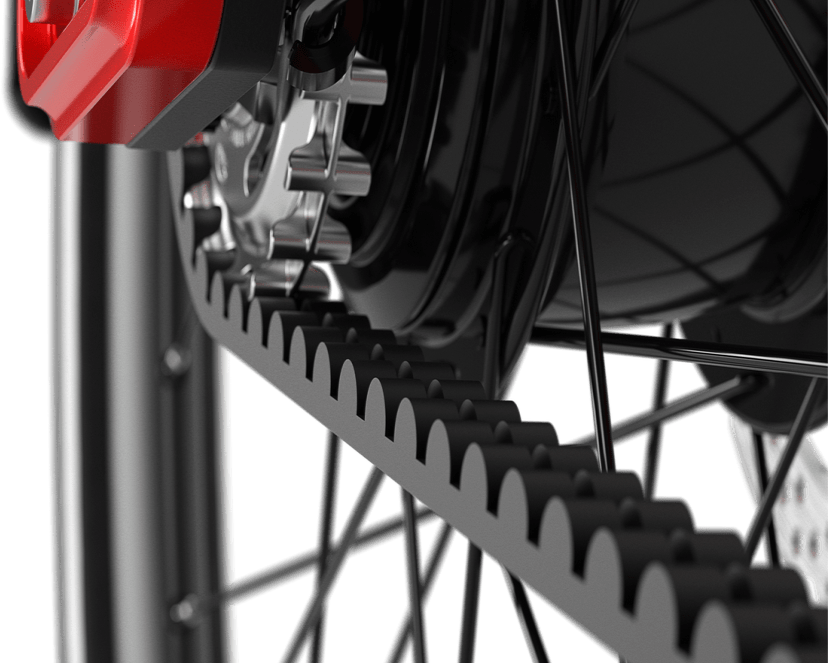

Low maintenance ease Minimum maintenance equals maximum enjoyment. With the Shimano Nexus 8 system, eight gears are built into the rear hub of the wheel. They are protected against the wind and weather, reducing wear and maintenance. Combined with a durable and hassle-free Gates carbon belt drive, bike maintenance is kept to a minimum, shifting is smooth and silent, and your bike's longevity is all but guaranteed! |
 |
 |

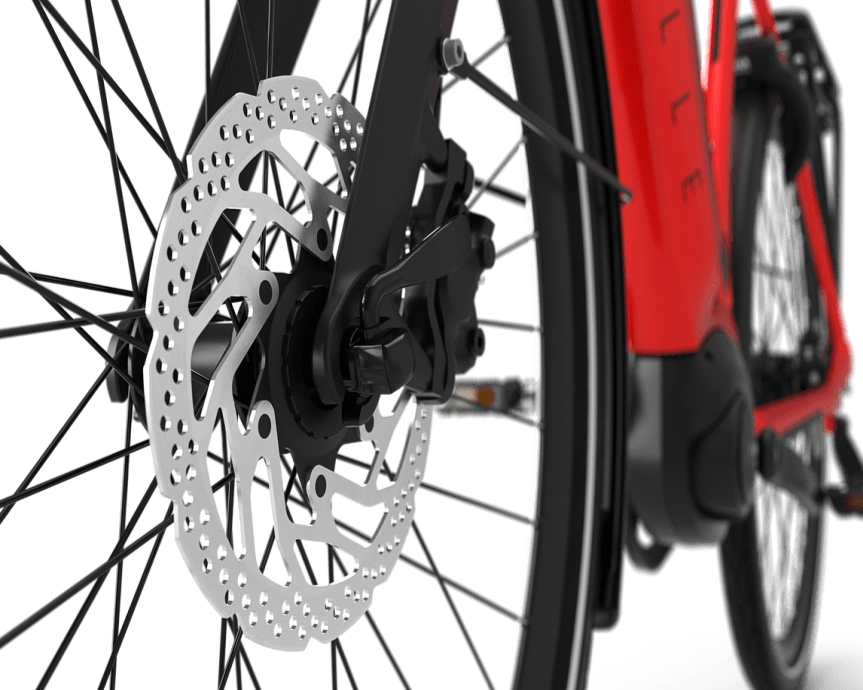

Powerful and controlled braking With an advanced ebike like the Ultimate C8 HMB, you want to be able to brake safely and confidently without thinking. Hydraulic disc brakes are therefore indispensable, as they provide the power and precision for controlled braking at all times — even when it's raining. With hydraulic disc brakes, you can depend on responsive, well-modulated, and high performance stopping power in all conditions. |
Battery Features
|
Watt-Hours |
500 Wh |
|
Capacity |
13.4 Ah |
|
Battery Charging Time |
7h 30m (2A) |
|
Battery Position |
Integrated in the frame |
|
Brand |
Bosch |
|
Model |
Intube |
|
Voltage |
36V |
|
Eco |
144.8 km |
|
Tour |
88.5 km |
|
Auto |
64.3 km |
|
Turbo |
56.3 km |
Bike Specification
|
Color Options |

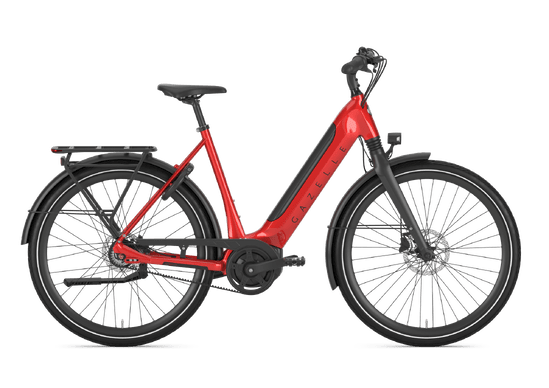

Champion Red Gloss Pine Green Gloss |
|
Fork Suspension |
Mono Integrated |
|
System Model |
Active Line Plus |
|
Motor |
Bosch Smart System Active Line Plus |
|
Engine Position |
Mid |
|
Maximum Speed of Ebike |
25 kph 20 mph |
|
Maximum Torque |
50 N-m |
|
Weight |
24.5 kgs |
|
Maximum Total Weight |
130 kg |
|
Cycling Position |
Active |
|
Frame |
Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
|
Frame Material |
Aluminum |
|
Cockpit Cable |
Integrated |
|
Frame Shape |
Low-Step |
|
Frame Size |
46, 53, 57 |
|
Fork Suspension |
Mono Integrated, Aluminum |
|
Fork Lockout |
No |
|
Front Wheel |
55, Gates |
|
Rear Wheel |
24, Gates |
|
Front and Rear Rim |
Dutch 19 Dutch 19, Double-walled aluminium for extra strong and efficient cycling performance |
|
Front Hub |
Shimano |
|
Rear Hub |
Shimano Nexus 8 |
|
Wheel Size |
28" |
|
Wheels Tire Front Etrto |
50-622 |
|
Front and Rear Tire |
Schwalbe Energizer Plus |
|
Brand Shifters |
Shimano |
|
Number of Gears |
8 |
|
Front Chainwheel |
55 |
|
Gear Type |
Hub |
|
Drivetrain |
Belt |
|
Front Brake Type |
Hydraulic Disc Brake |
|
Brake System Code |
S8 |
|
Front Brake Brand |
Shimano |
|
Primary Rear Brake Model |
BR-MT200 |
|
Front Brake |
Shimano BR-MT200, 180mm |
|
Rear Brake |
Shimano BR-MT200, 160mm |
|
Rear Brake Lever |
BLMT200 |
|
Handlebar |
Gazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort |
|
Stem |
Adjustable |
|
Cockpit Handlebar Grip Brand |
Gazelle |
|
Saddle |
Selle Royal Essenza Plus |
|
Front Light |
Herrmans MR8 |
|
Front Light Lux |
60 |
|
Rear Light |
Spanninga Commuter Glow |
|
Front and Rear Light Energy Source |
Battery |
|
Display |
Bosch Purion 200, Removable |
|
Ebike Walk Assist |
Yes |
|
Type of Display |
LCDc |
|
Lock |
AXA |
|
Kickstand |
Ursus Mooi |
|
Luggage Rack |
Aluminum MIK System Carrier |
|
Maximum Load of Rear Carrier |
27 kg |
Stable Aluminum Frame
The headset is angled 70,5° and the saddle is angled 71,5° for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Efficient, integrated power source
Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.

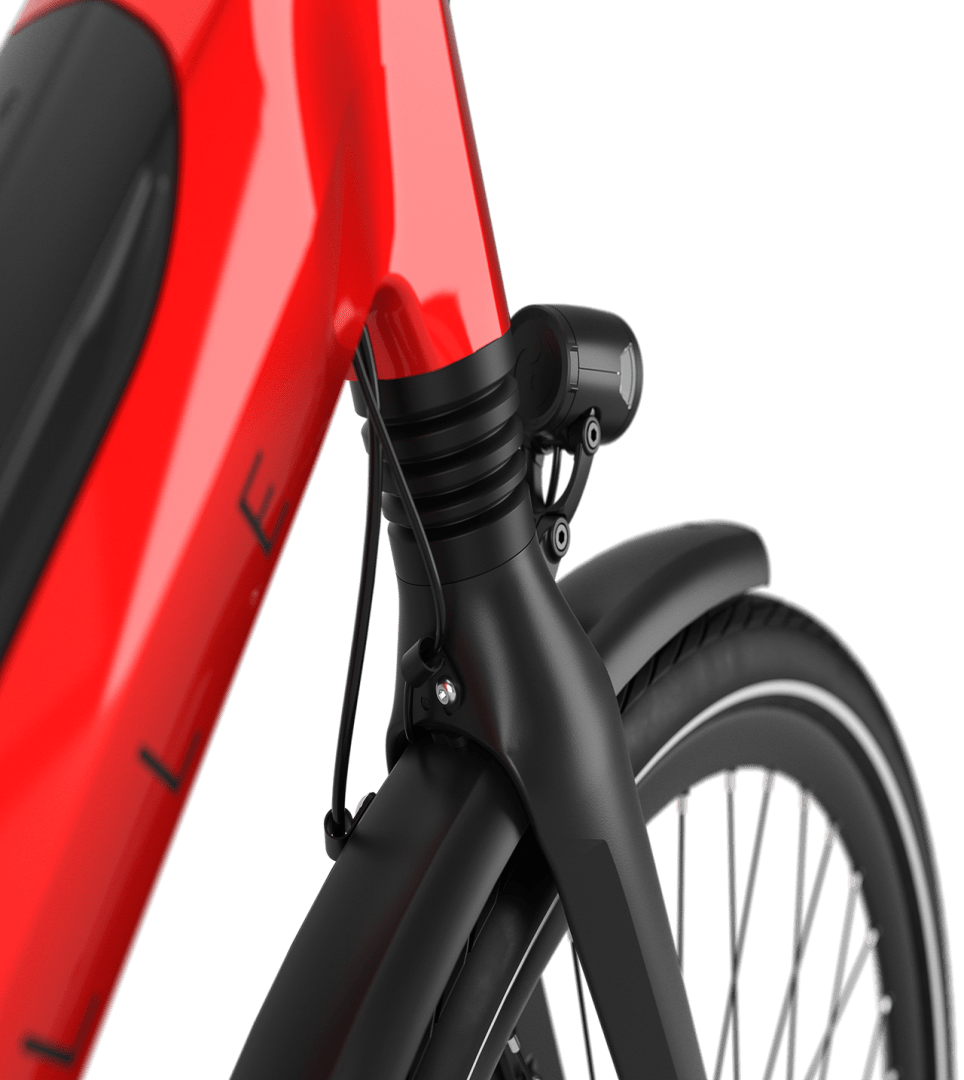

Beautifully Styled Front Fork
Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.
High-Performing Motor
The Bosch motor gives natural and silent assistance. With this, you can handle practically any terrain and arrive comfortably to your destination.
Frequently Asked Questions About Gazelle Ultimate E-Bikes
The Ultimate E-Bike Family from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The E-Bikes from Ultimate Family use the 47-622 (28x1.75) and 50-622 (29x2.0) Schwalbe Energizer Plus tires. The 622mm tires are designed for 700c bike wheels, while Energizer Plus tires are highly reliable because they are durable, lightweight, have a high rotational speed, and have good traction.
The weight limit for Ultimate E-Bikes is roughly 200 lbs.
The Ultimate family of E-Bikes brings sophistication and luxury on the road. These bikes are both comfortable and sporty, perfect for tackling any terrain.
