Gazelle, Ultimate T10
Ultimate T10
"The ebike for long recreational trips"
The Ultimate T10 is perfect for getting out in the great outdoors. Enjoy hills or flat terrain for as long as you want. This sporty bike has an award-winning frame and high-quality finish.
Gazelle Craftsmanship
|
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you. |
|

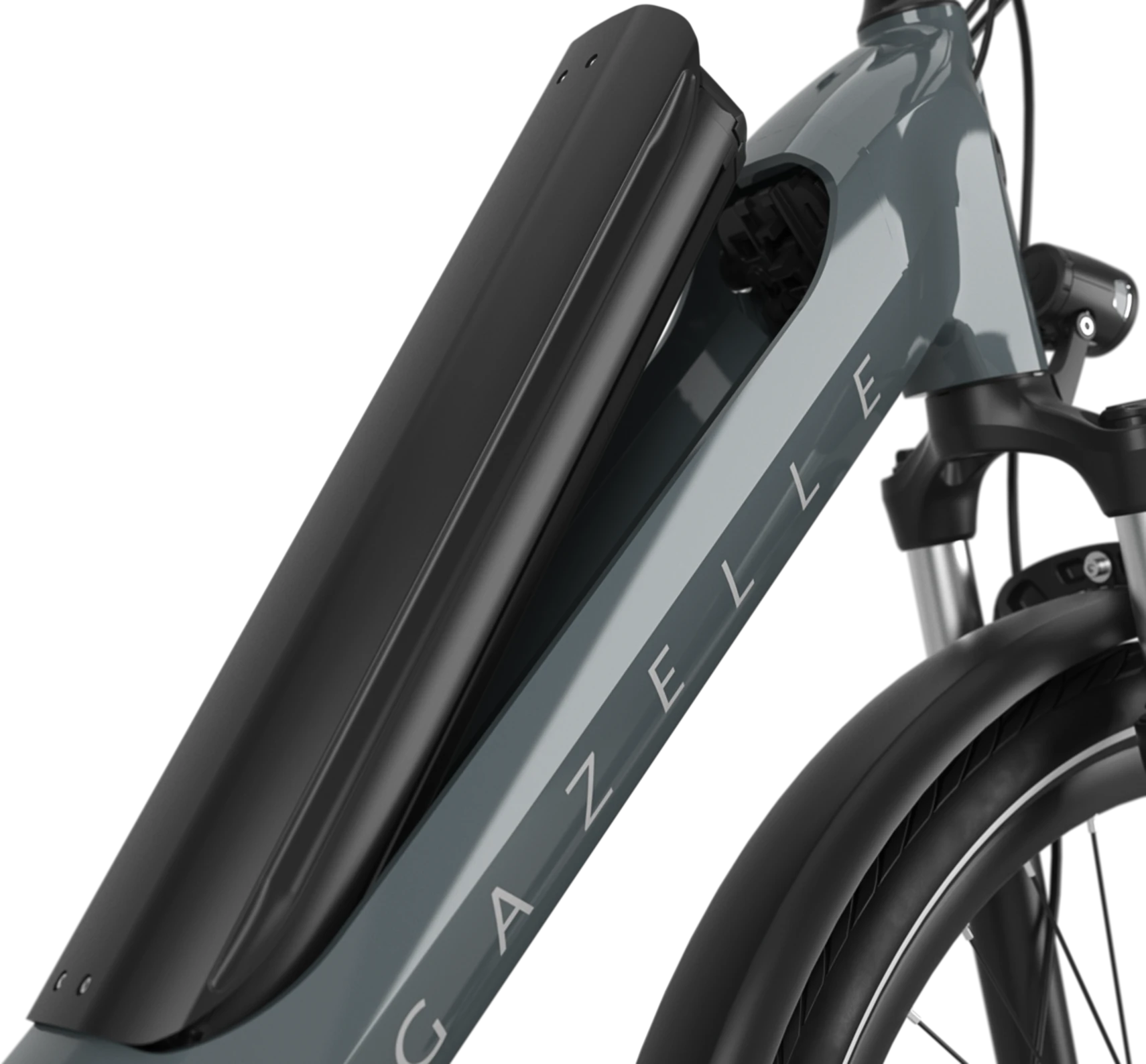

Efficient, integrated power source Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere. |
 |
 |

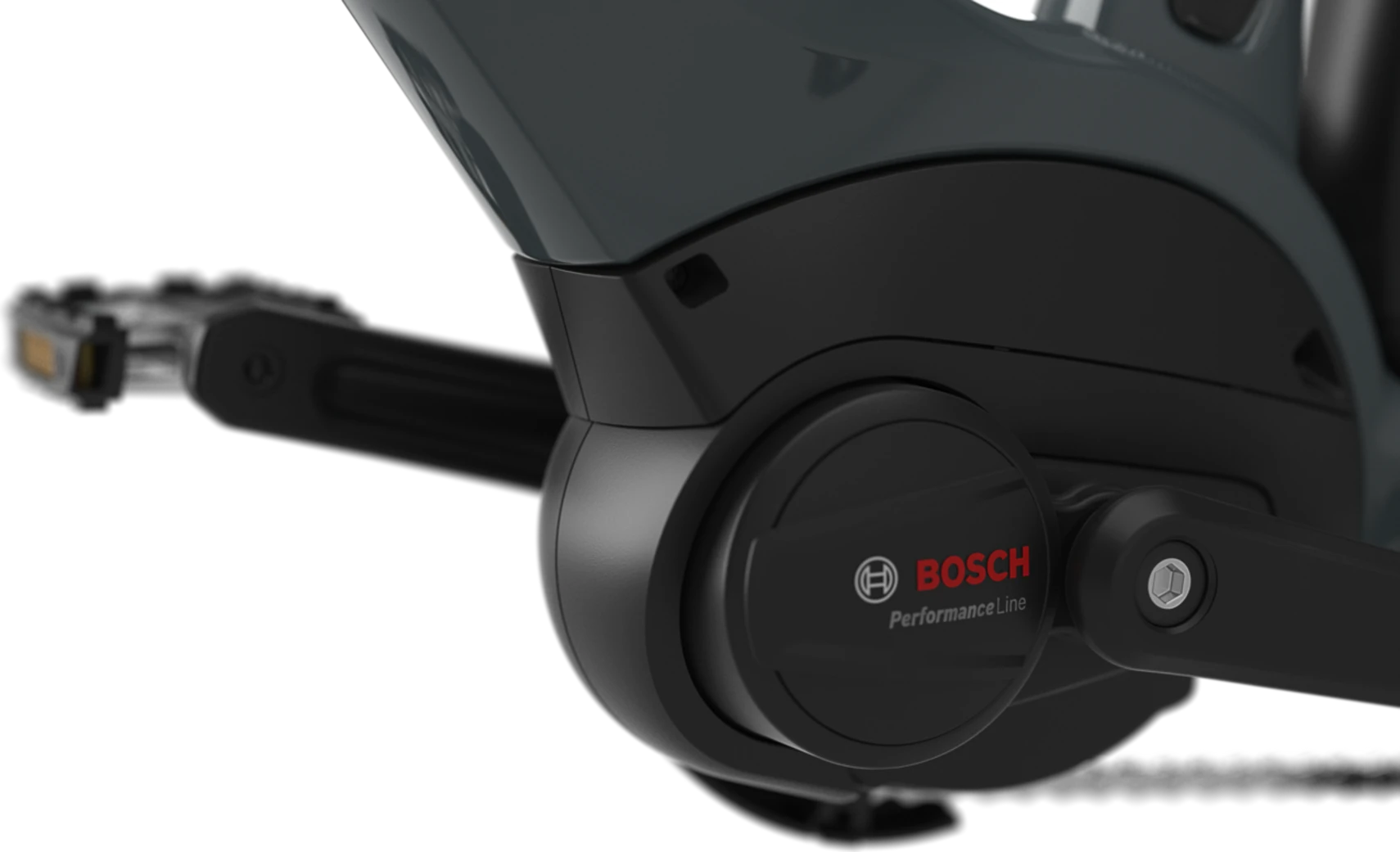

The wind is always at your back with a Bosch Performance Line motor The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist. |
Battery Features
|
Watt-Hours |
625 Wh |
|
Capacity |
16.7 Ah |
|
Battery Charging Time |
4h 54m (4A) |
|
Battery Position |
Integrated in the frame |
|
Brand |
Bosch |
|
Model |
Intube |
|
Voltage |
36V |
|
Eco |
160.9 km |
|
Tour |
96.5 km |
|
Auto |
72.4 km |
|
Turbo |
64.3 km |
Bike Specification
|
Color Options |
Frozen White Gloss Thunder Grey Gloss |
|
Fork Suspension |
Telescope, Spiral Spring |
|
System Model |
Performance Line |
|
Motor |
Bosch Smart System Performance Line |
|
Engine Position |
Mid |
|
Maximum Speed of Ebike |
25 kph 20 mph |
|
Maximum Torque |
75 N-m |
|
Weight |
24.3 kgs |
|
Maximum Total Weight |
130 kg |
|
Cycling Position |
Active |
|
Frame |
Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
|
Frame Material |
Aluminum |
|
Cockpit Cable |
Integrated |
|
Frame Shape |
Low-Step, High-Step |
|
Frame Size |
46, 53, 57 |
|
Fork |
SR Suntour NVX30, Aluminum |
|
Fork Lockout |
Yes |
|
Front and Rear Wheel |
38 |
|
Front and Rear Rim |
Dutch 19 Dutch 19, Double-walled aluminium for extra strong and efficient cycling performance |
|
Front Hub |
Shimano |
|
Rear Hub |
Shimano Deore |
|
Wheel Size |
28" |
|
Wheels Tire Front Etrto |
50-622 |
|
Front and Rear Tire |
Schwalbe Energizer Plus |
|
Brand Shifters |
Shimano |
|
Number of Gears |
10 |
|
Front Chainwheel |
38 |
|
Cassette Range |
11-42 |
|
Gear Type |
Derailleur |
|
Drivetrain |
Chain |
|
Rear Derailleur |
Shimano Deore |
|
Crankset Model |
Delta |
|
Crankset Description |
Miranda Delta |
|
Front Brake Type |
Hydraulic Disc Brake |
|
Brake System Code |
S10 |
|
Front Brake Brand |
Shimano |
|
Primary Rear Brake Model |
BR-MT410 |
|
Front Brake |
Shimano BR-MT420, 180mm |
|
Rear Brake |
Shimano BR-MT410, 160mm |
|
Rear Brake Lever |
BLMT420 |
|
Handlebar |
Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands |
|
Stem |
Adjustable |
|
Cockpit Handlebar Grip Brand |
Ergon |
|
Saddle |
Selle Royal Essenza Plus |
|
Front Light |
Herrmans MR8 |
|
Front Light Lux |
60 |
|
Rear Light |
Spanninga Commuter Glow |
|
Front and Rear Light Energy Source |
Battery |
|
Display |
Bosch Kiox 300, Removable |
|
Ebike Walk Assist |
Yes |
|
Type of Display |
LCDc |
|
Lock |
AXA |
|
Kickstand |
Ursus Mooi |
|
Luggage Rack |
Aluminum MIK System Carrier |
|
Maximum Load of Rear Carrier |
27 kg |
Stable Aluminum Frame
The headset is angled 70,5° and the saddle is angled 71,5° for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Efficient, integrated power source
Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.
Beautifully Styled Front Fork
Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.
High-Performing Motor
The Bosch motor gives natural and silent assistance. With this, you can handle practically any terrain and arrive comfortably to your destination.
Frequently Asked Questions About Gazelle Ultimate E-Bikes
The Ultimate E-Bike Family from Gazelle brings a wide range of models to choose from. Their top speed ranges from 20 mph to 28 mph, which are Classes 1 and 3 e-bikes.
The E-Bikes from Ultimate Family use the 47-622 (28x1.75) and 50-622 (29x2.0) Schwalbe Energizer Plus tires. The 622mm tires are designed for 700c bike wheels, while Energizer Plus tires are highly reliable because they are durable, lightweight, have a high rotational speed, and have good traction.
The weight limit for Ultimate E-Bikes is roughly 200 lbs.
The Ultimate family of E-Bikes brings sophistication and luxury on the road. These bikes are both comfortable and sporty, perfect for tackling any terrain.
